Coolant Outlet Connector

COOLANT OUTLET CONNECTOR

REMOVAL

WARNING: DO NOT REMOVE PRESSURE CAP WITH THE SYSTEM HOT AND UNDER PRESSURE BECAUSE SERIOUS BURNS FROM COOLANT CAN OCCUR.

1. Drain cooling system.

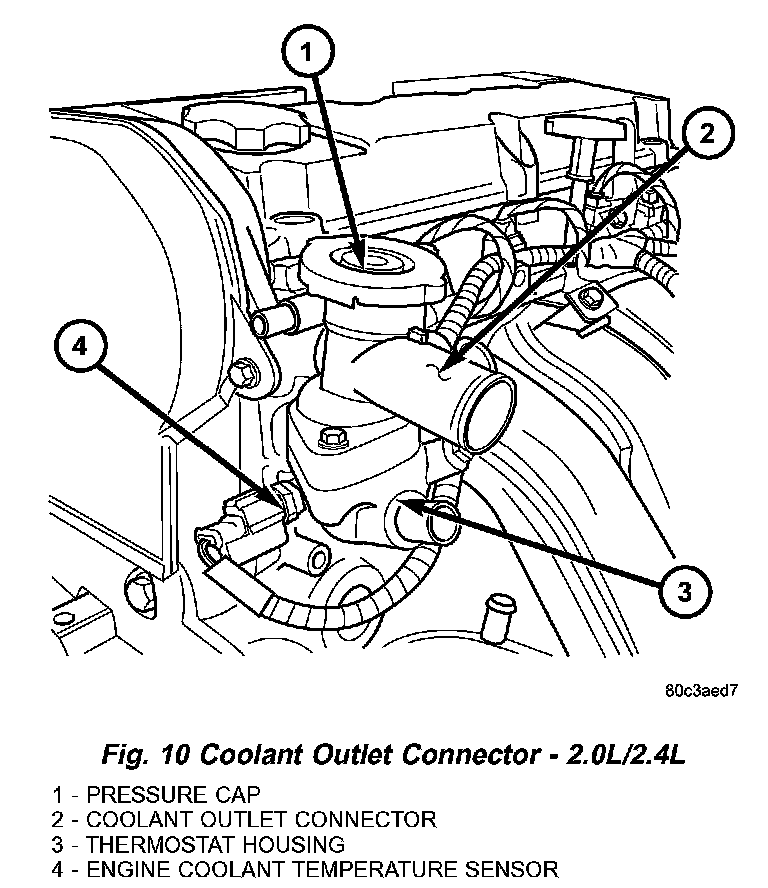

Fig. 10 Coolant Outlet Connector - 2.0/2.4L:

2. Remove pressure cap.
3. Disconnect hoses at coolant outlet connector.
4. Remove bolts attaching coolant outlet connector.
5. Remove coolant outlet connector.

INSTALLATION
1. Clean sealing surfaces. Inspect gaskets for tears and cuts. Replace as necessary.
2. Install coolant outlet connector and tighten bolts to 12 Nm (105 in. lbs.) .
3. Connect hoses at coolant outlet connector.
