Air Injection

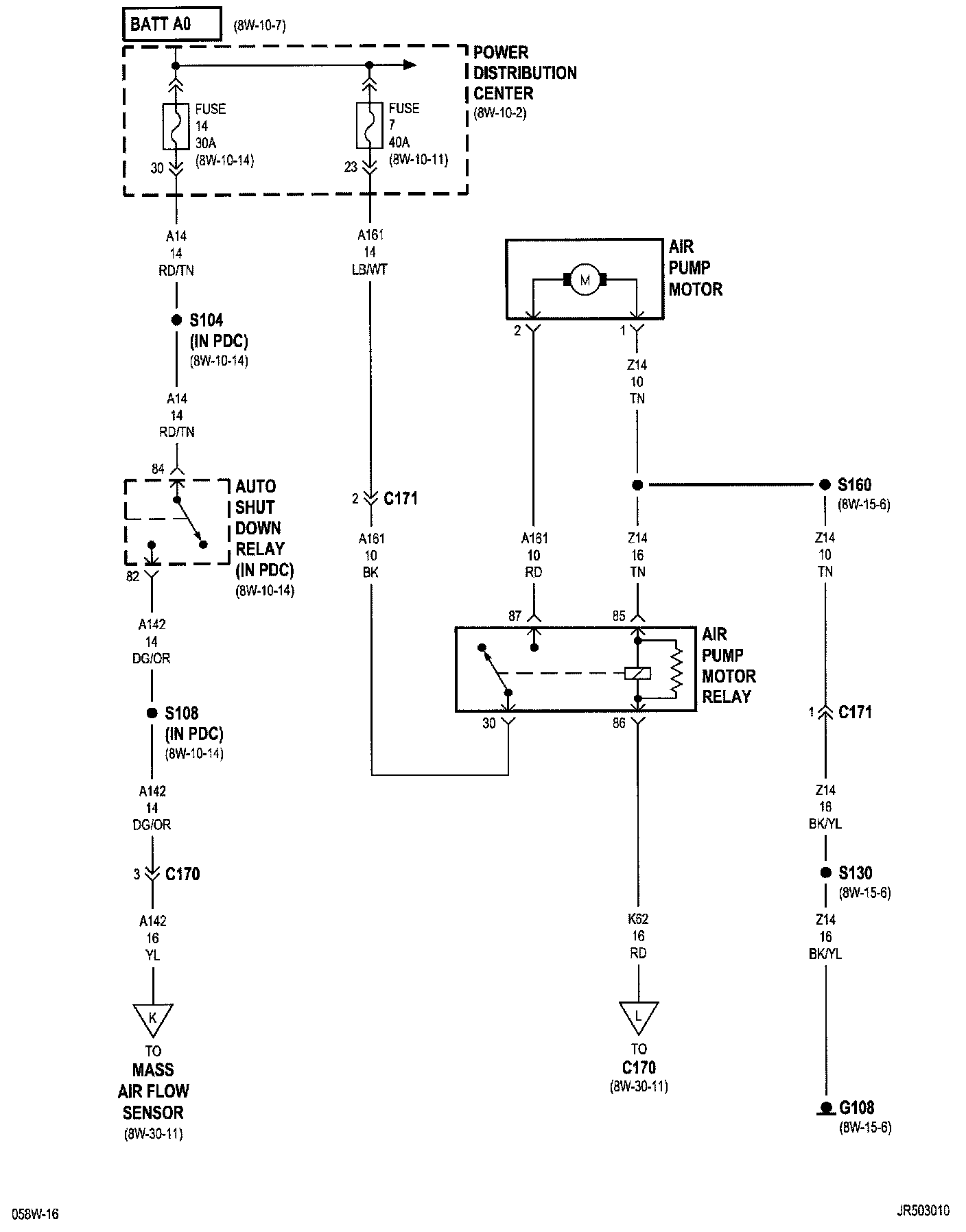

8w-30-10 (2.4L PZEV) VIN J:

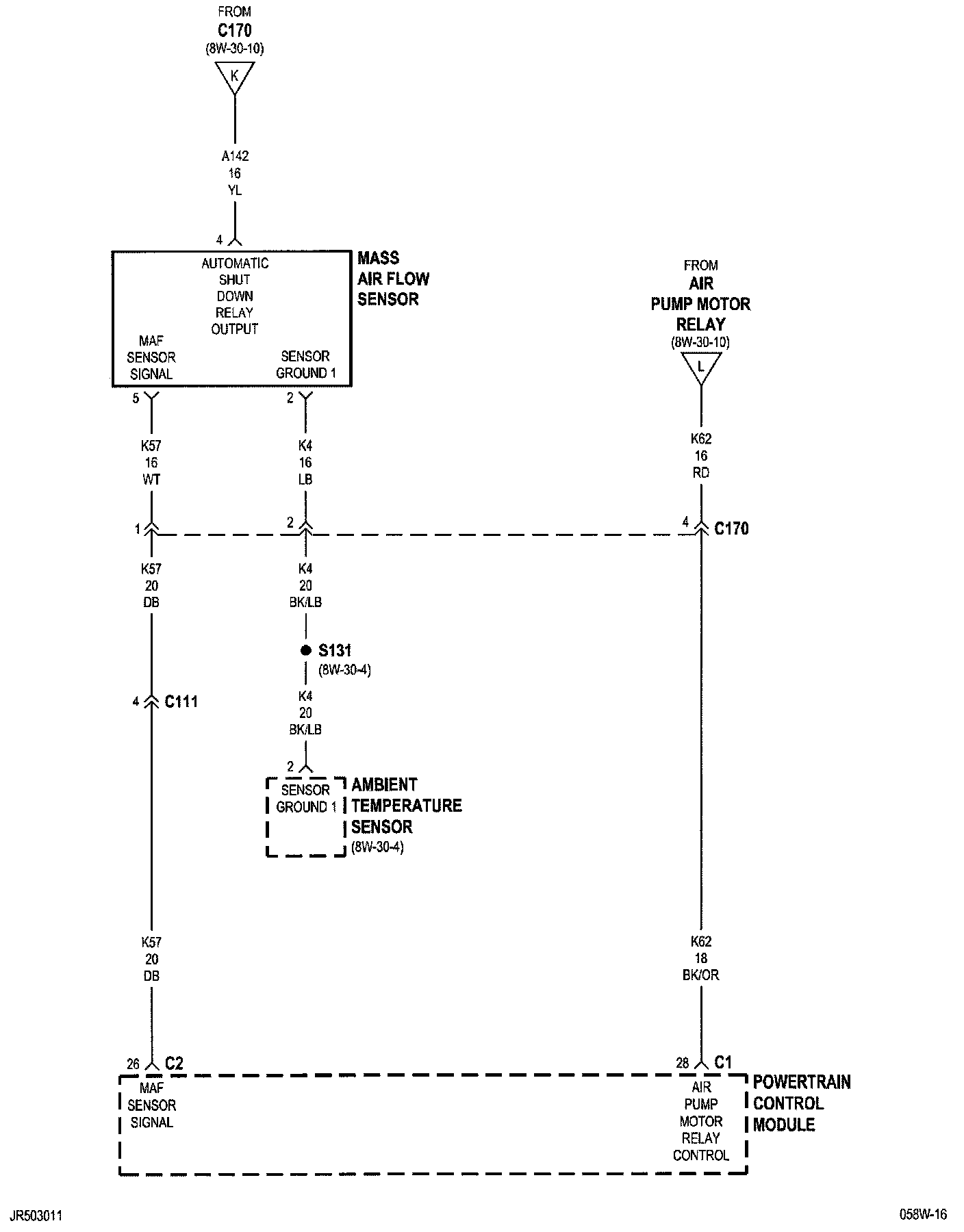

8w-30-11 (2.4L PZEV):







Partial Zero Emission Vehicle (PZEV).
Application for the PZEV 2.4L VIN J only.
