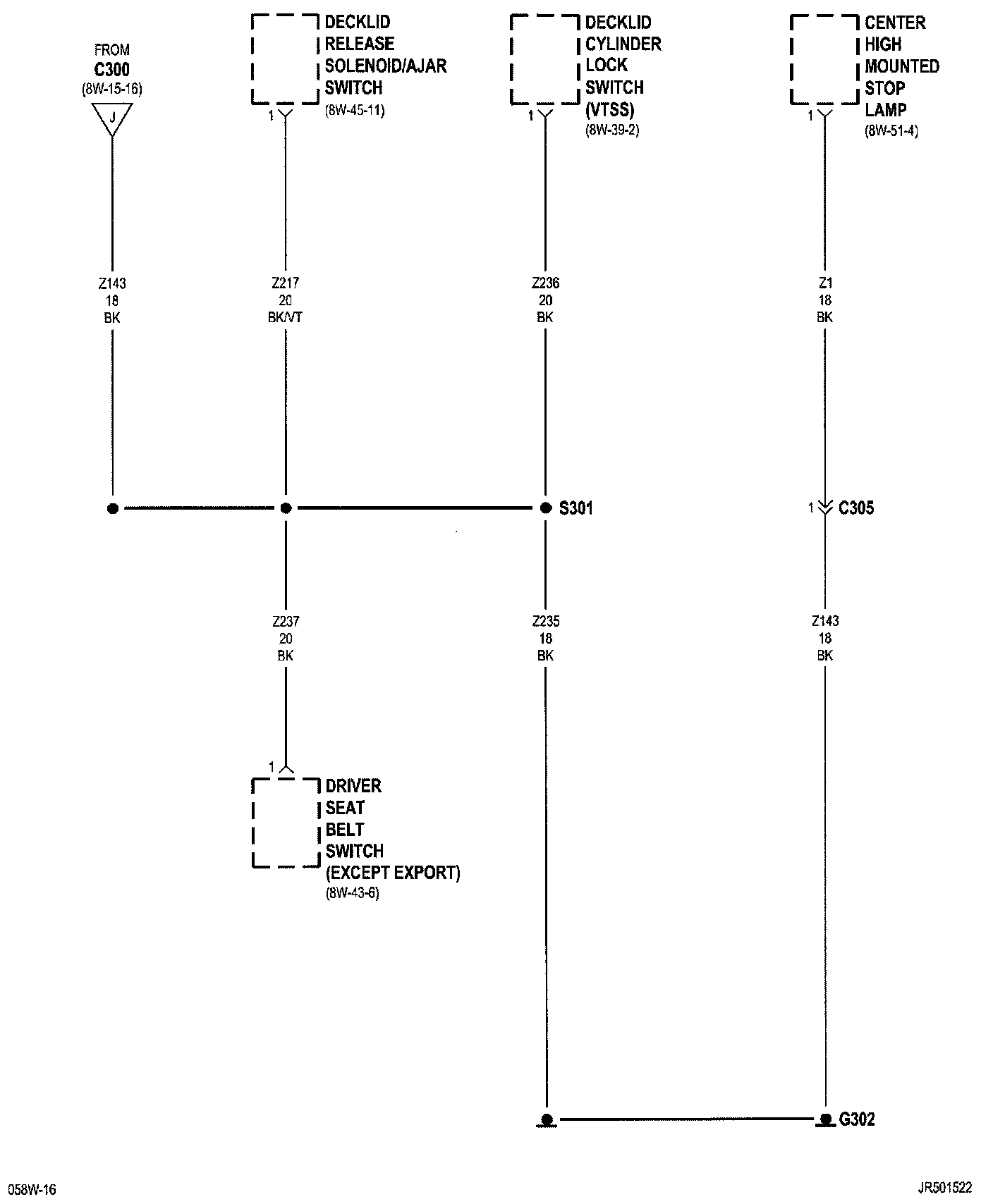

Group 8W-15 (Ground Distribution)

8w-15-2:



8w-15-3:



8w-15-4:



8w-15-5:



8w-15-6:



8w-15-7:



8w-15-8:



8w-15-9:



8w-15-10 (JR27):



8w-15-11 (JR27):



8w-15-12 (JR27):



8w-15-13 (JR27):



8w-15-14 (JR27):



8w-15-22:
