Home >> Chrysler >> 2005 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Clockspring Assembly / Spiral Cable, Air Bag

Clockspring Assembly / Spiral Cable, Air Bag

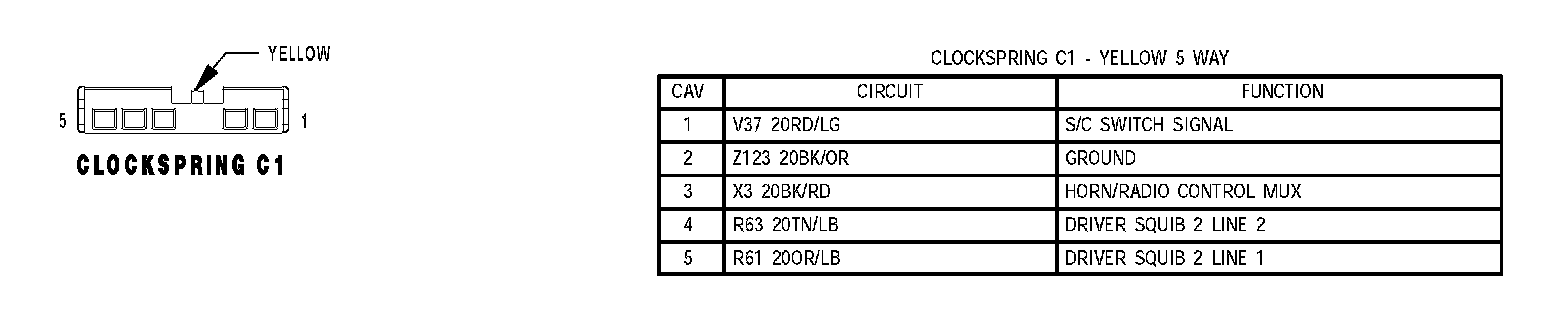

Clockspring C1:

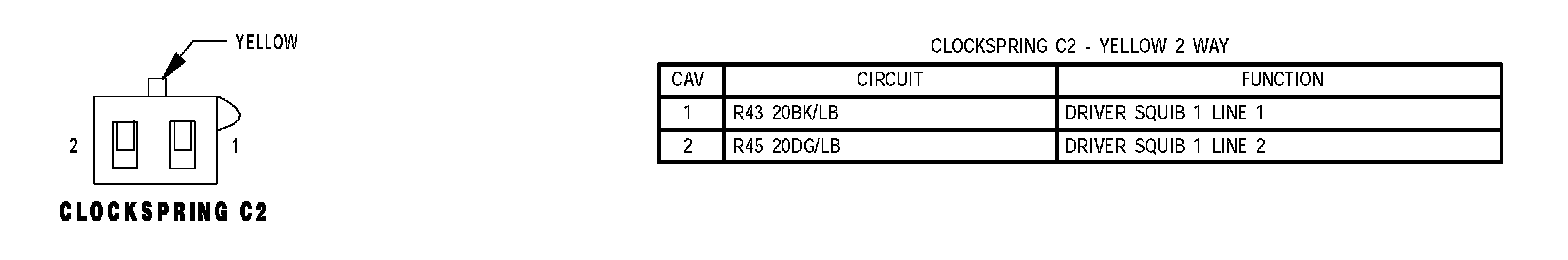

Clockspring C2:

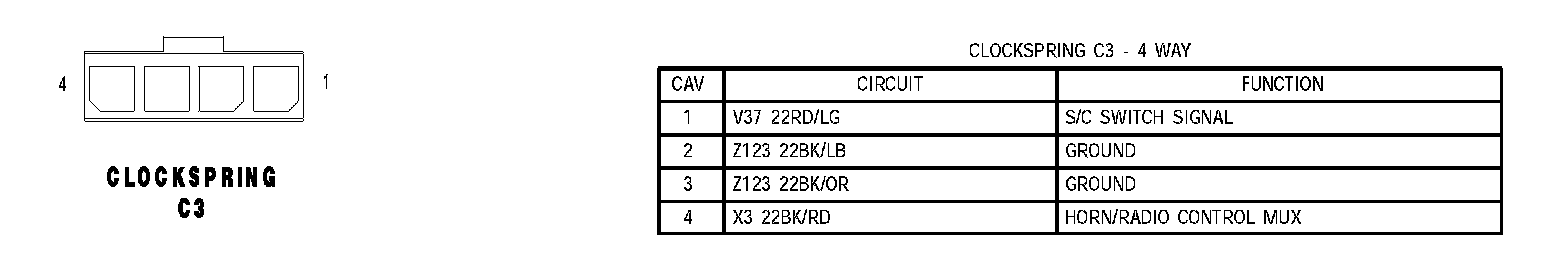

Clockspring C3:
