Chrysler
>>
2005
>>
Sebring Convertible L4-2.4L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C303 - C310
>>

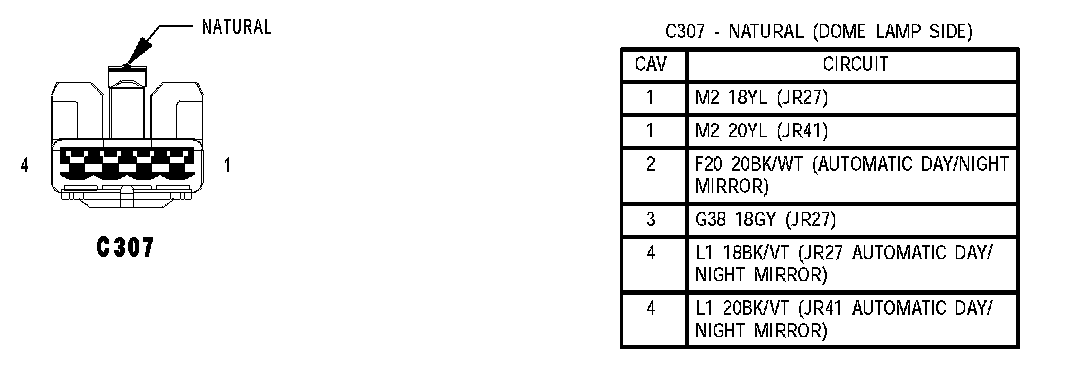

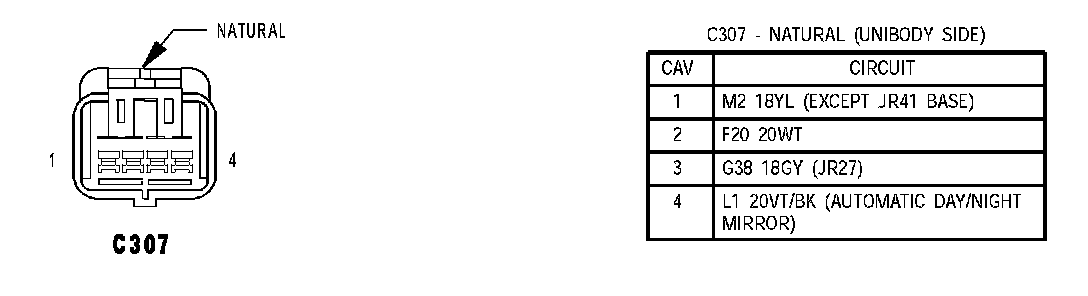

C307
C307
C307:
C307:
