Sebring Convertible L4-2.4L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C300
>>
C170
C170

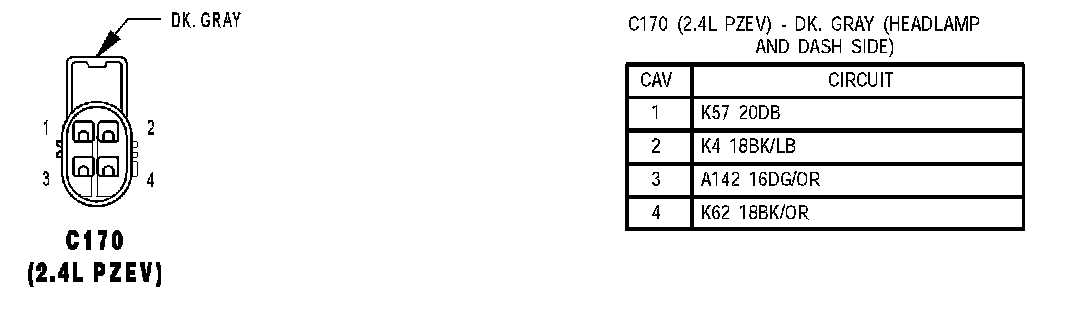

C170 (2.4L PZEV):

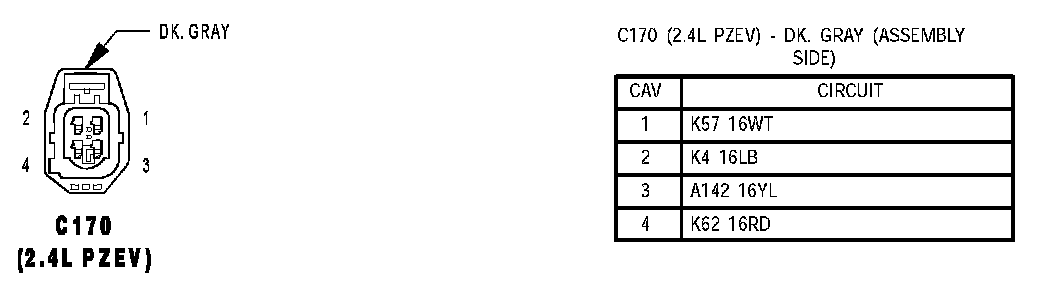

C170 (2.4L PZEV):
