Blower Motor

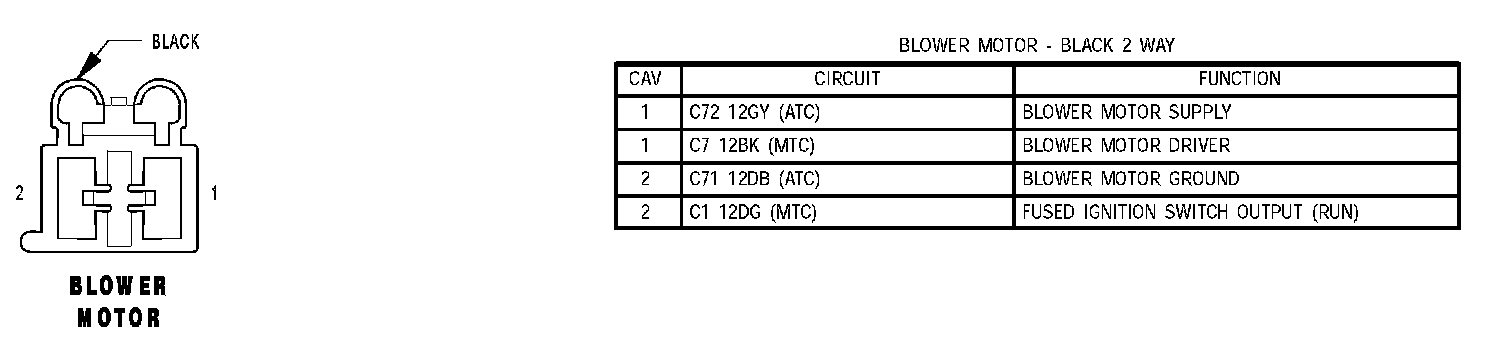

Blower Motor:



Blower Motor Power Module C1 (ATC):

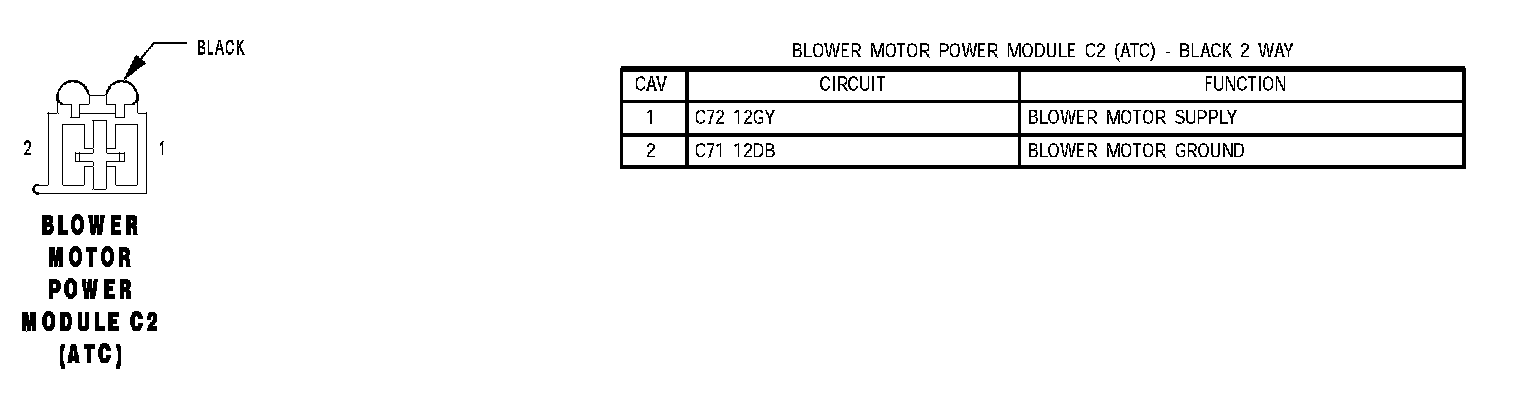

Blower Motor Power Module C2 (ATC):
