Door Sill Trim Panel

DOOR SILL TRIM PANEL

REMOVAL

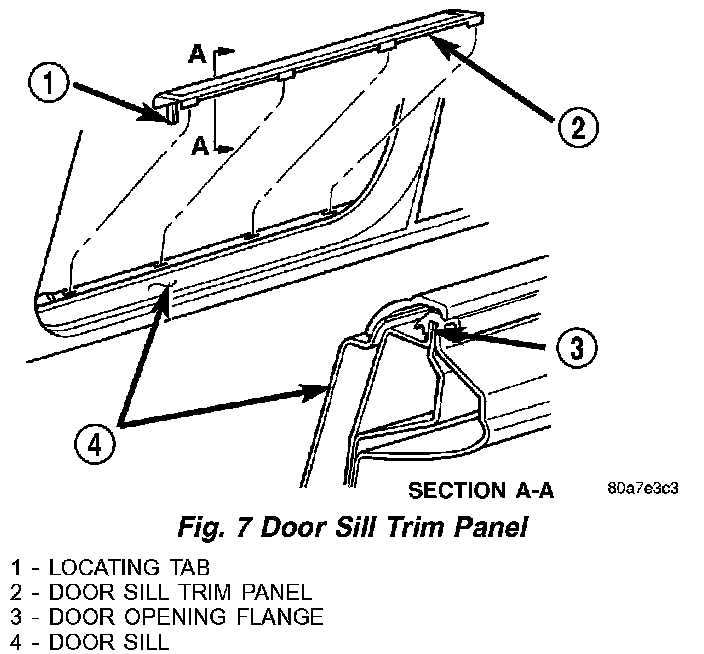

Fig. 7:

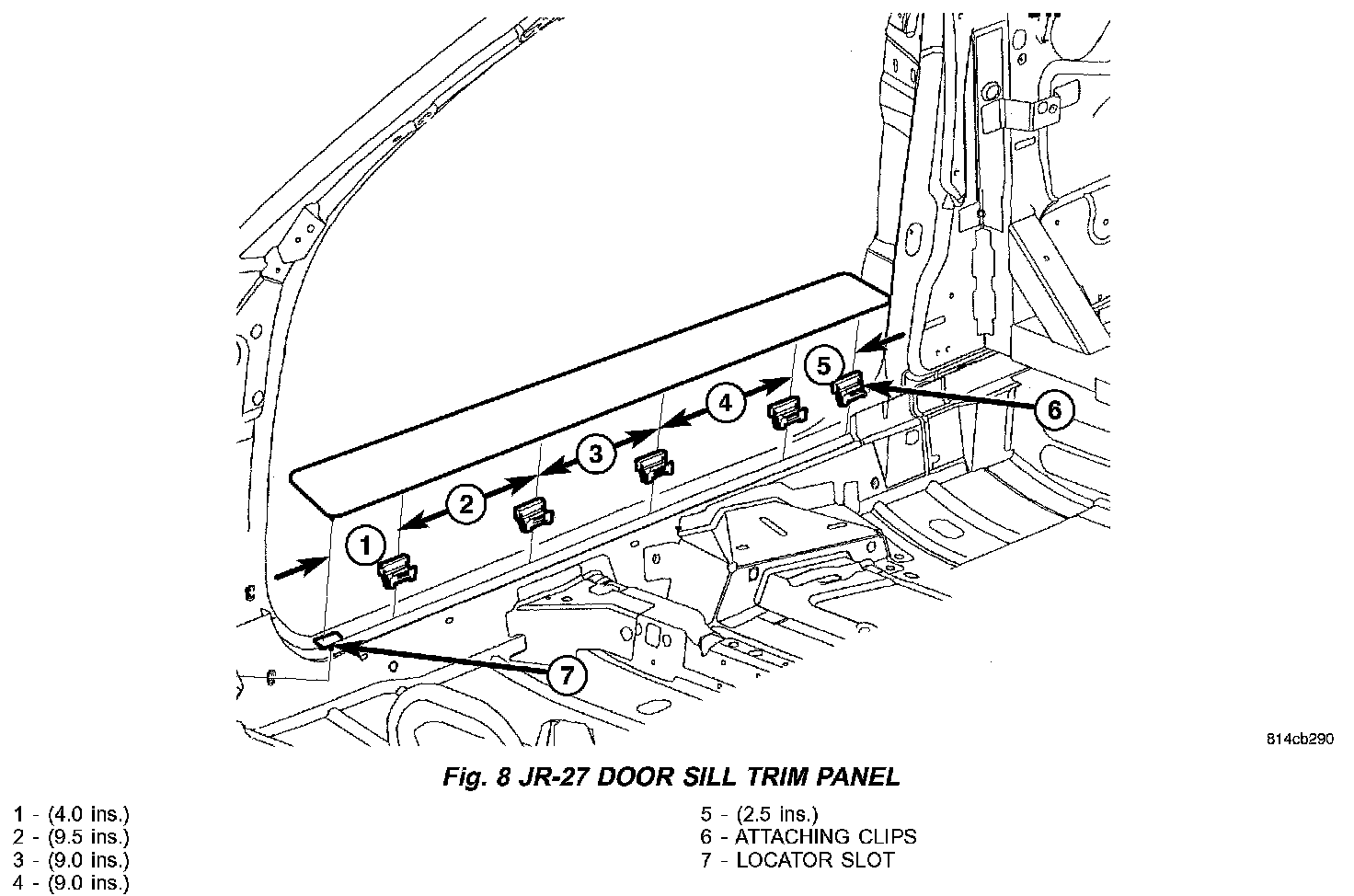

Fig. 8:

1. Using a fork type prying tool, disengage clips holding door sill trim panel to door sill (Fig. 7) and (Fig. 8).
2. Starting at forward end of sill trim panel, pull upward on sill trim panel in order to disengage clips attaching sill trim panel to door opening flange.
3. Remove door sill trim panel from vehicle.

INSTALLATION

Fig. 10:

1. JR-27 (Convertible), place the attaching sill clips in position as show in (Fig. 10).

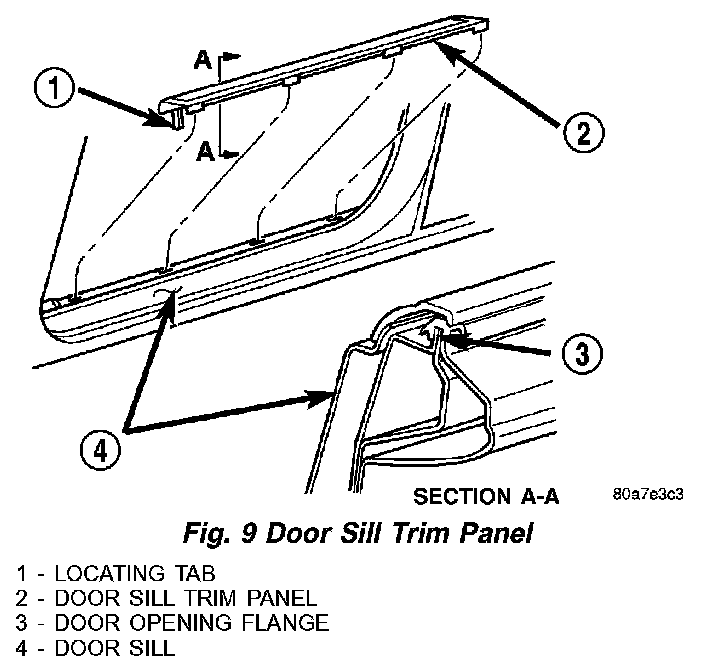

Fig. 9:

2. Place door sill trim panel into position (Fig. 9).
3. Align locator tab to the locator slot in door sill.

NOTE: Check that header/A-pillar and quarter panel weatherstrips are properly positioned. Incorrect positioning will interfere with clip engagement to door opening flange and damage door sill trim panel.

4. Pushing downward on sill trim panel to engage tabs and attaching clips to the door sill.
