Right Side Impact Sensor Internal 1

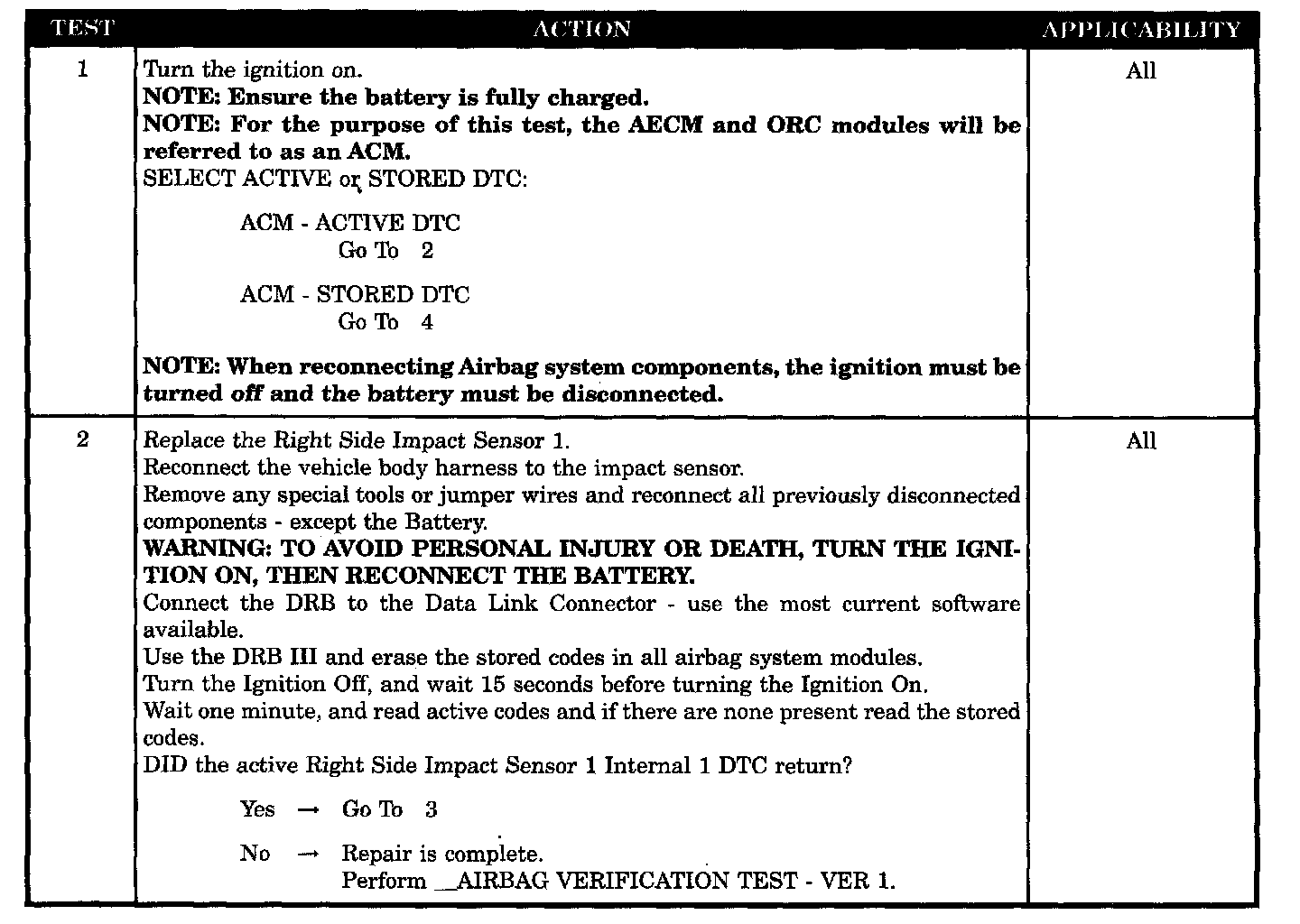

Test 1 - 2:

Test 3 - 4:

SYMPTOM
RIGHT SIDE IMPACT SENSOR INTERNAL 1

WHEN MONITORED
At ignition on, the Right Side Impact Sensor 1 is equipped with onboard diagnostics to monitor the sensors internal circuits. If a problem is identified the sensor sends the Right Side Impact Sensor 1 internal 1 message to the ACM.

SET CONDITION
The code will set, if the ACM receives an Impact Sensor Internal 1 message from the Right Side Impact Sensor 1.

POSSIBLE CAUSES
- ACM, right side impact sensor 1
- Repair is complete
- Stored code or intermittent condition
- Active code present
