Passenger Squib 1 Shorted to Ground

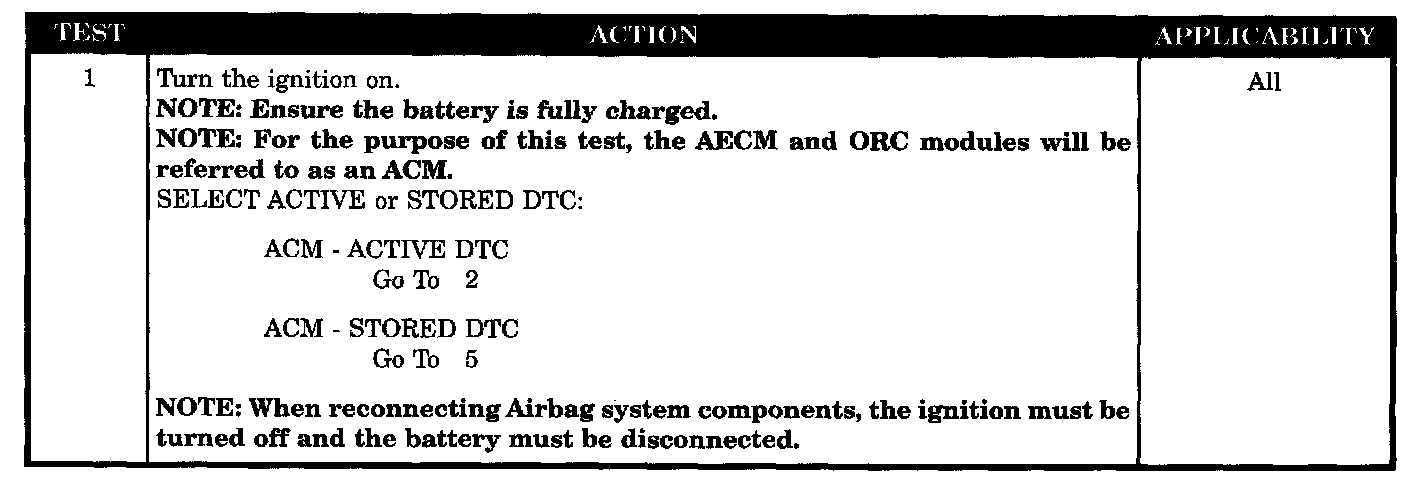

Test 1:

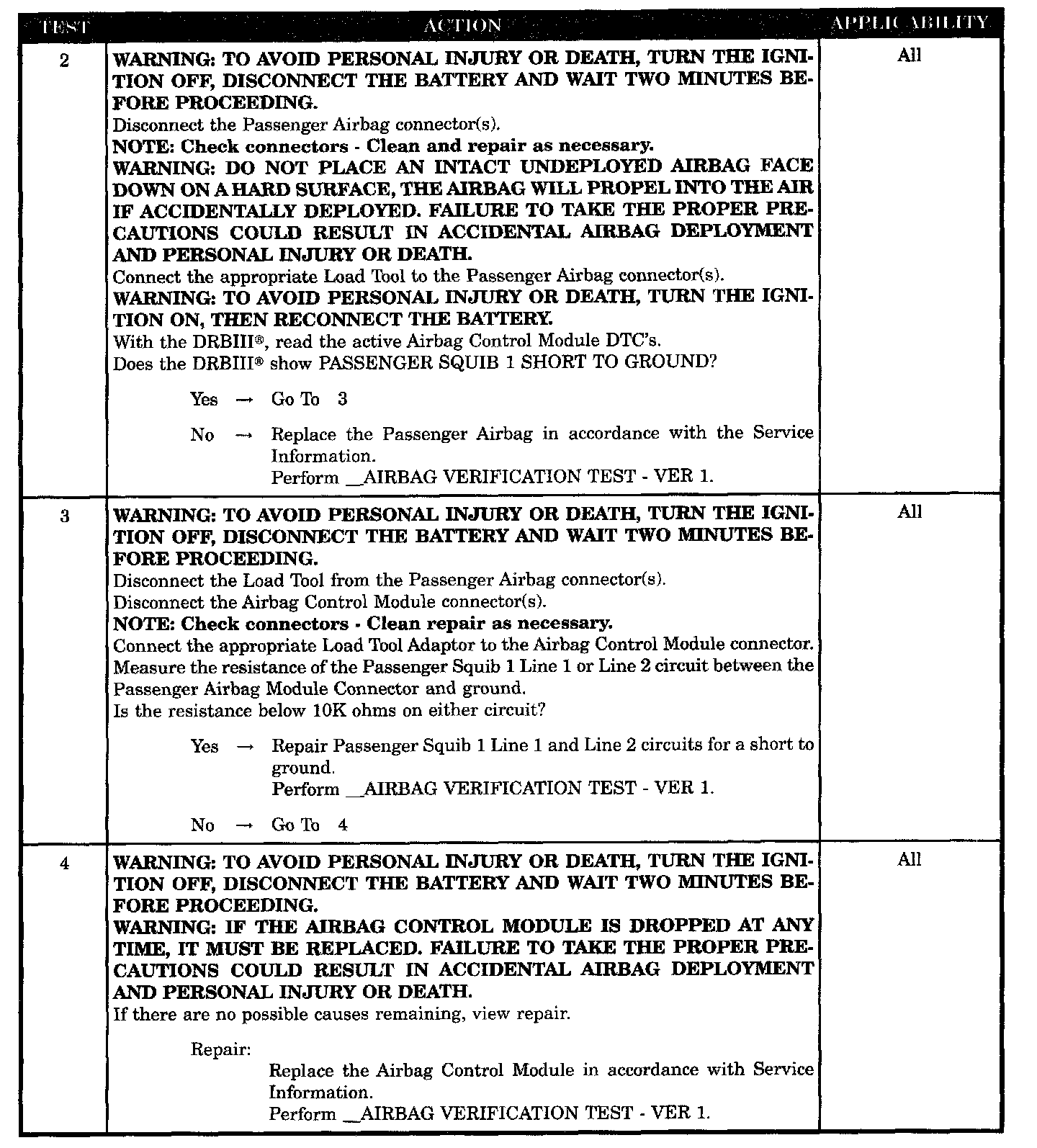

Test 2 - 4:

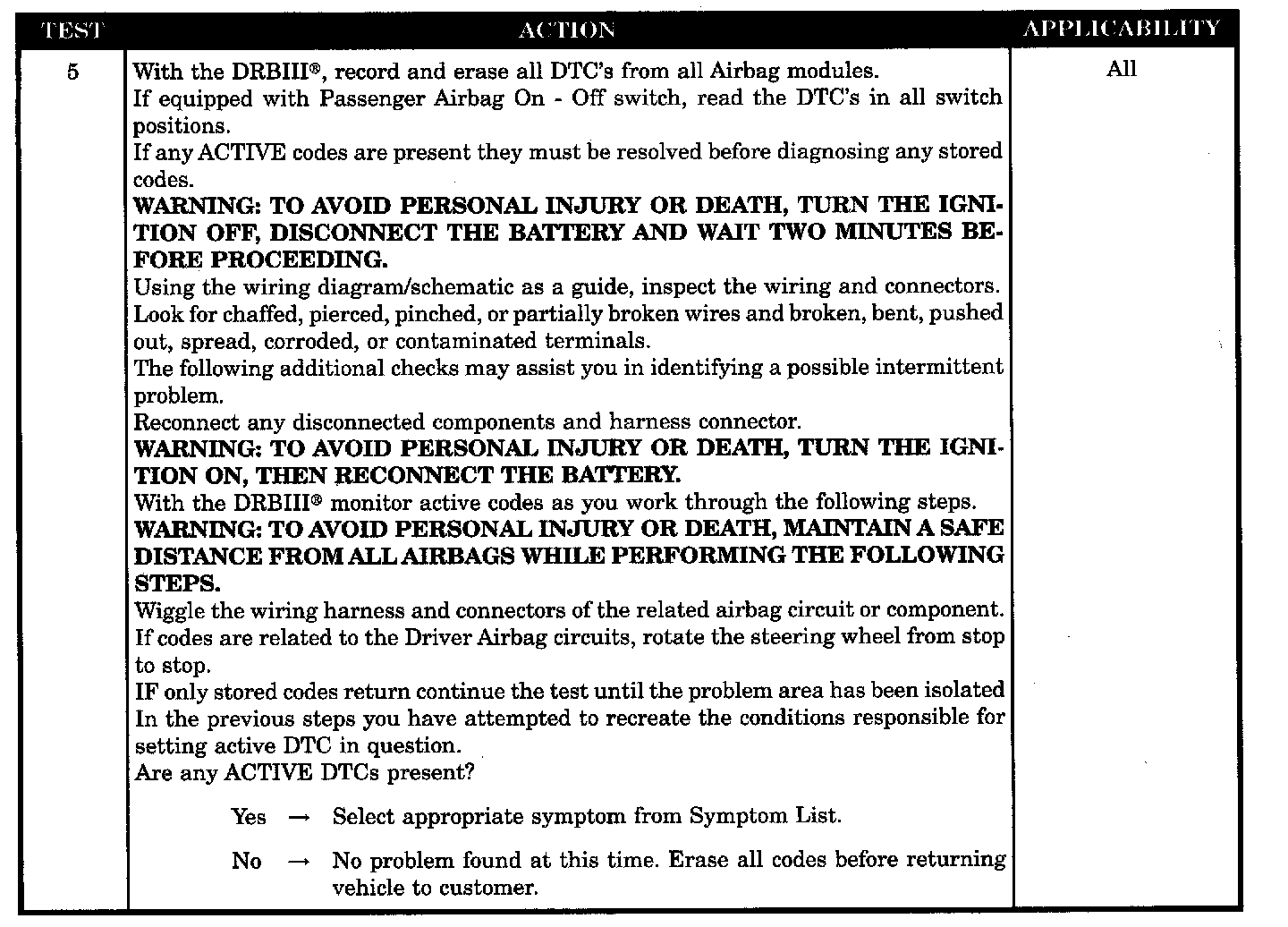

Test 5:

SYMPTOM
PASSENGER SQUIB 1 SHORT TO GROUND

WHEN MONITORED
With the ignition on, the ACM monitors the resistance of the Passenger Squib 1 circuits.

SET CONDITION
When the ACM detects a short to ground in either Passenger Squib 1 circuits.

POSSIBLE CAUSES
- PAB squib 1 circuits short to ground
- PAB squib 1 line 1 or line 2 short to ground
- ACM, PAB squib 1 short to ground
- Stored code or intermittent condition
- Active code present
