Front Bumper Cover / Fascia: Service and Repair

FRONT FASCIA

REMOVAL

1. Raise and support the vehicle.

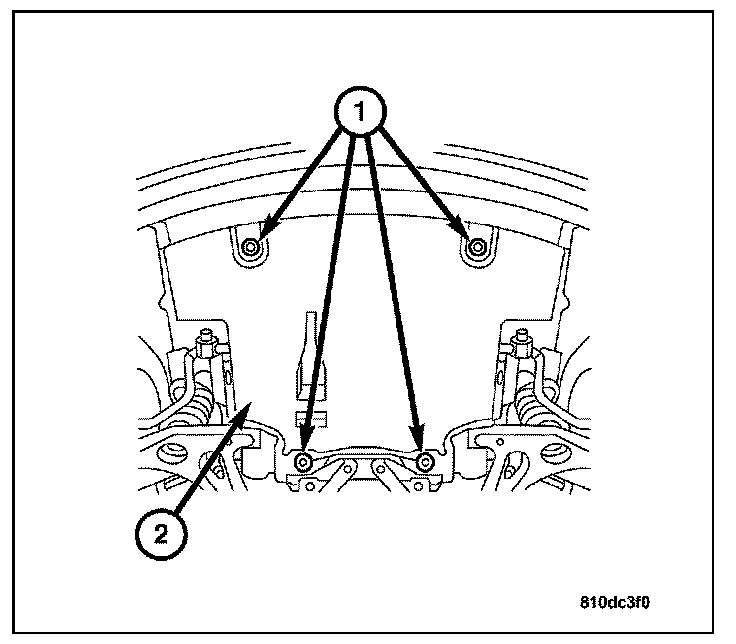

2. Remove the lower splash shield retaining screws (1) and the lower splash shield (2).

NOTE: Left side shown, right side similar.

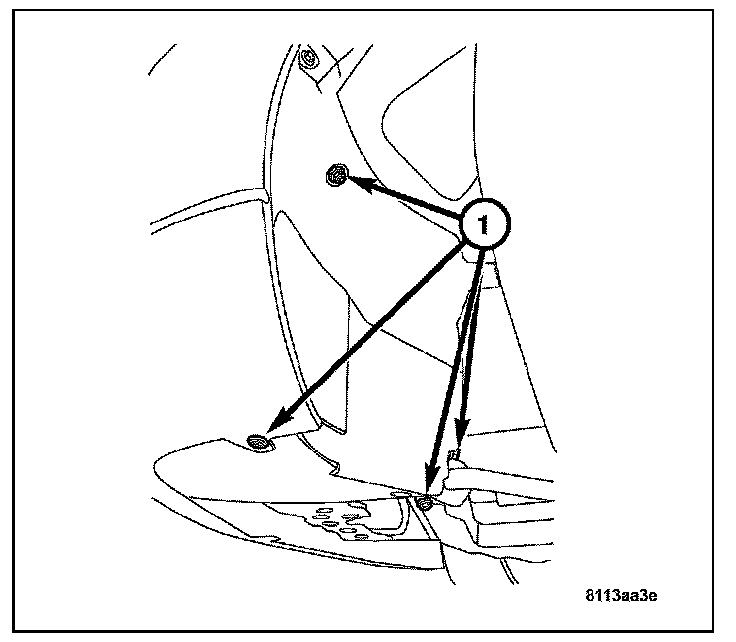

3. Remove the left and right front fascia access panel retaining nuts and screws (1).
4. Remove access panels from the vehicle.




5. Disconnect the fog lamp wire harness connectors (1).




6. Disconnect the ambient air temperature sensor wire harness connector (2).

NOTE: The front marker lamp harness connector can be reached through the access hole in the inner fender well.




7. Disconnect the front marker lamp wire harness connectors (1).




8. Remove the lower fascia retaining nuts (1).
9. Remove the left and right front fender to fascia retaining nuts and bolts.
10. Lower the vehicle.




11. Remove the front grille assembly retaining bolts (1).




12. Remove the upper fascia retaining bolts (1).
13. Remove the fascia from the vehicle.

INSTALLATION




1. Position the fascia on the vehicle and install the upper facia retaining bolts (1).




2. Position the front grille assembly and install the retaining bolts (1).
3. Raise and support the vehicle.
4. Install the left and right front fender to fascia retaining nuts and bolts.




5. Install the lower fascia retaining nuts (1).
6. Connect the ambient air temp sensor wire harness connector (2).




7. Connect the front marker lamp wire harness connector (1).




8. Connect the fog lamp wire harness connectors (1).




9. Install the left and right front fascia access panel retaining nuts and screws (1).




10. Install the lower splash shield and the retaining screws (1).
