Wiper and Washer Systems: Testing and Inspection: Diagnosis and Testing

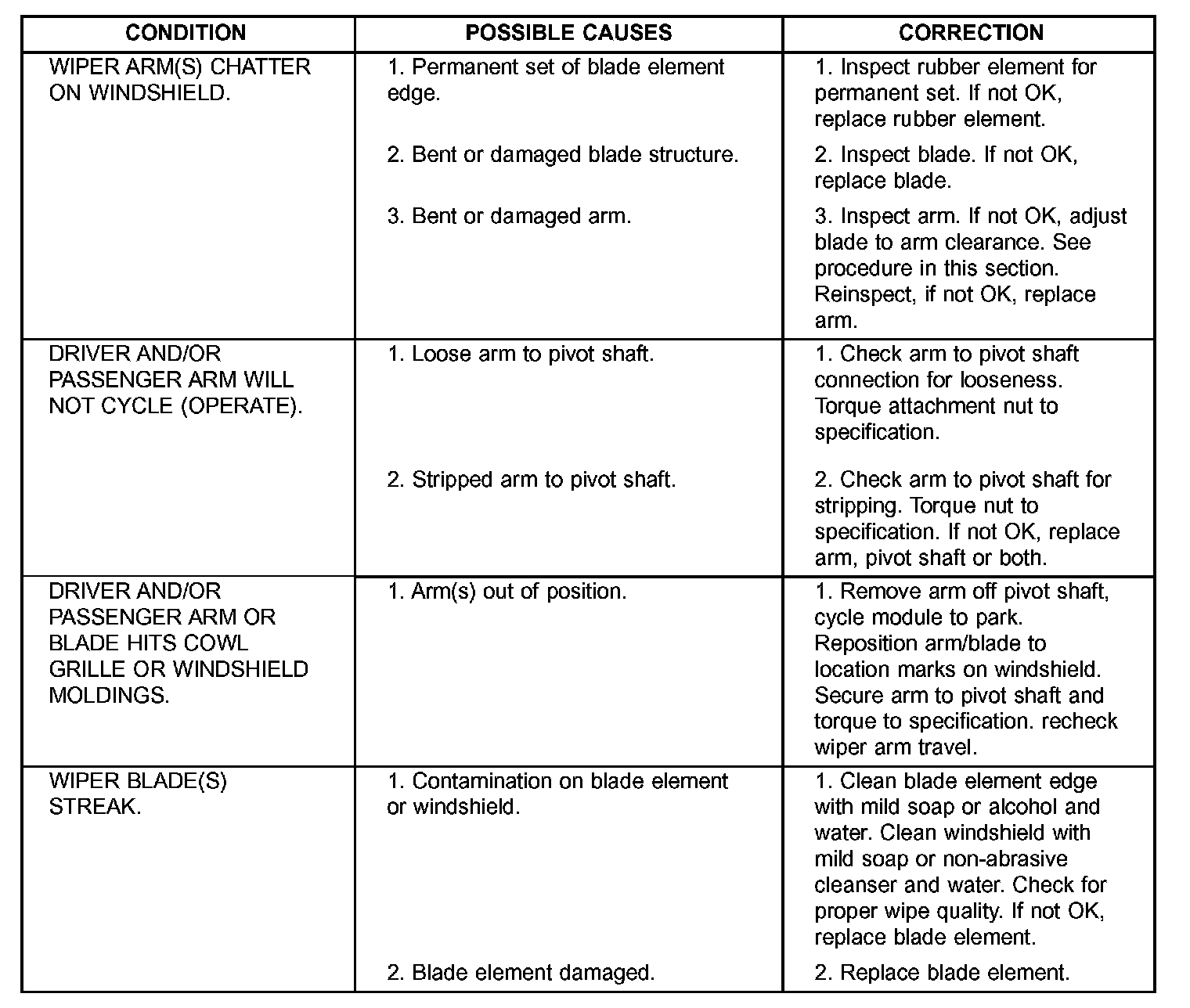

Wiper System Diagnosis:

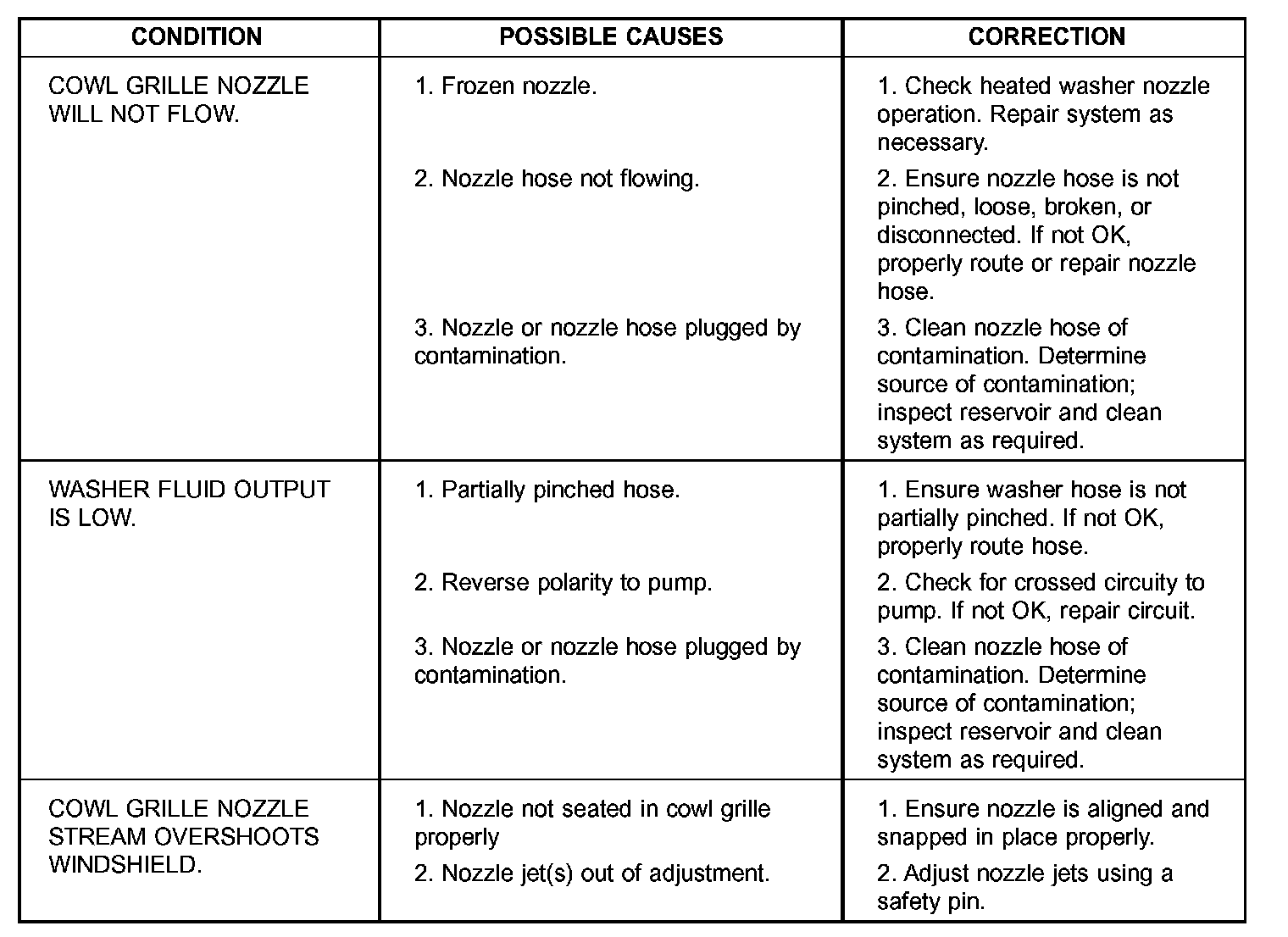

Washer System Diagnosis:

WINDSHIELD WIPER/WASHER SYSTEM
Whenever a windshield wiper or washer system malfunction occurs, disconnect the harness connections and clean the terminals. Ensure the wire harness is properly connected before starting diagnosis and repair procedures.
