Shifter M/T: Service and Repair

GEAR SHIFT LEVER HANDLE

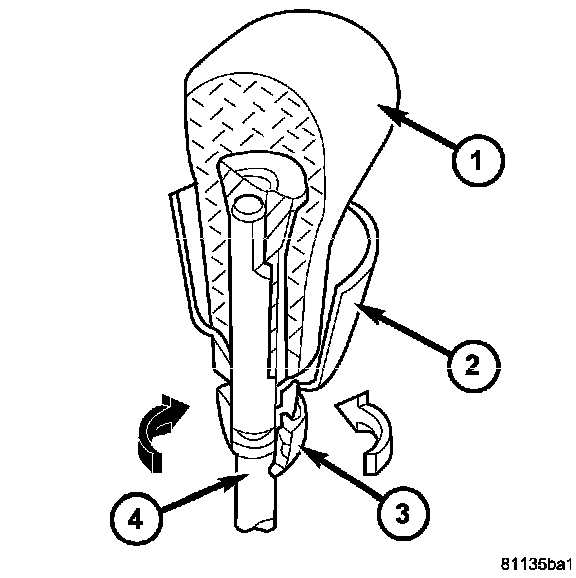

REMOVAL





1. Lift the shift boot (2) to expose the retainer nut (3).
2. Rotate the retainer nut (3) clockwise and down to remove the shift handle (1).
3. Pull straight up on the handle (1).

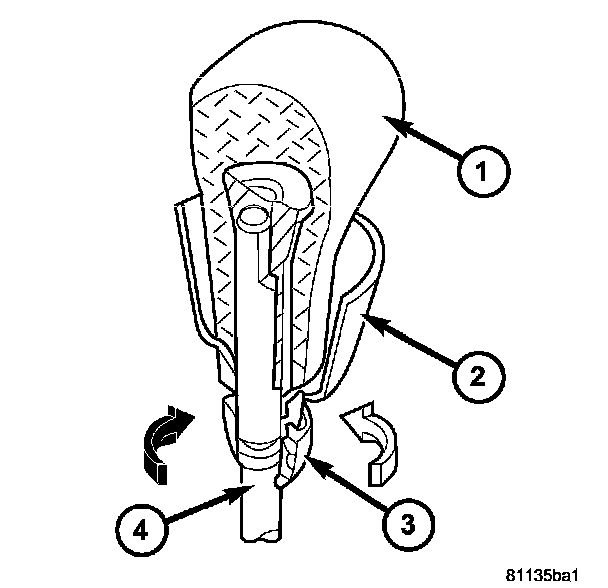

INSTALLATION





1. Install the shift handle (1) on the shift rod (4).
2. Tighten the retainer nut (3) counterclockwise (upward) until it is snug.
3. Push the shifter cover (2) down over the retainer and shift rod (4).
