Home >> Chrysler >> 2005 >> Crossfire SRT-6 V6-3.2L SC VIN N >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Description and Operation >> Mainshaft W/Input Shaft

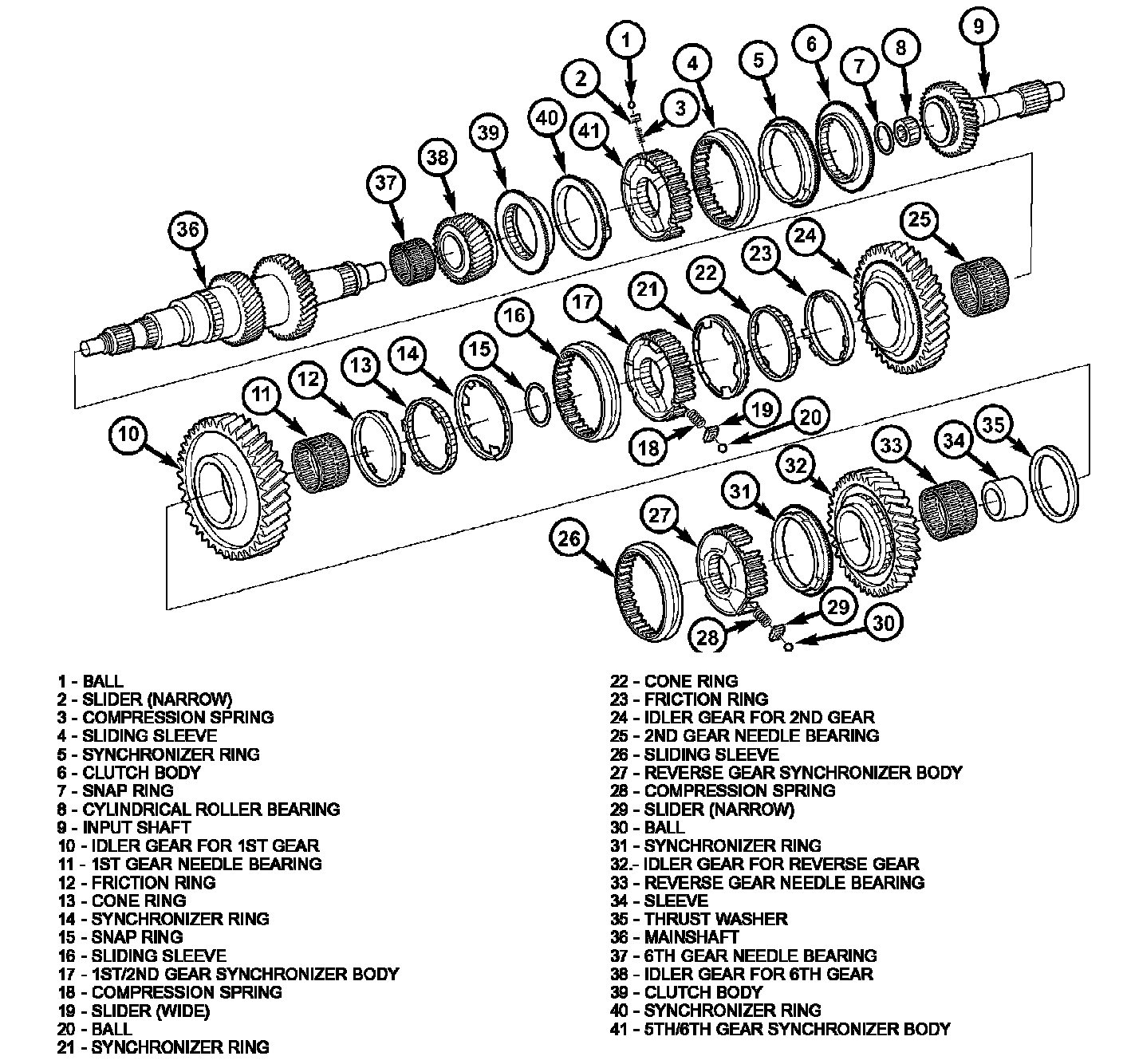

Mainshaft W/Input Shaft

MAINSHAFT W/INPUT SHAFT





DESCRIPTION
