Freewheeling Clutch

FREEWHEELING CLUTCH

DISASSEMBLY

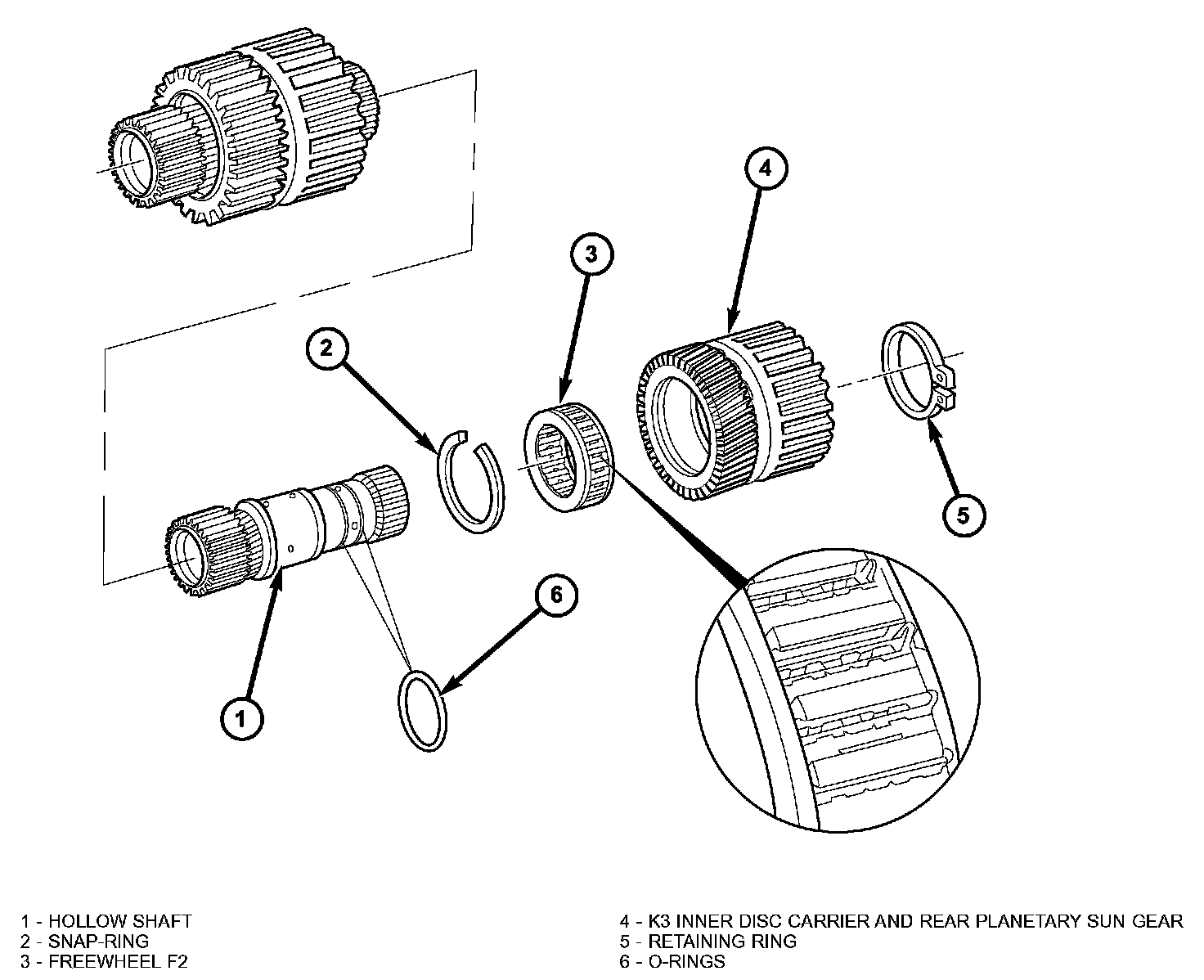

1. Remove the retaining ring (5) from the hollow shaft (1).
2. Remove the K3 inner disc carrier and rear planetary sun gear (4) with the K3 internally toothed disk carrier and the rear freewheel F2 (3).
3. Remove the snap-ring (2) for freewheel.
4. Press the freewheel out of the K3 inner disc carrier and rear planetary sun gear (4).
5. Check the O-rings (6), replace if necessary.

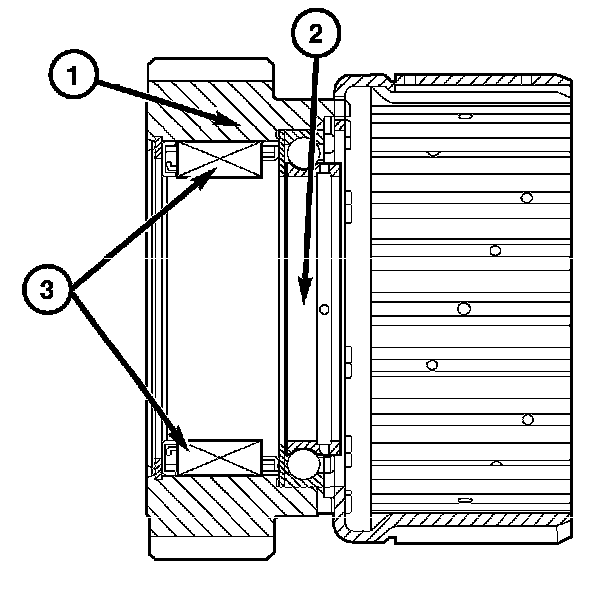

6. Check the anti-friction bearing (2) in the K3 inner disc carrier and rear planetary sun gear for damage. Replace as necessary.
