Driving Clutch K2

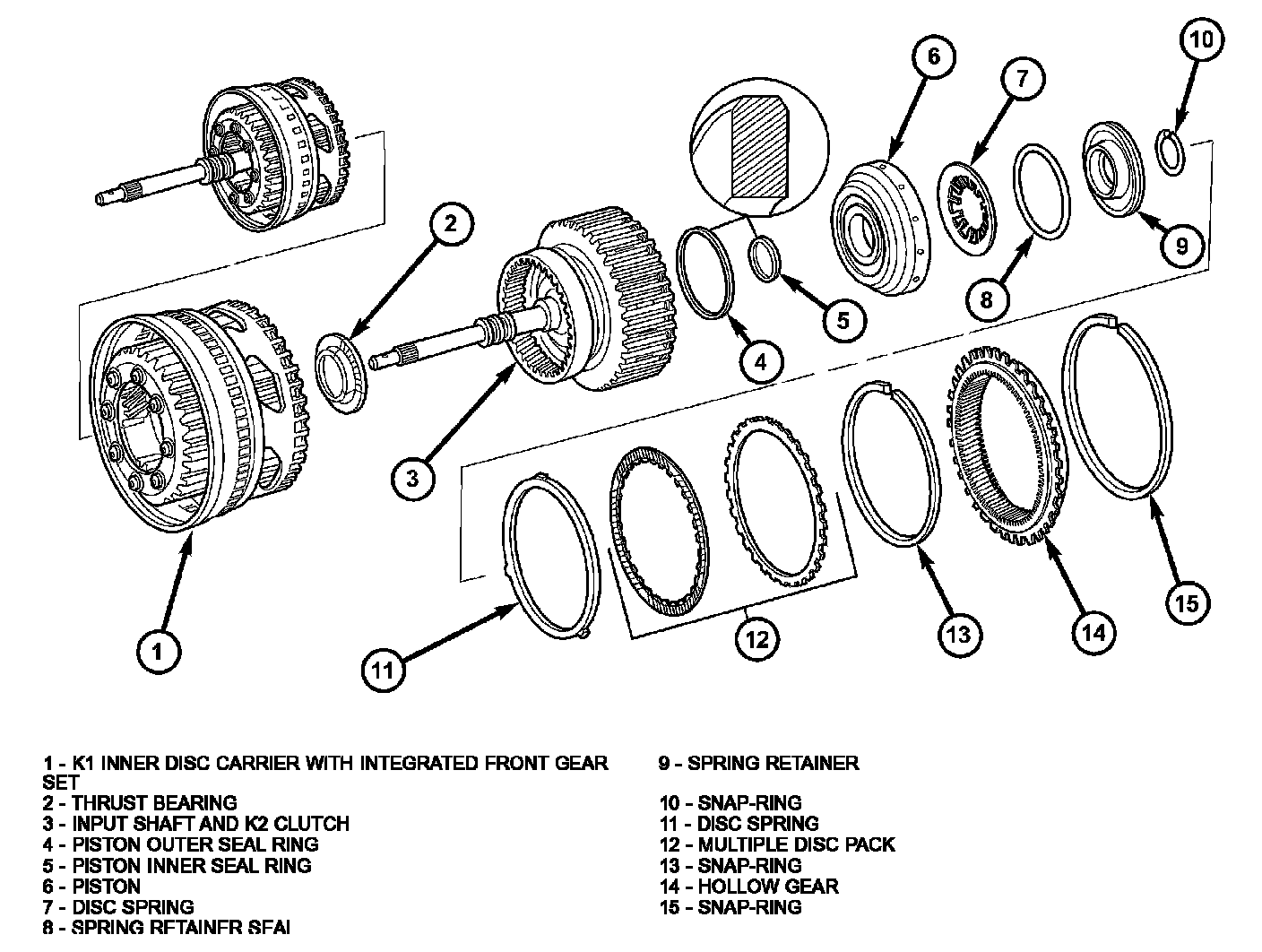

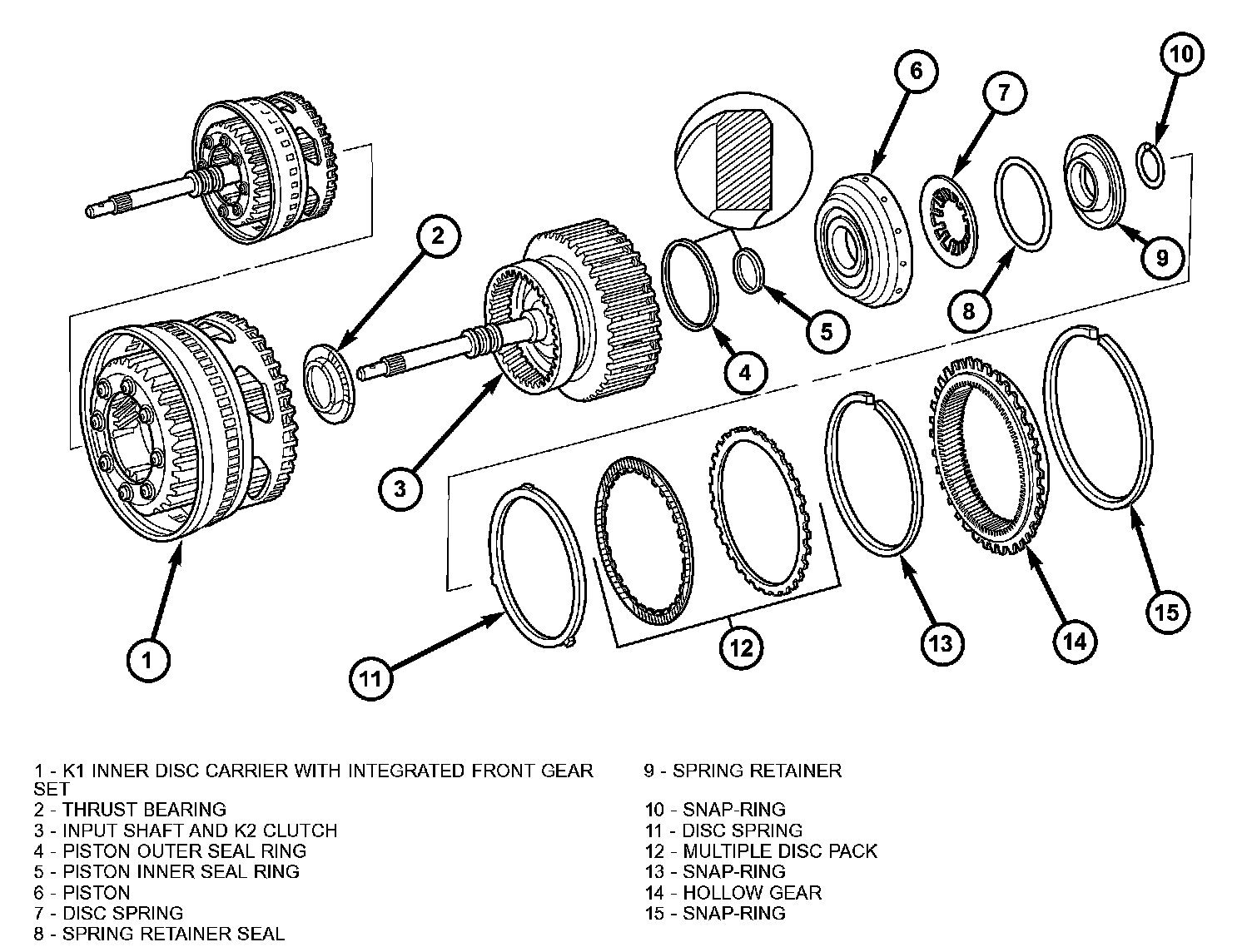

DRIVING CLUTCH K2DISASSEMBLY
1. Remove the snap-ring (15) from the K1 inner disc carrier with integrated front gear set (1) and take off the hollow gear (14).
2. Remove the input shaft and K2 clutch (3).
3. Remove the thrust bearing (2).
4. Remove the snap-ring (13) from K2 outer multiple-disc carrier.
5. Take out the multiple-disc pack (12).
6. Take out the disc spring (11).

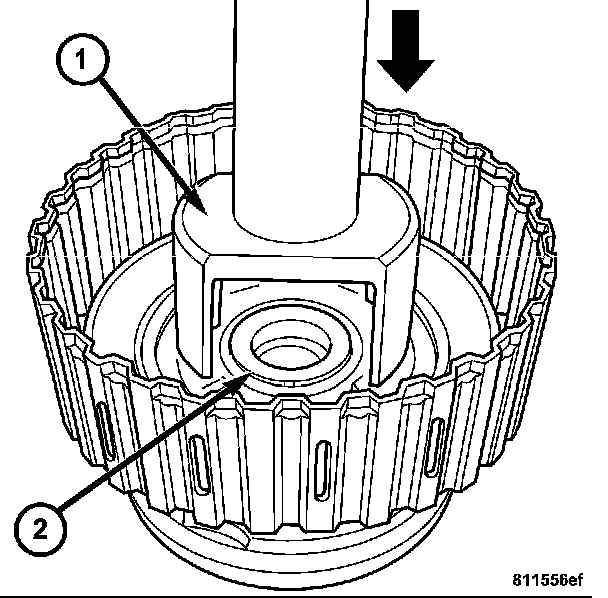

7. Fit Special Tool 8900 (1) onto spring retainer and press until snap-ring (2) is released.
8. Remove the snap-ring (10).
9. Take out the disc spring (7) and pull the piston (6) out of the outer multiple-disc carrier.
