Driving Clutch K1
DRIVING CLUTCH K1DISASSEMBLY

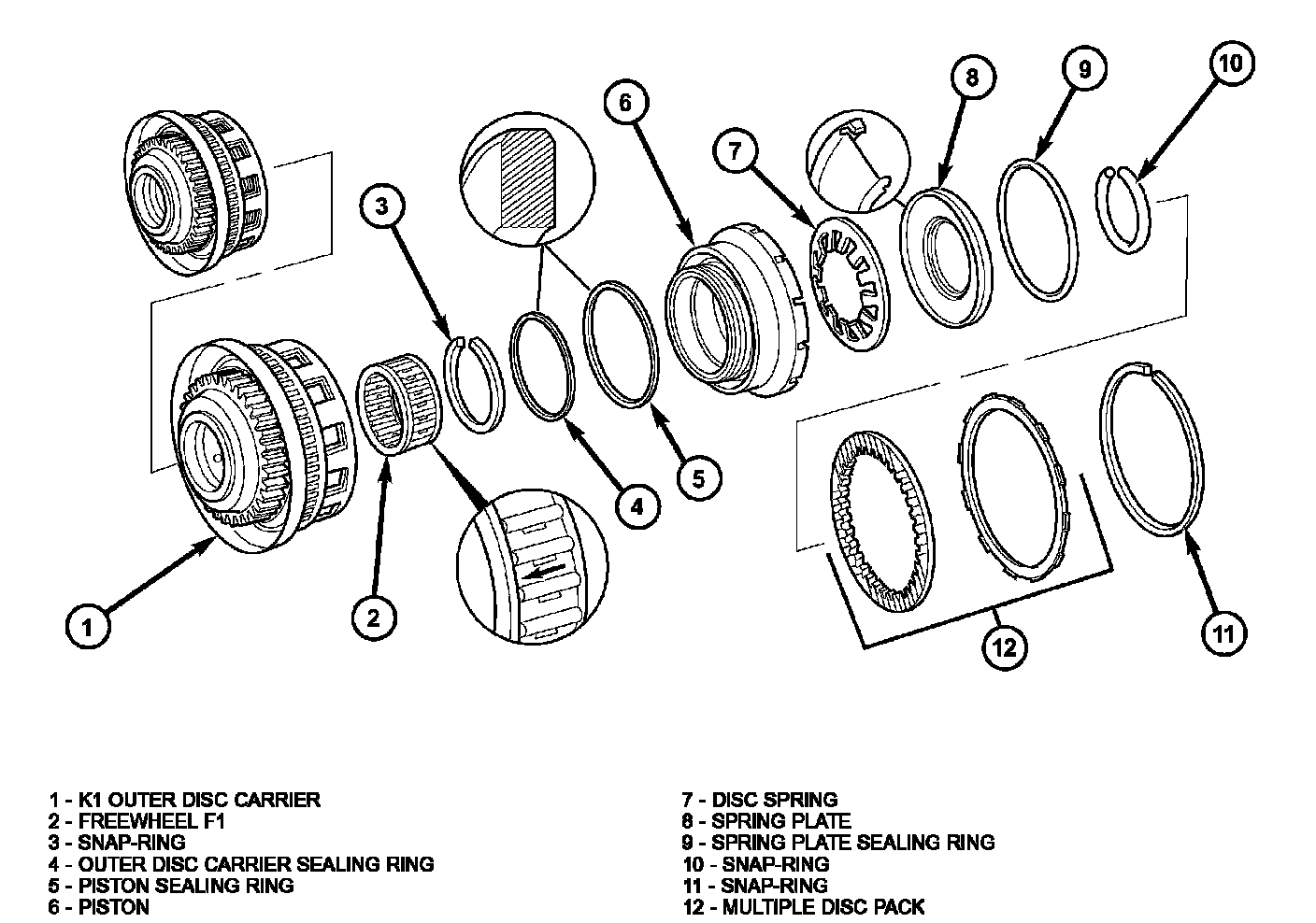

1. Remove the snap-ring (11) from the K1 outer disc carrier (1).
2. Take the multiple-disc pack (12) out of the K1 outer disc carrier (1).
3. Place Special Tool 8900 on the spring plate (8) and compress the spring until the snap-ring (10) is exposed.
4. Remove the snap-ring (10).
5. Take out the disc spring (7) and remove the piston (6) by carefully blowing compressed air into the bore.
6. Remove the snap-ring (3) and take out the freewheel F1 (2).
