Oil Pump

OIL PUMP

ASSEMBLY

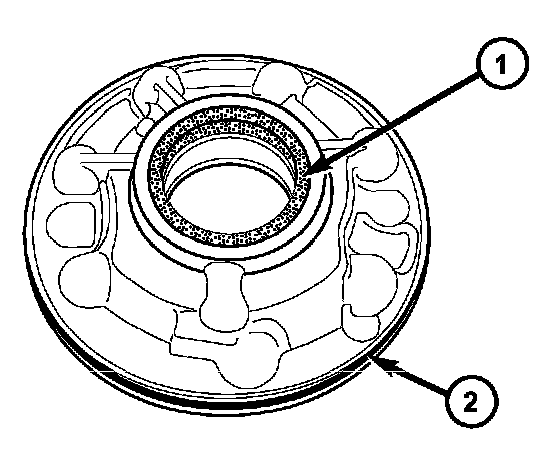

1. Install a new inner oil pump seal (1) with Special Tool 8902-A.
2. Replace the outer oil pump O-ring (2).

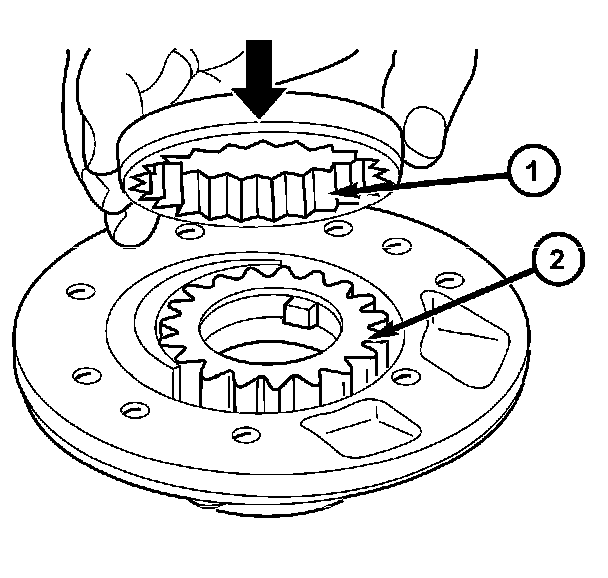

3. Lubricate the pump gears with transmission fluid and place in the pump housing. Insert the pump gear (1) so that the chamfer (arrow) points towards the pump housing.
