Freewheeling Clutch

FREEWHEELING CLUTCH

ASSEMBLY

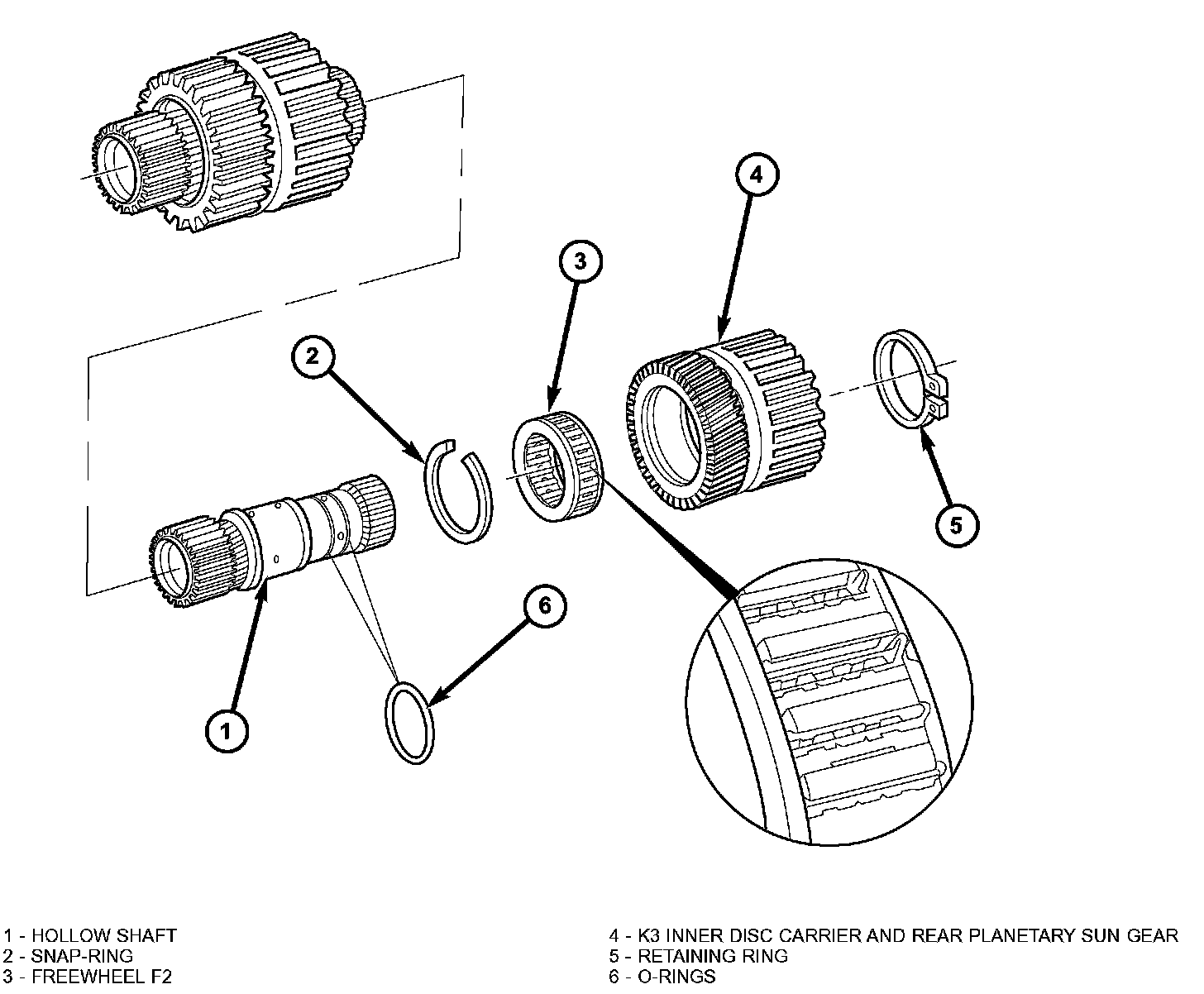

1. Press the freewheel F2 (3) into the K3 inner disc carrier and rear planetary sun gear (4).
2. Install the snap-ring (2) for the freewheel.
3. Check the O-rings (6) on the hollow shaft (1), replace if necessary.
4. Install the K3 inner disc carrier and rear planetary sun gear (4) with the K3 internally toothed disc carrier and the freewheel (3) onto the hollow shaft (1).
5. Install the retaining ring (5) onto the hollow shaft (1).
