Installation

INSTALLATION

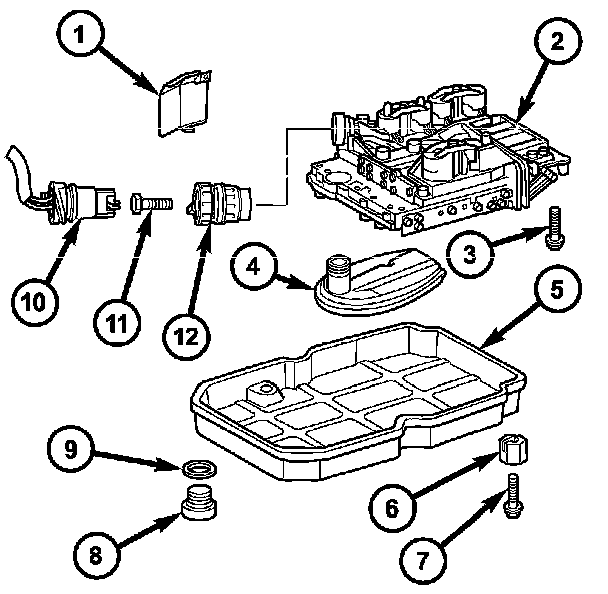

1. Position the electrohydraulic unit in the transmission housing.
2. Insert the selector valve (1) in the driver of the detent plate (2). When installing the electrohydraulic control module in the transmission housing, the plastic part of the selector valve (1) must engage in the driver of the detent plate (2).





3. Install the bolts (3) and tighten to 8 Nm (71 inch lbs.).
4. Install a new oil filter..
5. Install the oil pan (5) and torque the oil pan bolts to 8 Nm (71 inch lbs.).
6. Install the oil drain plug (8) with a new drain plug gasket (9). Torque the drain plug to 20 Nm (177 inch lbs.).
7. Install the guide bushing (12) into the transmission housing and install the bolt (11) to hold the guide bushing in place.





8. Check the O-ring on the plug connector (1), and replace if necessary.

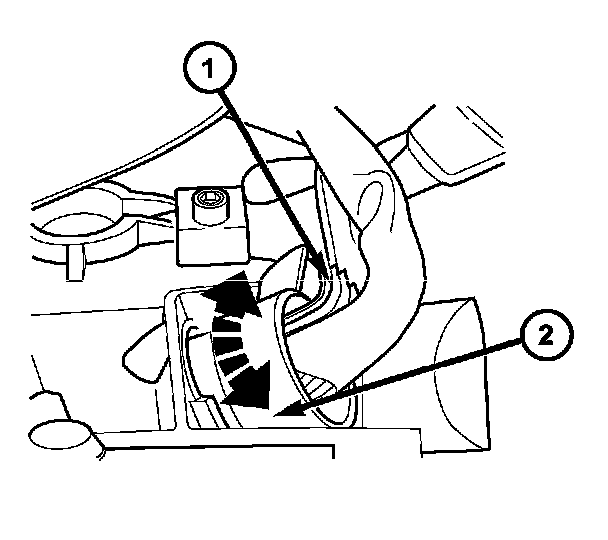

9. Install the plug connector (1) into the guide bushing (2). Turn the bayonet lock of the guide bushing (2) clockwise to connect plug connector (1).

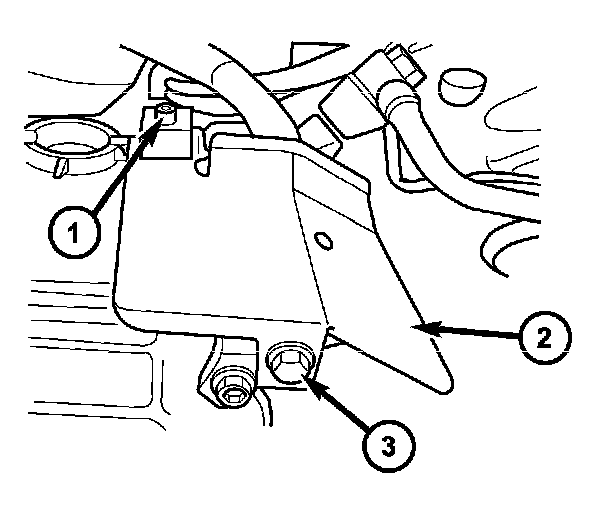

10. Position the heat shield (2) onto the transmission housing and install the screw (1) and bolt (3) to hold the shield in place.
11. Fill the transmission with specified fluid.
