Connector Locations

Underhood Accessory Fuse Block:

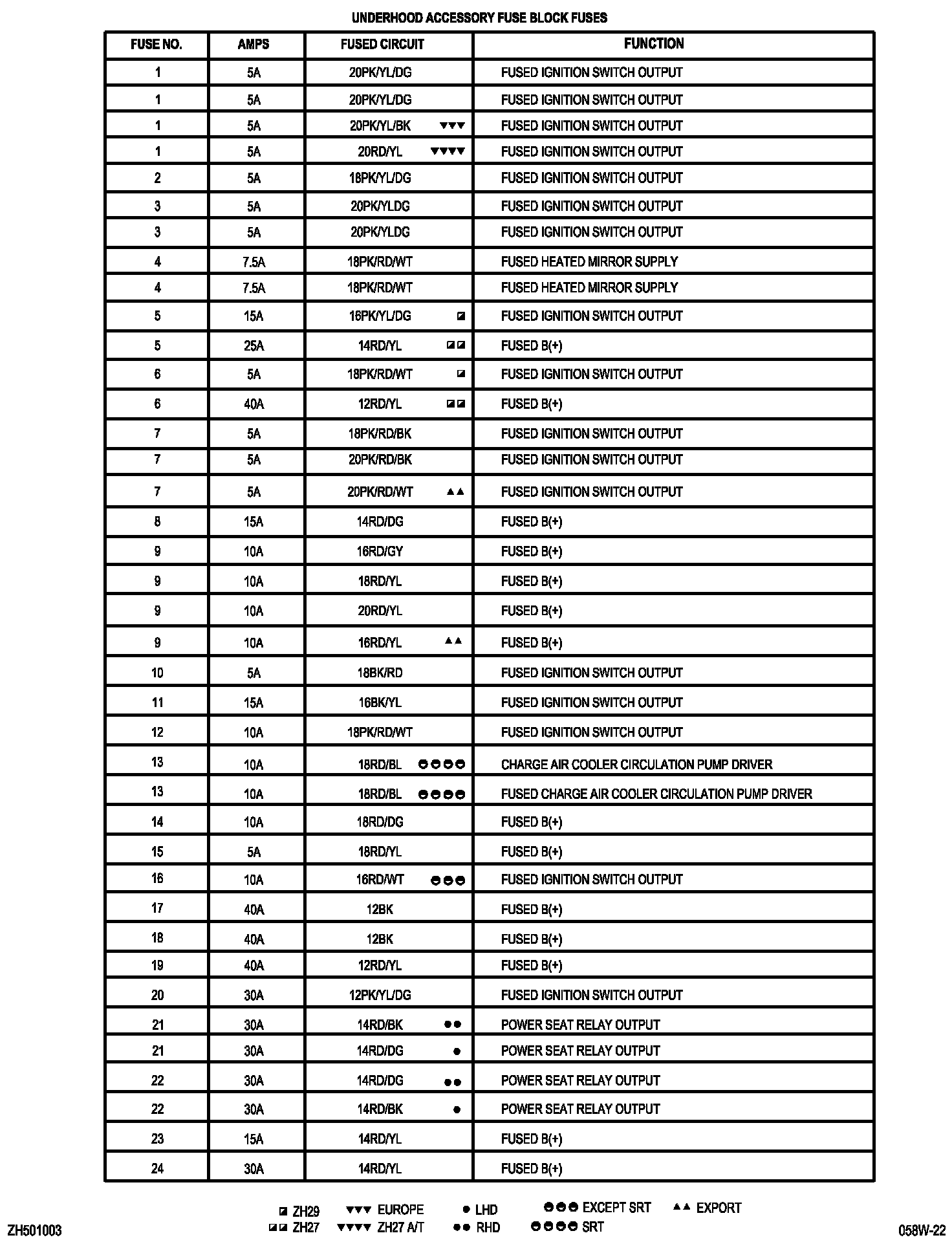

Fuse Information Table (Fuse 1 - Fuse 24):



Fuse Information Table (Fuse 25 - Fuse 37):
