Transmission Temperature Sensor/Switch: Specifications

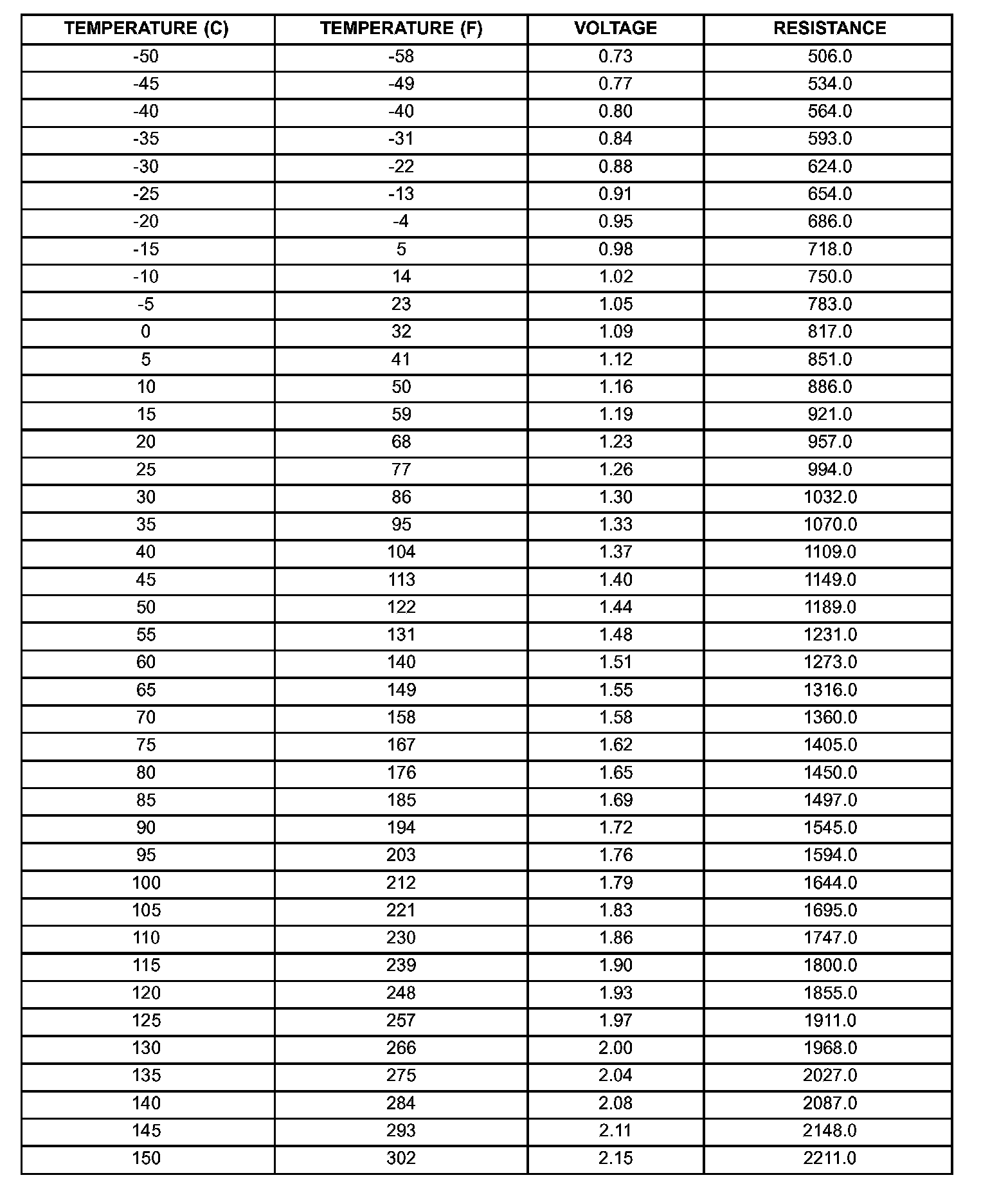

TRANSMISSION TEMP SENSOR SPECIFICATIONS

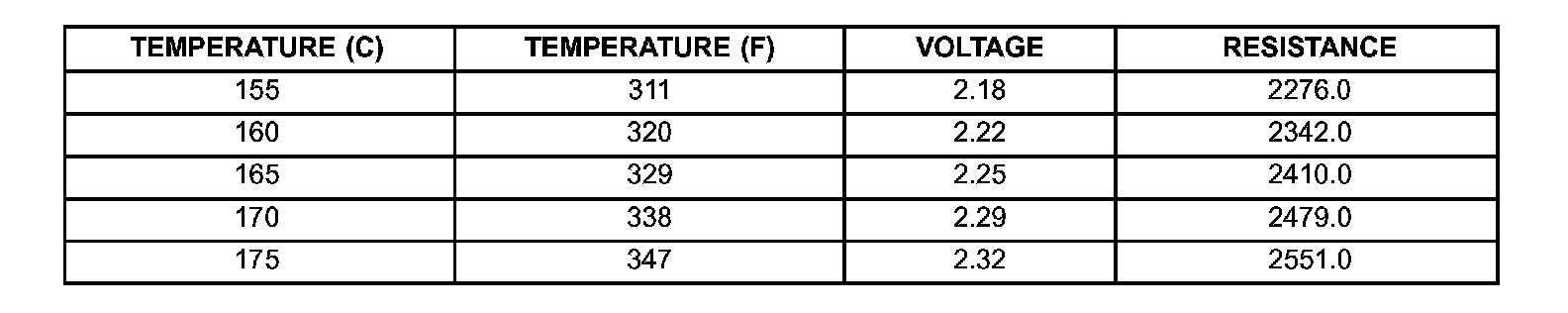

Part 2 Of 2:
