Manifold Pressure/Vacuum Sensor: Service and Repair

REMOVAL




1. Disconnect the negative battery cable.

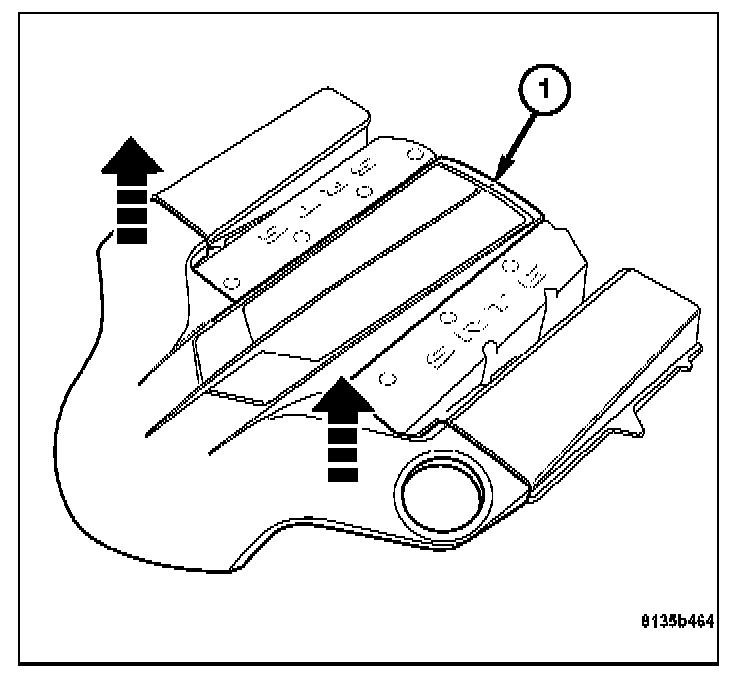

2. Remove the engine cover (1). Grasp both corners of the engine cover, and pull up firmly.

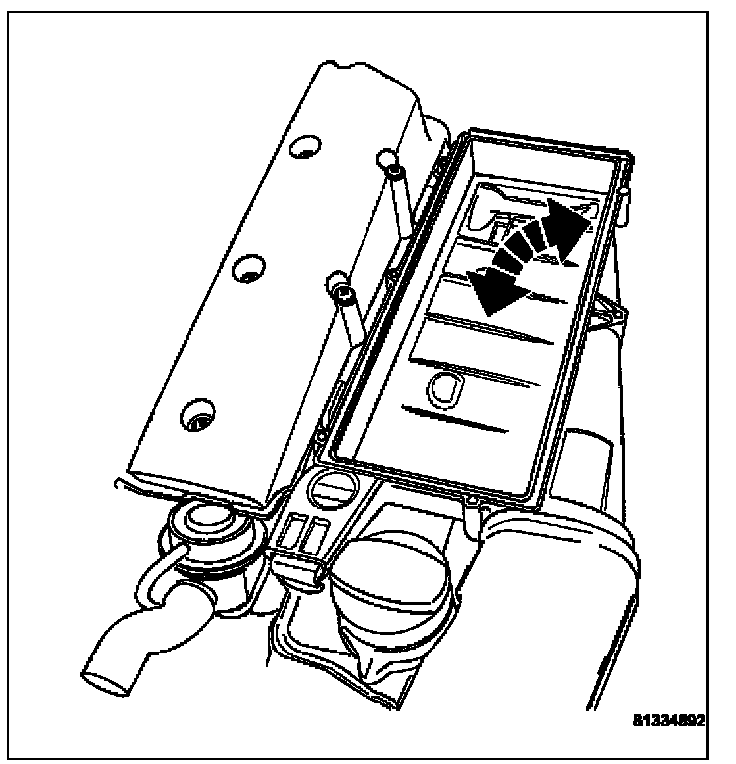

3. Remove the upper air cleaner housing.

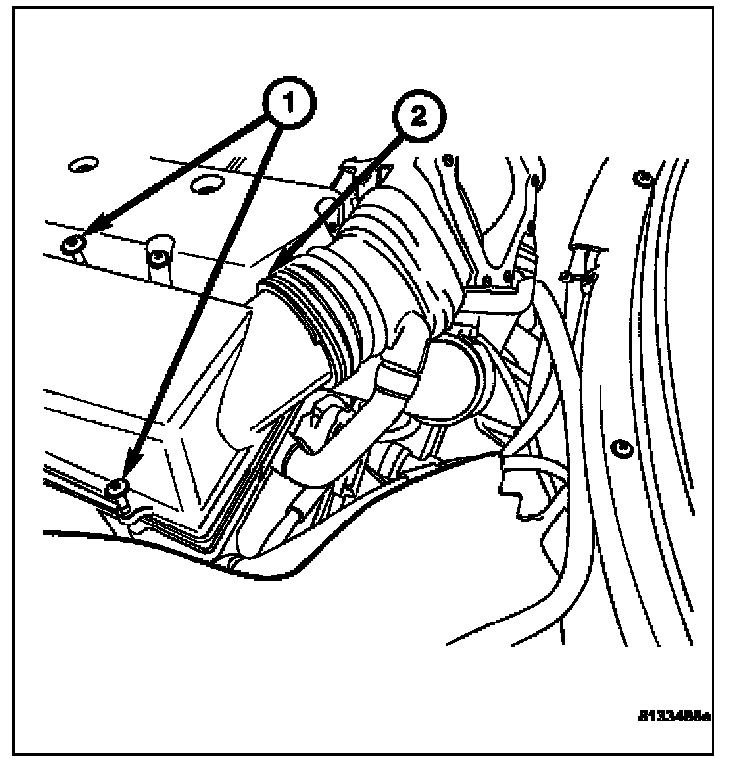

4. Remove the lower air cleaner housing.

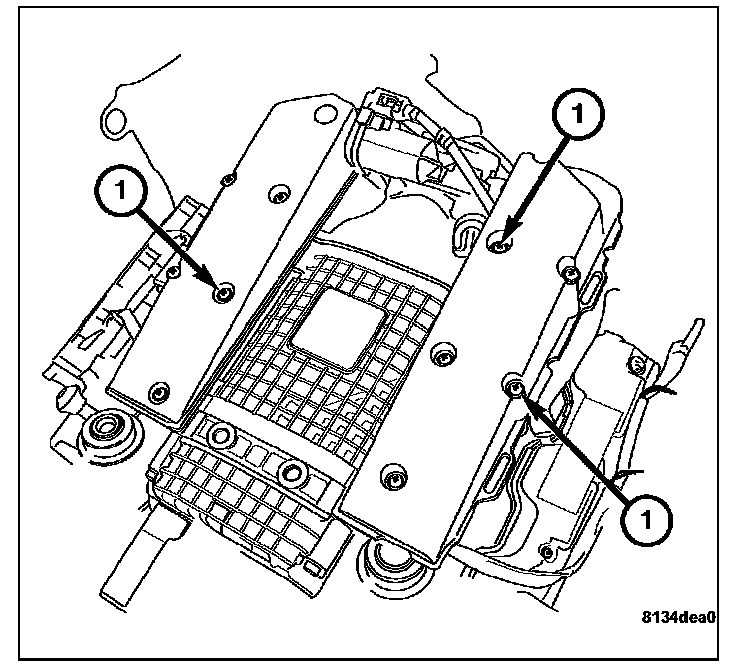

5. Remove the right and left intake plenums.

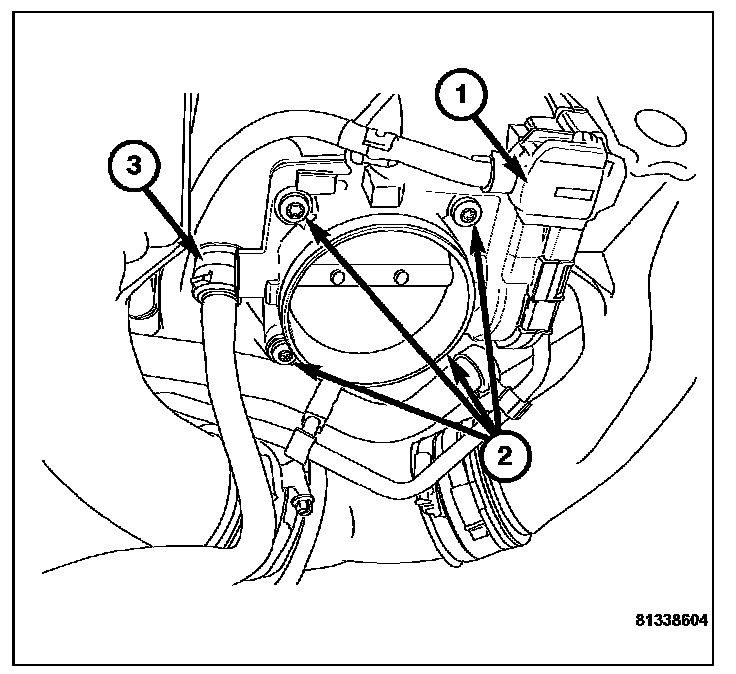

6. Remove the throttle body.

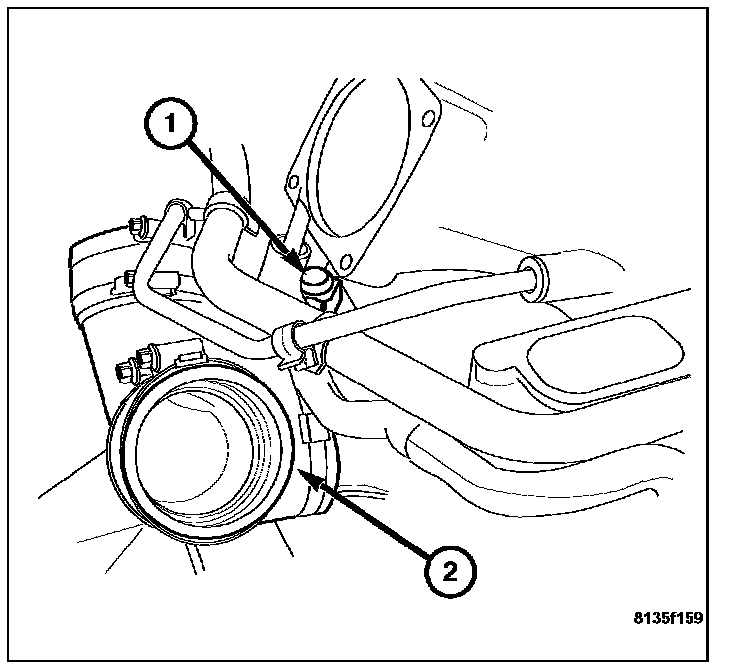

7. Remove the supercharger outlet housing (2) by removing the supercharger outlet housing hose clamps.
8. Disconnect the MAP sensor (1) harness connector.
9. Remove the MAP sensor mounting bolts.
10. Remove the MAP sensor (1).

INSTALLATION




1. Install the MAP sensor (1).
2. Install the MAP sensor mounting bolts. Tighten to 4.5 N.m (40 in. lbs.).
3. Connect the MAP sensor (1) harness connector.

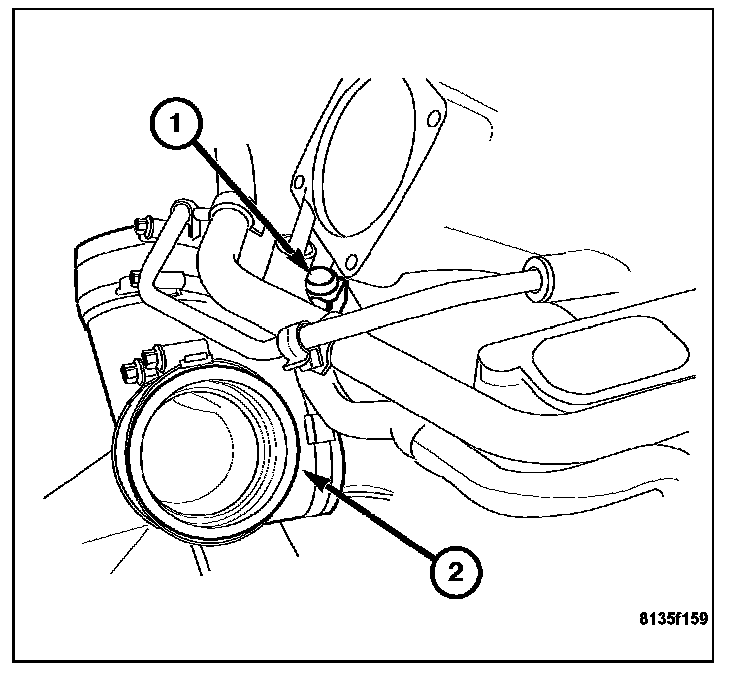

4. Install the supercharger outlet housing (2). Tighten the supercharger outlet housing hose clamps.

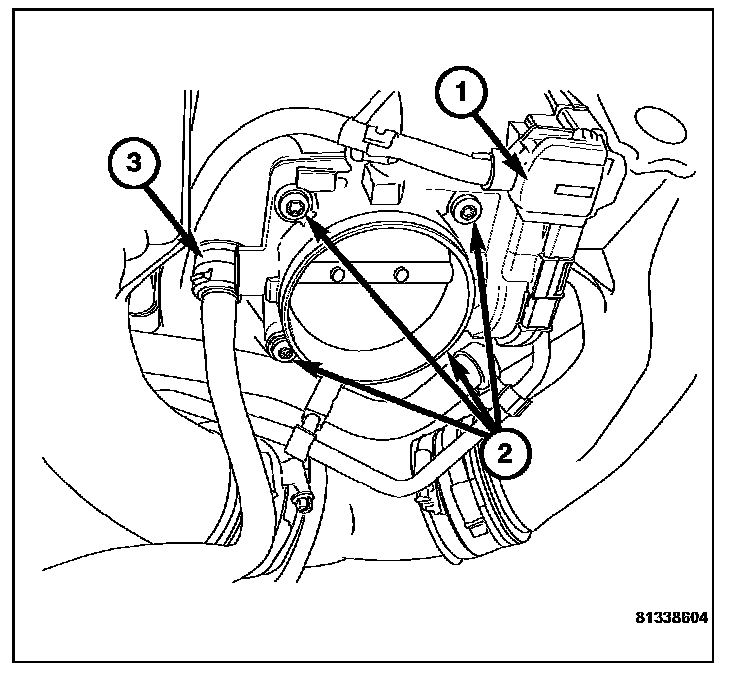

5. Install the throttle body.




6. Install both right and left intake plenums.




7. Install both right and left lower air cleaner housings.




8. Install the upper air cleaner housings.
9. Install the engine cover. Align the engine cover retaining clips to the rubber mounts, and push down firmly to connect engine cover to rubber mounts.

NOTE: To ease the installation of the engine cover, apply a small amount of lubricant to the engine cover rubber mounts.

10. Connect the negative battery cable.
