Headlamp Switch: Testing and Inspection

1. Disconnect the negative battery cable.
2. Remove the headlamp leveling switch from the instrument panel.
3. Using an Ohm meter and the table below, check the resistance between the switch connector pins 5&9.

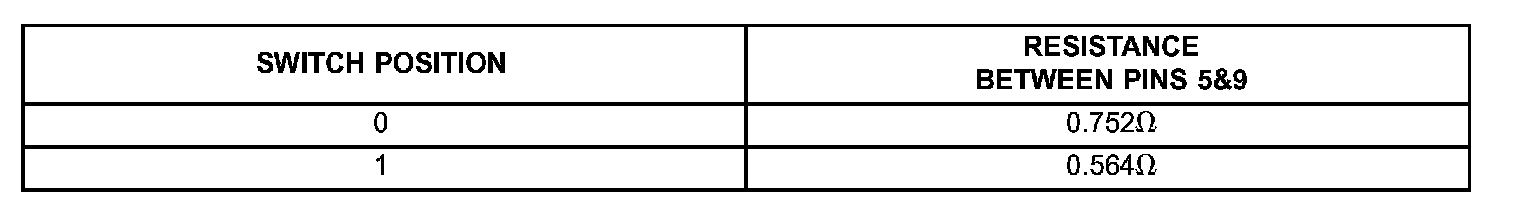

Headlamp Leveling Switch Continuity:

4. If the test results are NOT as indicated in the HEADLAMP LEVELING SWITCH CONTINUITY table, replace the switch. If the test results ARE as indicated HEADLAMP LEVELING SWITCH CONTINUITY table, the switch is OK at this time.
