Backup Lamp Switch: Service and Repair

BACKUP LAMP SWITCH

REMOVAL
1. Disconnect the negative battery cable.
2. Put the transmission in reverse.
3. Raise and support the vehicle.

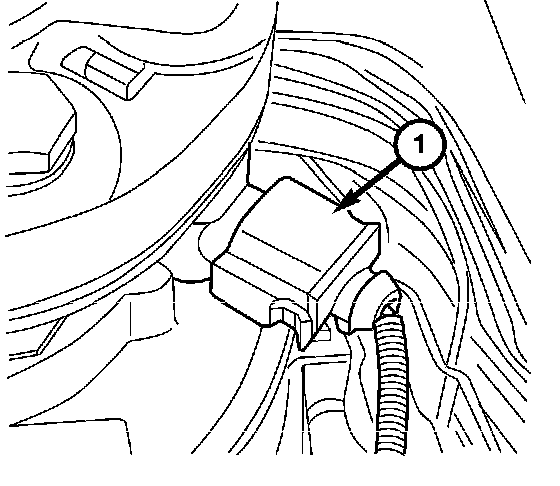

4. Disconnect the backup lamp switch harness connector (1).

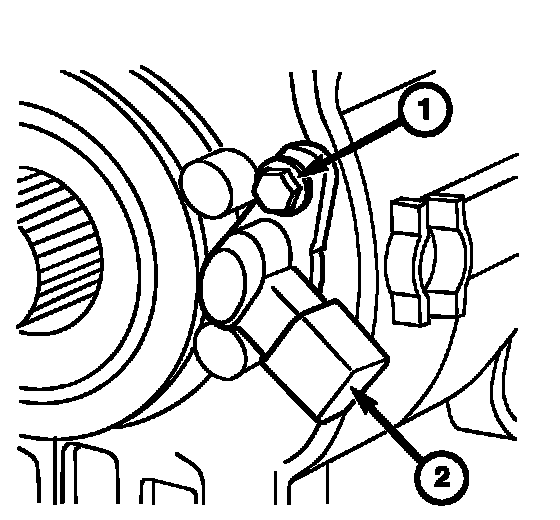

5. Remove the backup lamp switch retaining bolt (1).
6. Remove the backup lamp switch (2) and O-ring seal from the transmission.

INSTALLATION

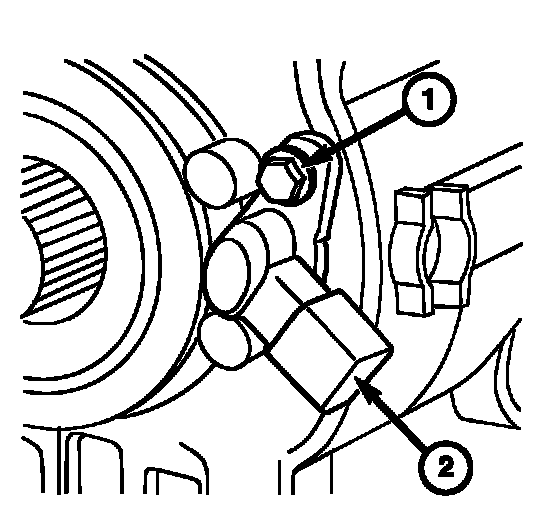

1. Install the backup lamp switch (2) with a new O-ring seal.





2. Install the backup lamp switch retaining bolt (1). Tighten the bolt to 10 Nm (89 inch lbs.).

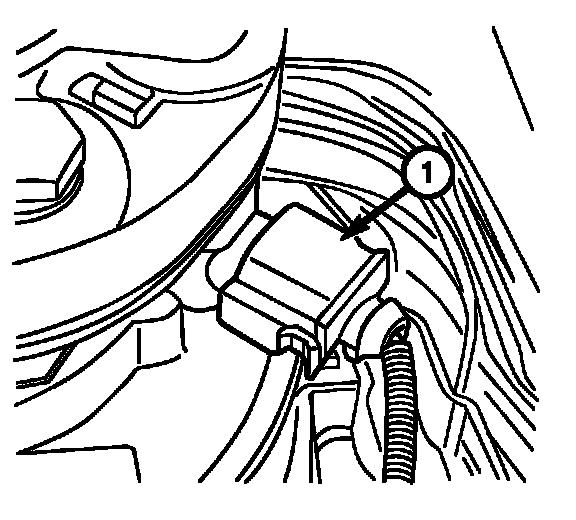

3. Connect the backup lamp switch harness connector (1).
4. Lower the vehicle.
5. Connect the negative battery cable.
6. Check the operation of the backup lamps.
