Backup Lamp Switch
>>
Description and Operation
>>
Manual Transmission
Manual Transmission

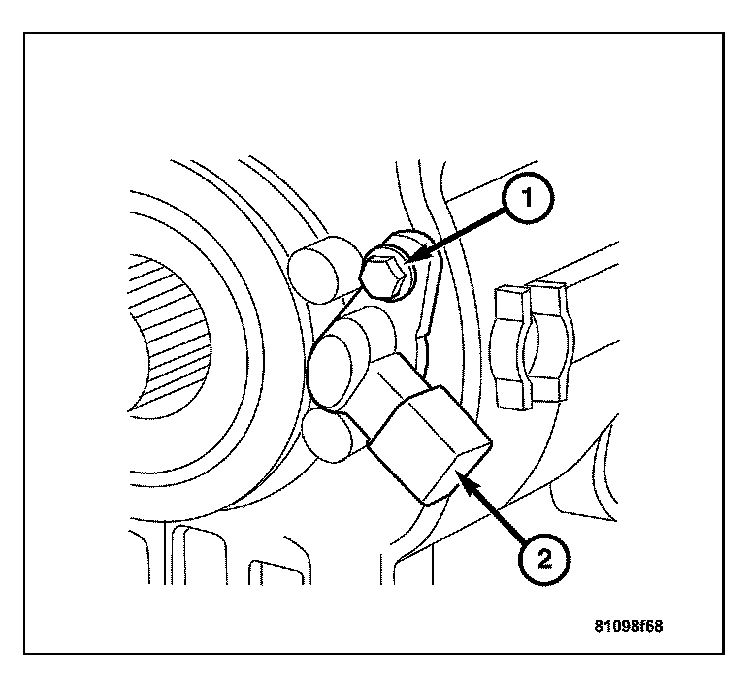

The
Backup Lamp Switch
(2) for manual transmission models is mounted directly on the outside rear housing of the transmission near the output shaft.
