Home >> Chrysler >> 2005 >> Crossfire SRT-6 V6-3.2L SC VIN N >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Instrument Panel >> Brake Pad Wear Sensor >> Diagrams

Brake Pad Wear Sensor: Diagrams

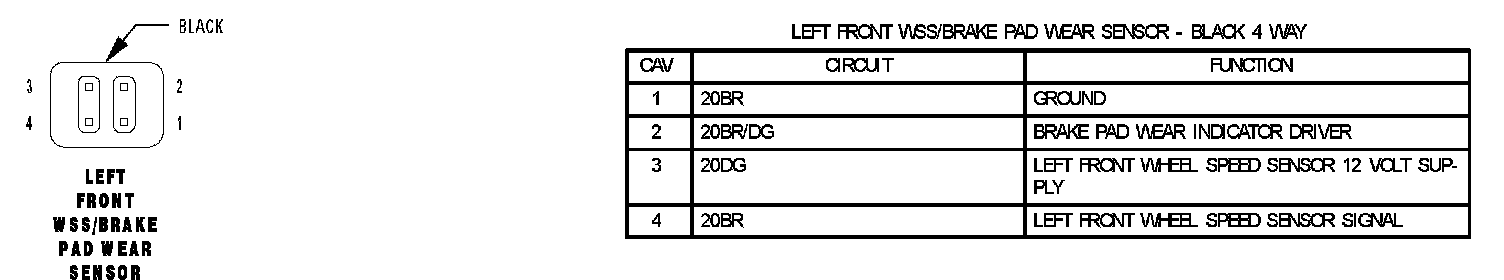

Left Front WSS/brake Pad Wear Sensor:

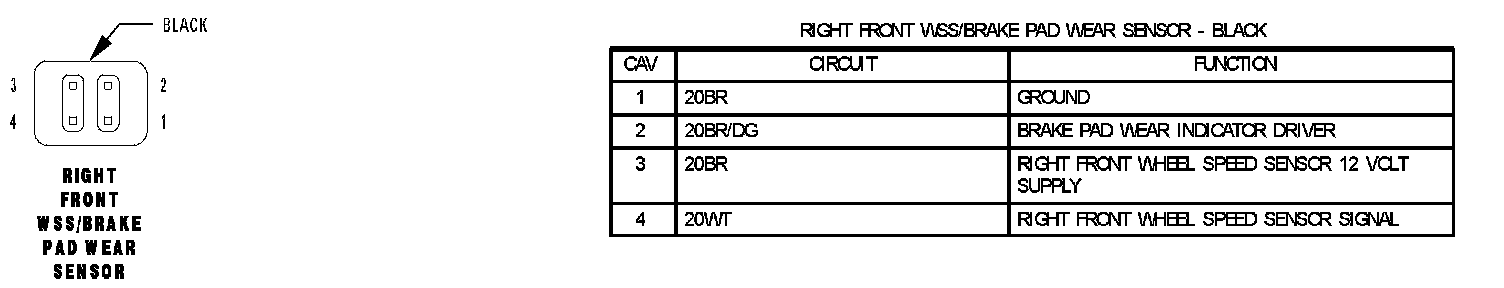

Right Front WSS/Brake Pad Wear Sensor:
