Brake Fluid Pressure Sensor/Switch: Service and Repair

BRAKE PRESSURE SENSOR
REMOVAL

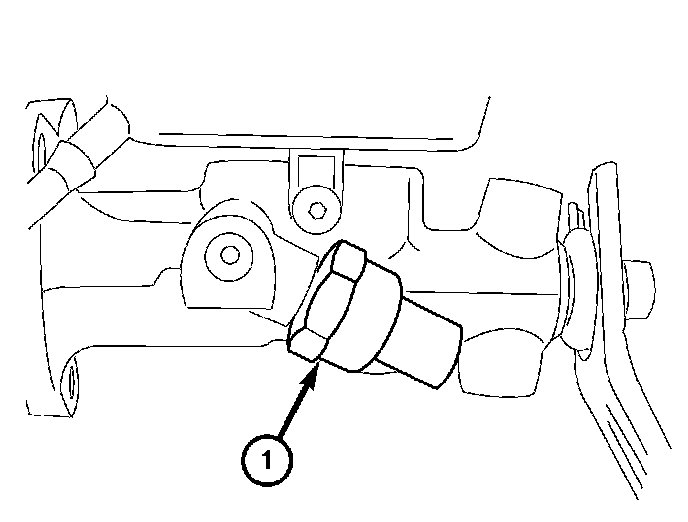

1. Remove the brake pressure sensor (1) from the master cylinder.

INSTALLATION





1. Install the brake pressure sensor (1).
2. Bleed the braking system.
