Tire Pressure Module: Service and Repair

REMOVAL

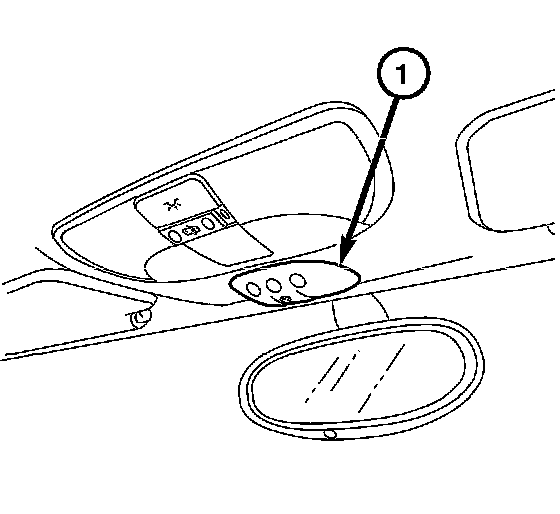

1. Using a plastic wedge. Slide the wedge under the Tire Pressure Module (TPM) module (1) and the headliner and pry the TPM (1) away from the headliner.

INSTALLATION
1. Install the TPM (1) by snapping it into the headliner.
