Exterior Lighting Module: Diagrams

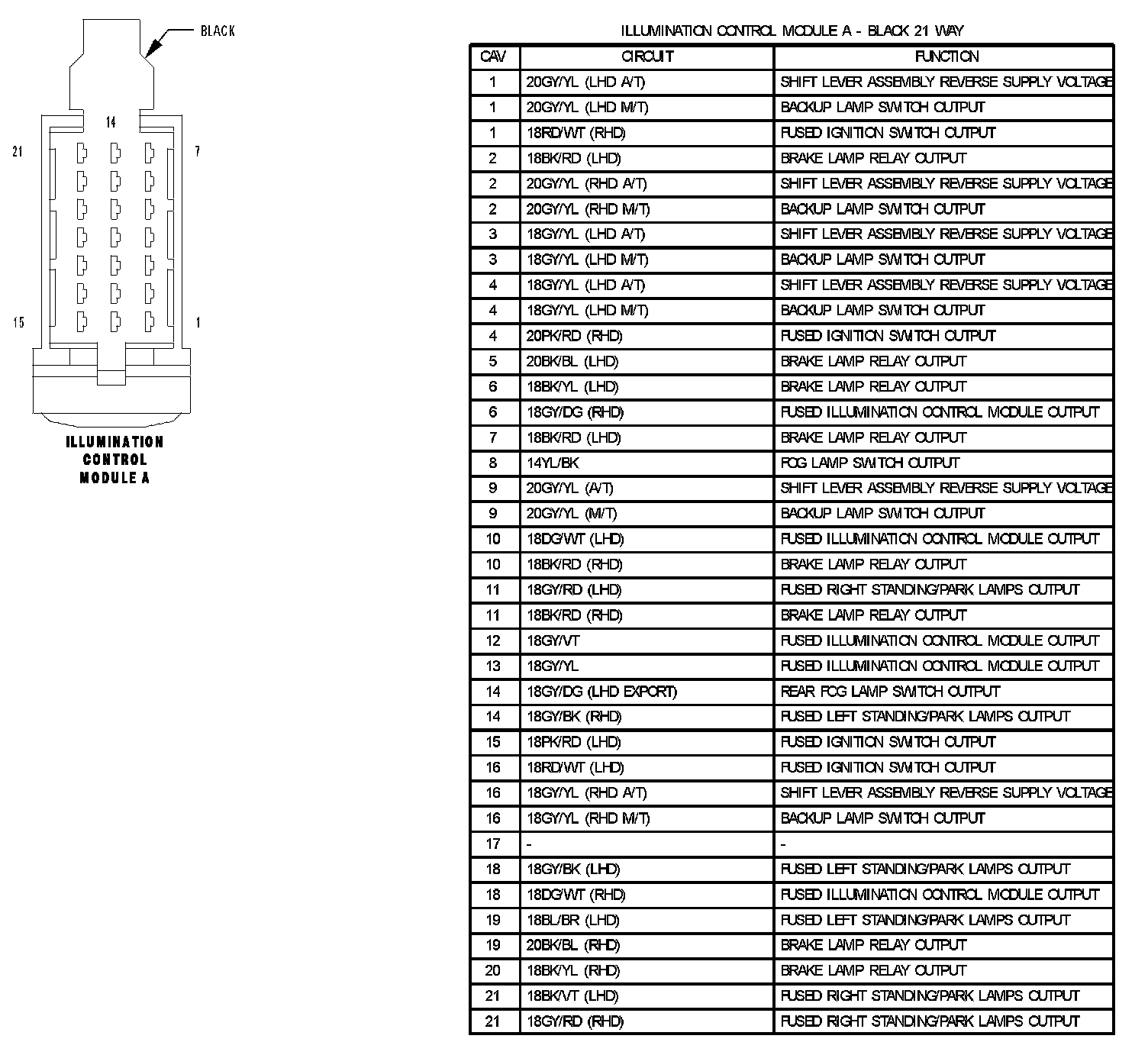

Illumination Control Module A:

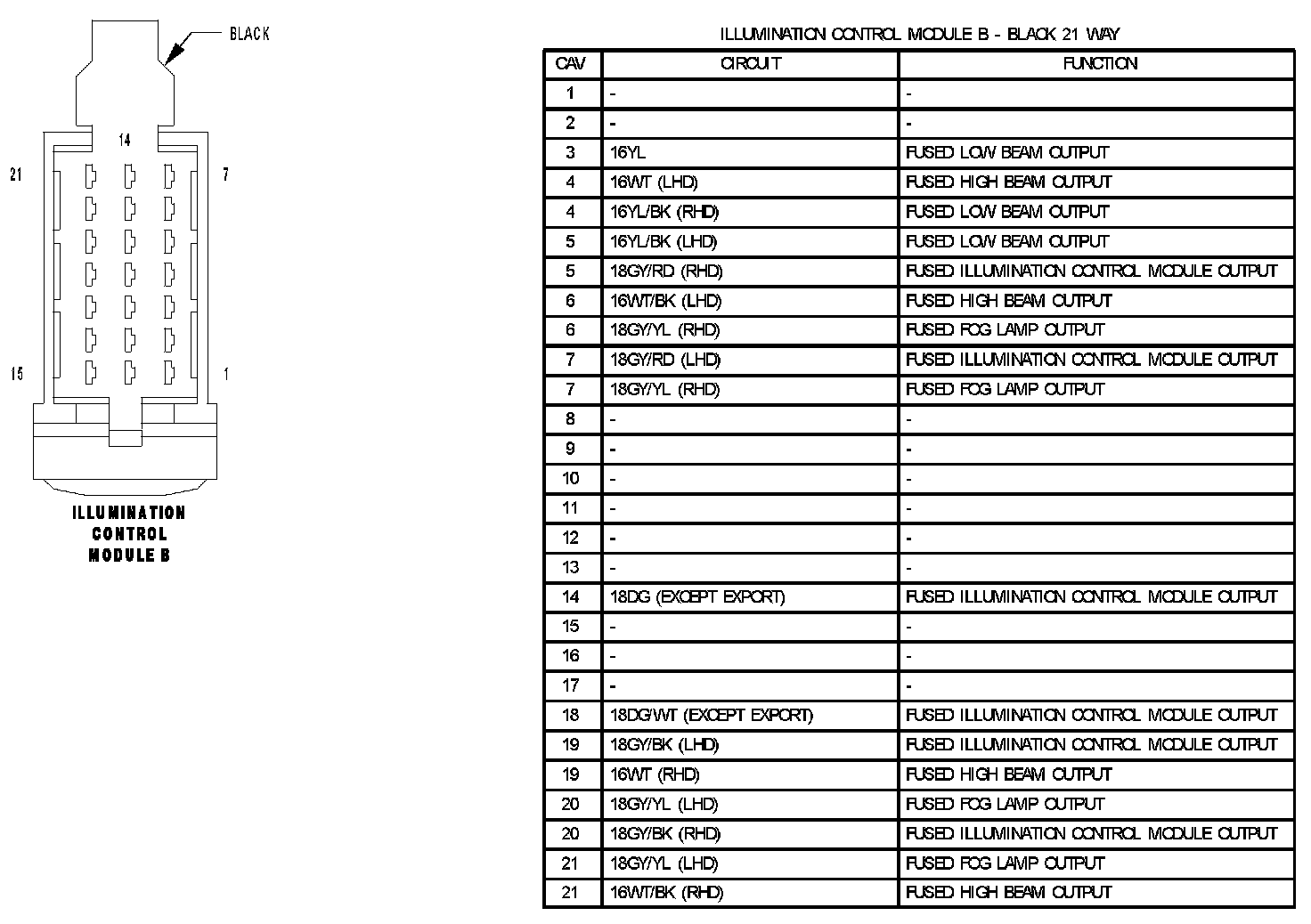

Illumination Control Module B:



Illumination Control Module D:

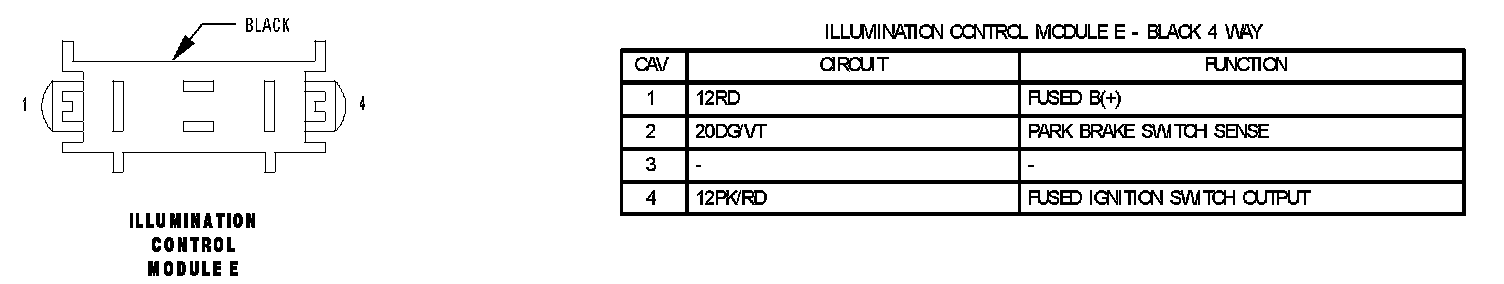

Illumination Control Module E:
