Blower Motor Regulator

REMOVAL

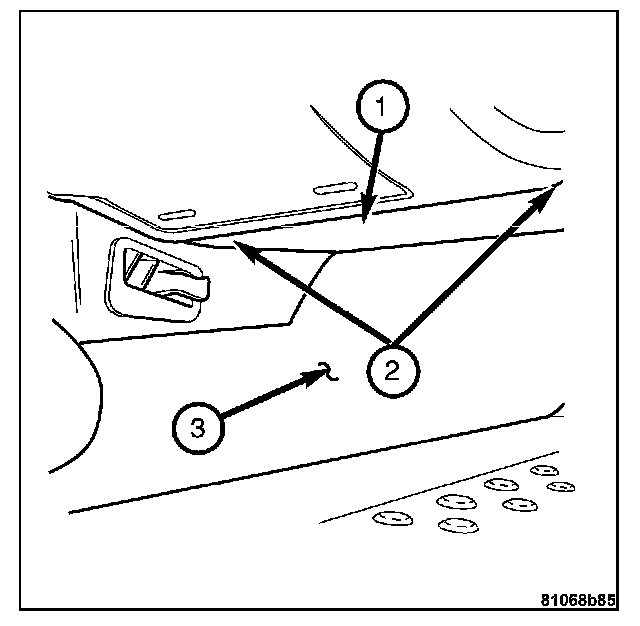

1. Remove the lower instrument panel cover (2) from the instrument panel (1).

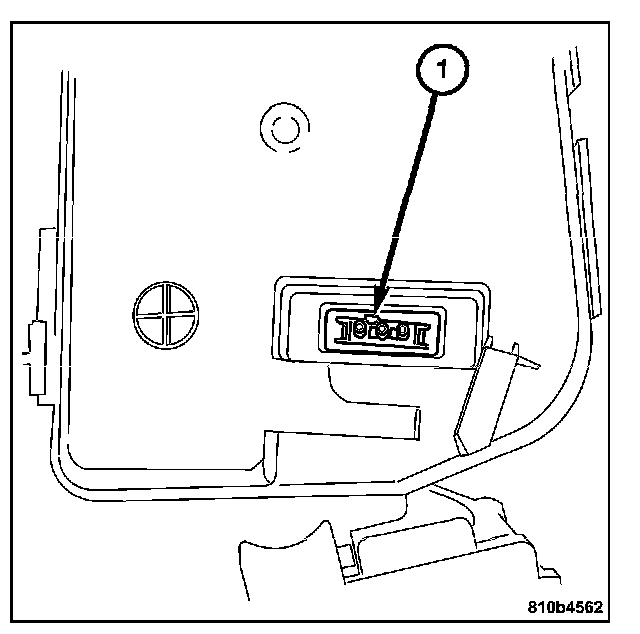

2. Disconnect the blower motor electrical connector (1) from the relief in the blower motor door.

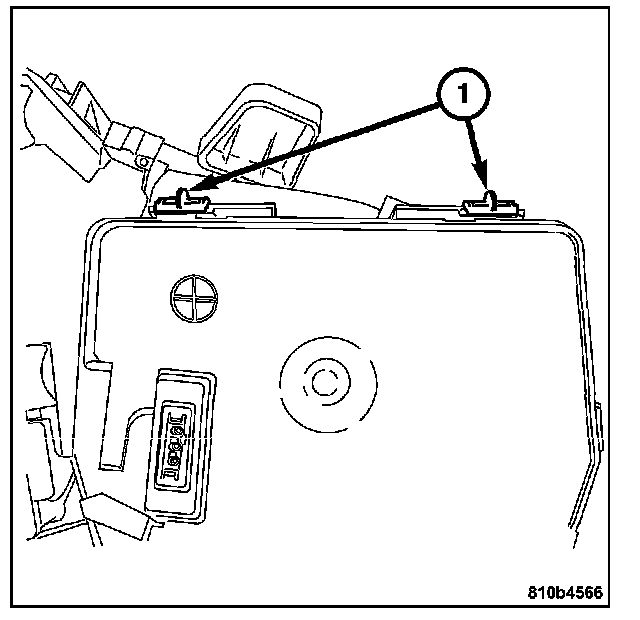

3. Slide the motor door catch mounts (1) to the sides.
4. Swing the blower motor door down.




NOTE: The electrical leads are a one-way connection to the blower motor.

5. Disconnect the electrical leads blue (2) and red (3).

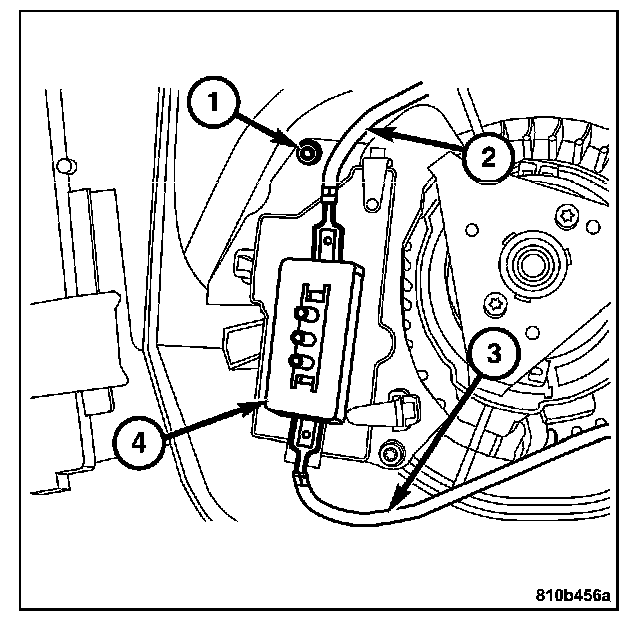

6. Remove the screws (1) attaching the blower motor regulator (4) to the blower motor assembly.
7. Remove the electronic blower motor (4) regulator from the assembly.

INSTALLATION

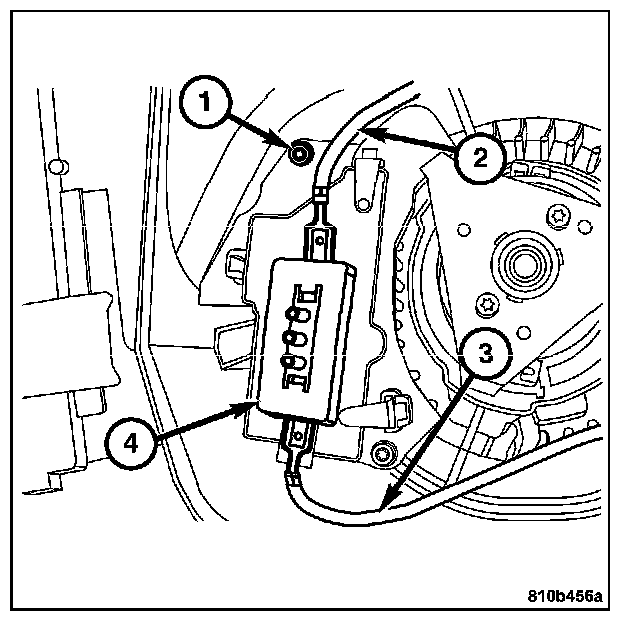

1. Install the electronic blower motor regulator assembly (4) to the heater case.
2. Install the screws (1) attaching the blower motor regulator to the blower motor assembly.

NOTE: The electrical leads are a one-way connection to the blower motor.

3. Connect the electrical leads blue (2) and red (3).
4. Swing the blower motor door up.

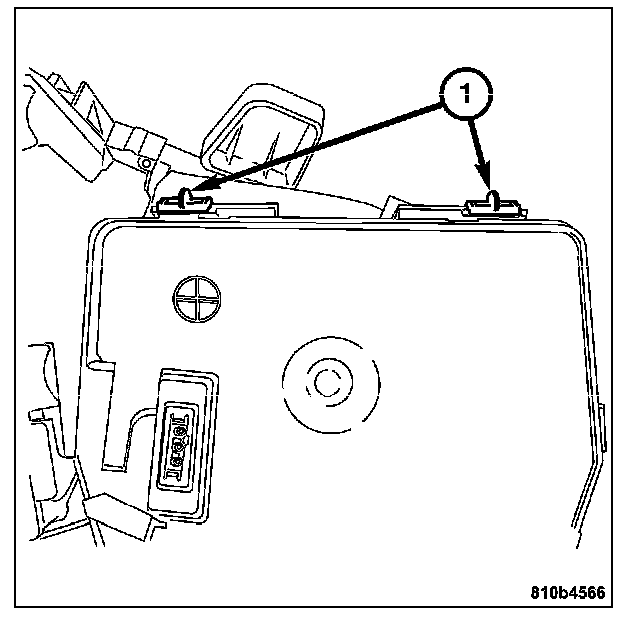

5. Slide the motor door catch mounts (1) to the inside.

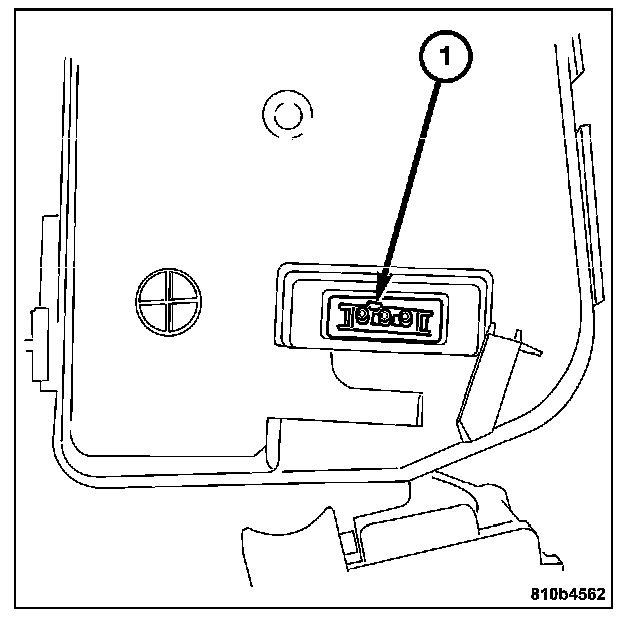

6. Connect the blower motor electrical connector (1).




7. Install the lower instrument panel cover.
