Ignition Coil: Diagrams

Coil On Plug No.1:

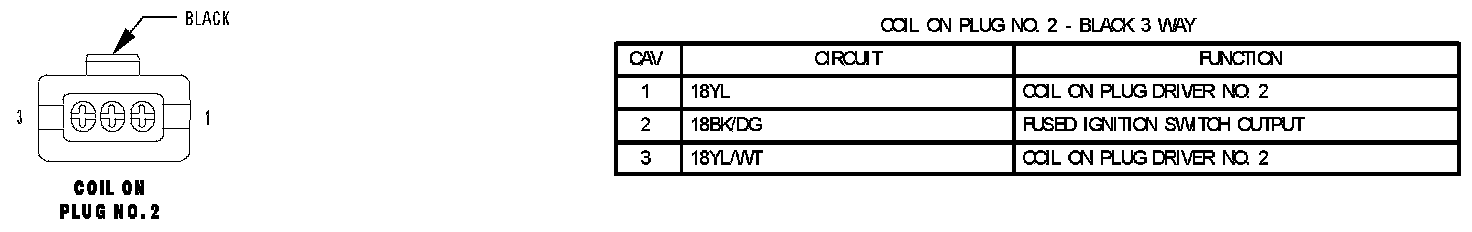

Coil On Plug No.2:



Coil On Plug No.3:

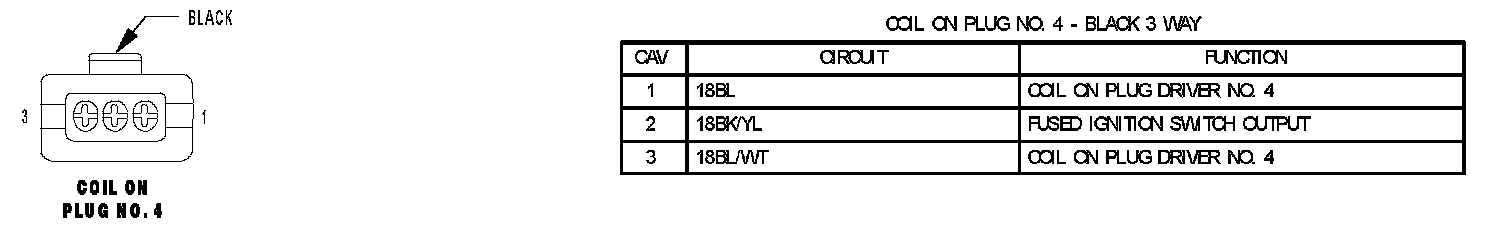

Coil On Plug No.4:

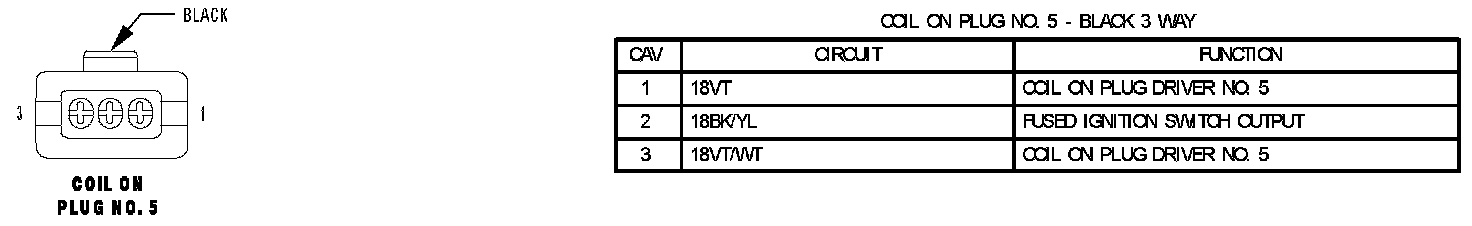

Coil On Plug No.5:



Coil On Plug No.6:
