Throttle Body: Service and Repair

REMOVAL




1. Disconnect the negative battery cable.

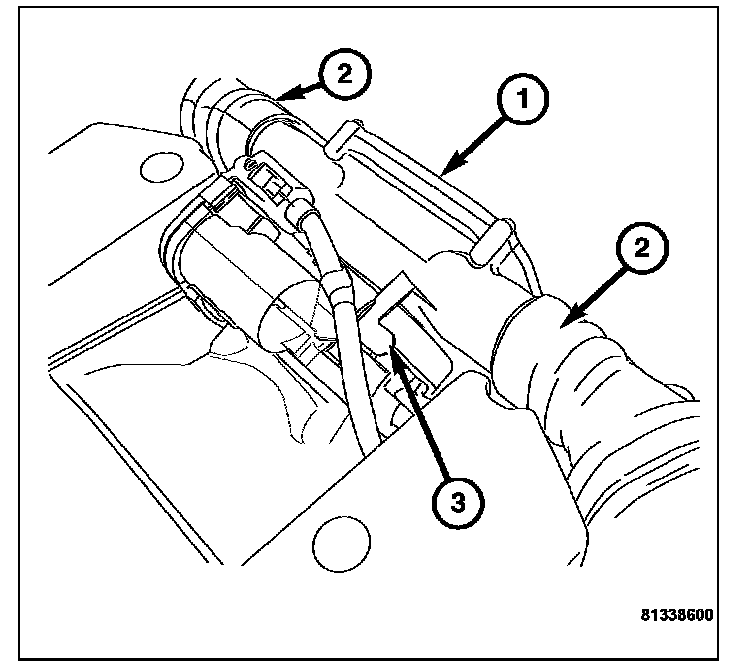

2. Remove the throttle body inlet tube (1) by removing the upper air cleaner housing and tubes (2), then lifting up on the inlet tube lever (3) and removing the inlet tube from the throttle body.

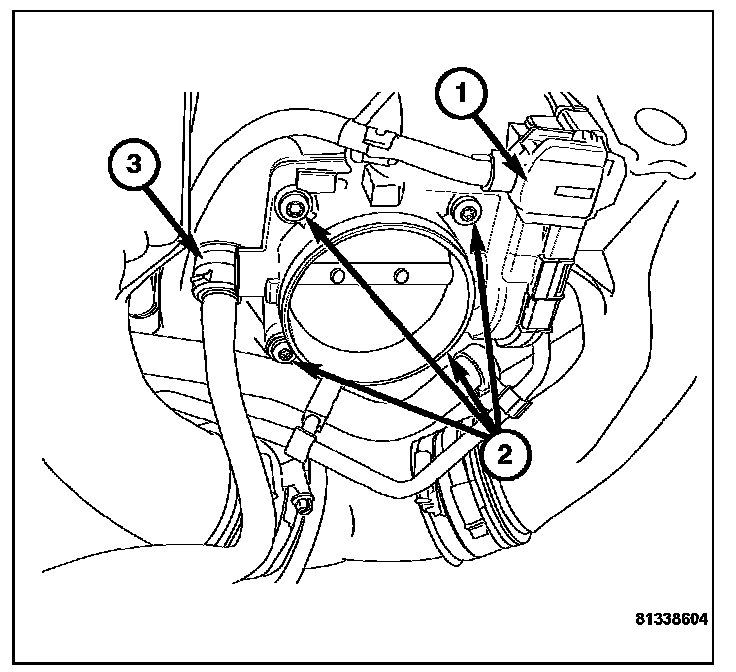

3. Disconnect the throttle body harness connector (1).
4. Disconnect the PCV hose (3) from the throttle body.
5. Remove the throttle body retaining bolts (2) and PCV hose bracket.
6. Remove the throttle body and the throttle body gasket from engine.

INSTALLATION




1. Connect the PCV hose (3) to the throttle body.
2. Install the throttle body and gasket to engine.
3. Install the throttle body retaining bolts (2) and the PCV hose bracket. Tighten to 20 N.m (15 ft. lbs.).
4. Connect the throttle body harness connector (1).

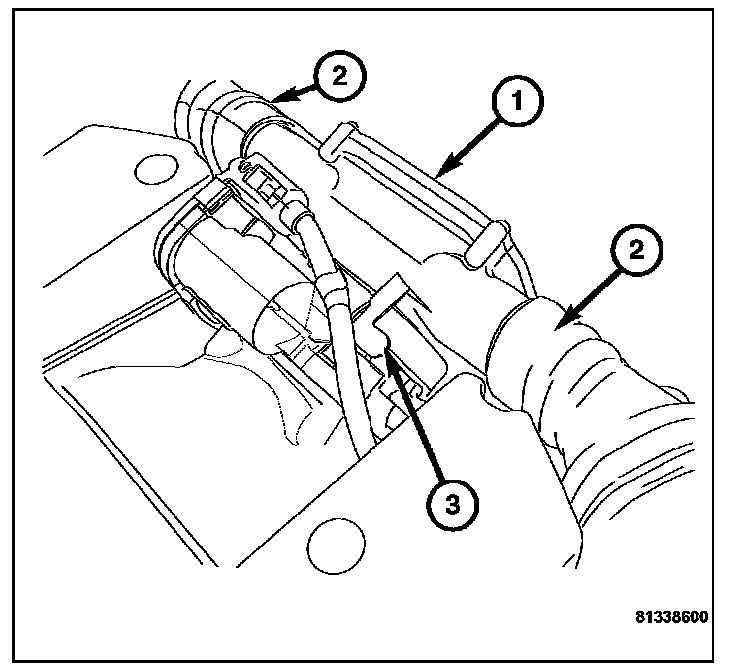

5. Install the throttle body inlet tube (1) by installing the upper air cleaner housing and tubes (2), then install the inlet tube to the throttle body by pushing the throttle body inlet tube in firmly on the throttle body, ensuring the inlet tube lever (3) is attached.




6. Connect the negative battery cable.
