Air Injection Hose/Tube: Service and Repair

REMOVAL

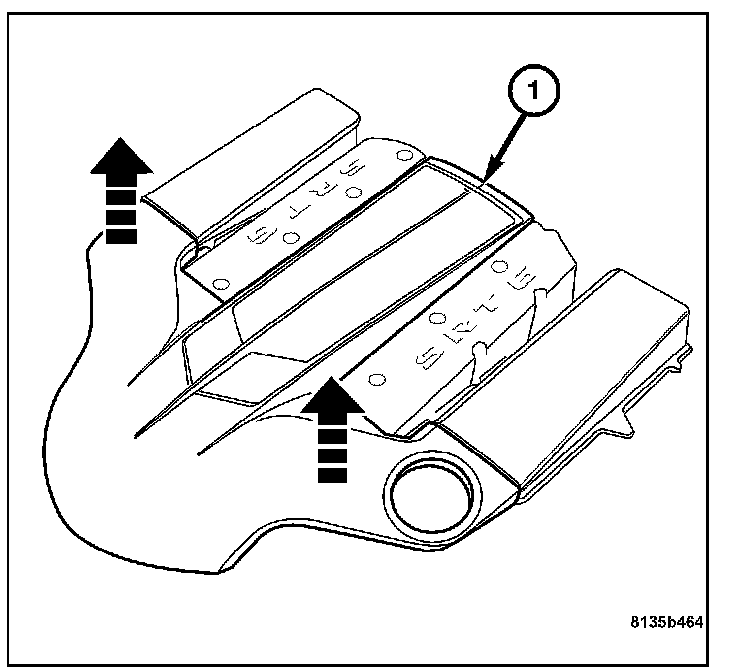

1. Remove the engine cover. Grasp both of the corners of the front engine cover and pull up firmly.

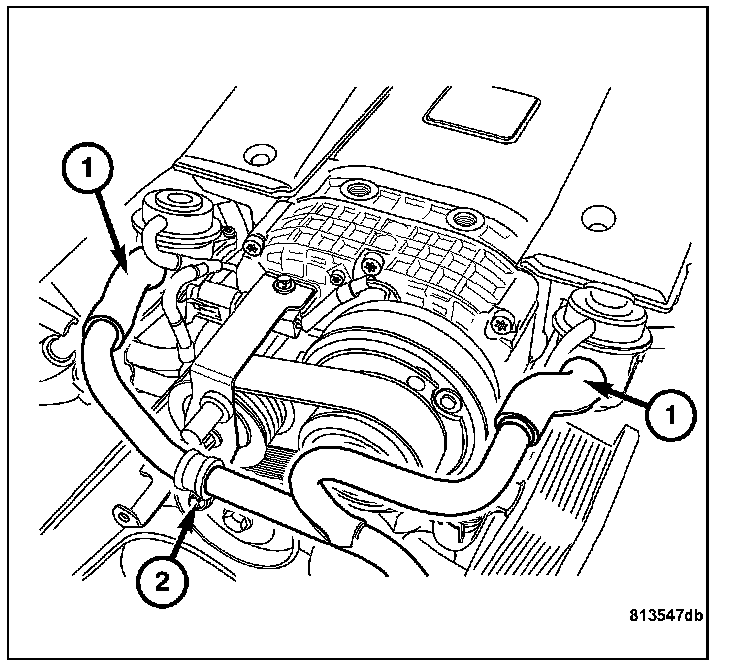

2. Remove the air pump tube assembly retaining bolts (2).
3. Disconnect the air pump tubes (1) from the air pump and solenoids.
4. Remove the air pump tube assembly from the engine.

INSTALLATION

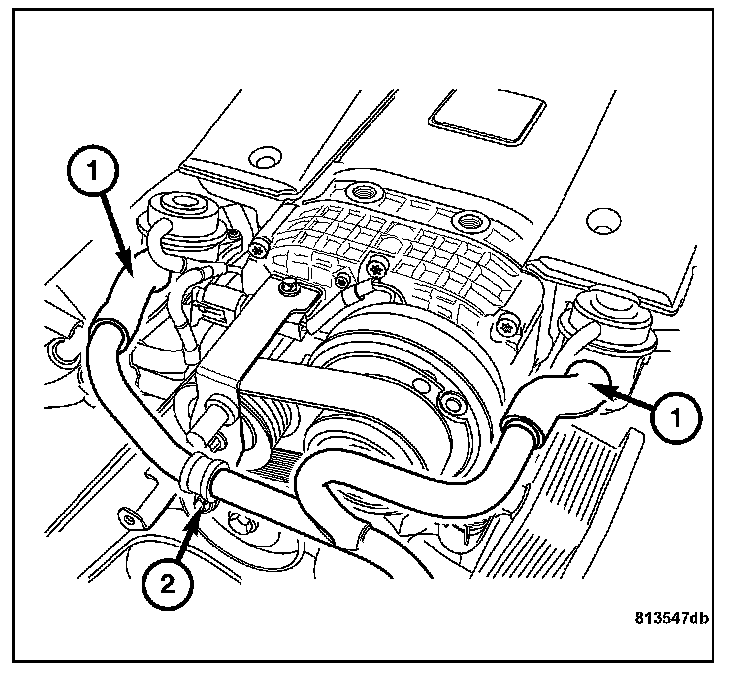

1. Install the air pump tube assembly (1) to the engine.
2. Connect the air pump tubes (1) to the air pump and the switchover valves.
3. Install the air pump tube assembly retaining bolts (2). Tighten the bolts to 10 N.m (89 in. lbs.).
4. Install the engine cover. Realign the engine cover retaining clips to the mounting brackets and push down firmly to connect the engine cover to the mounting brackets.
