Removal and Replacement

REMOVAL




1. Disconnect the negative battery cable.

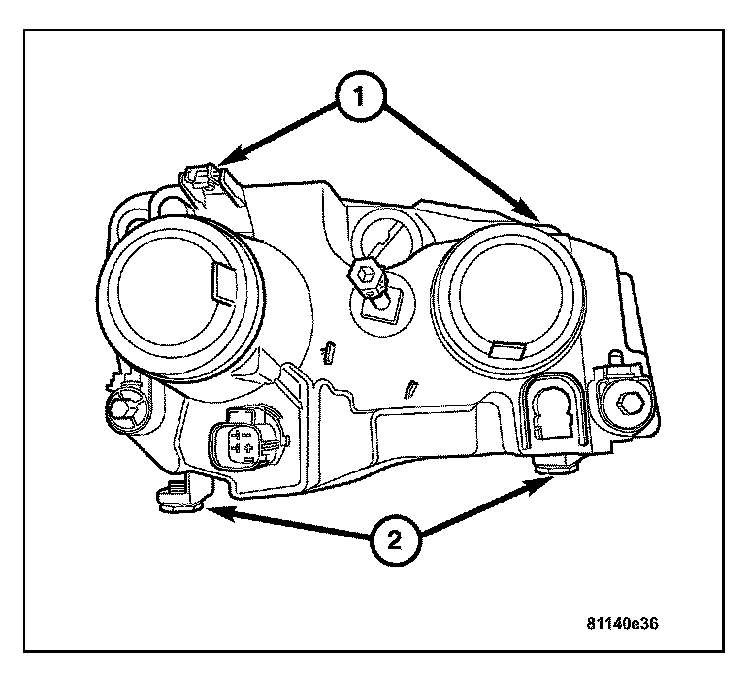

2. Remove the headlamp unit upper retaining bolts (1).
3. Open the access panel in the inner fender well.
4. Remove the lower headlamp unit retaining bolts (2).
5. Lift the headlamp unit from the front fascia and disconnect the harness connector and the front position lamp socket.

INSTALLATION




1. Install the front position lamp socket and the headlamp unit harness connector.
2. Position the headlamp unit into the fascia area.
3. Install the upper retaining bolts (1) finger tight.
4. Install the lower retaining bolts finger tight.
5. Tighten all retaining bolts to torque specification.
6. Close the access panel in the inner fender well.
7. Connect the negative battery cable.
