High Beam Bulb

REMOVAL




1. Disconnect the negative battery cable.
2. Remove the headlamp unit.
3. Remove the headlamp bulb access plug.

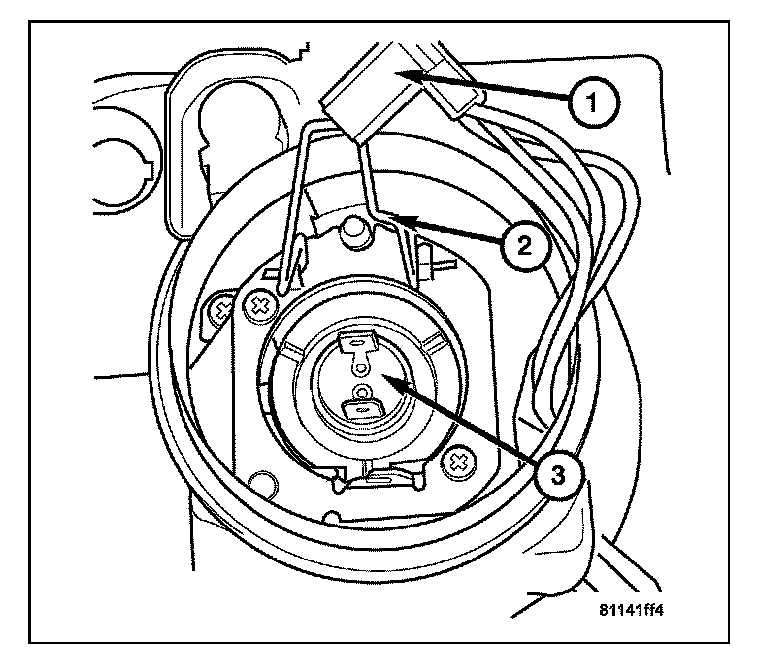

4. Disconnect the headlamp bulb harness connector (1).
5. Disengage the bulb retaining clip (2) and remove the bulb (3) from the headlamp unit.

INSTALLATION

CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result. Do not use bulbs other than those indicated in the Bulb Application table. Damage to lamp and/or Illumination Control Module can result. Do not use fuses, circuit breakers or relays having greater amperage value than indicated on the fuse panel.




1. Install the headlamp bulb (3) into the headlamp unit and engage the retaining clip (2).
2. Connect the headlamp bulb harness connector (1).
3. Install the headlamp bulb access plug.
4. Install the headlamp unit.
5. Connect the negative battery cable.
