Fog/Driving Lamp Bulb: Service and Repair

REMOVAL




1. Disconnect the negative battery cable.
2. Raise and support the vehicle.

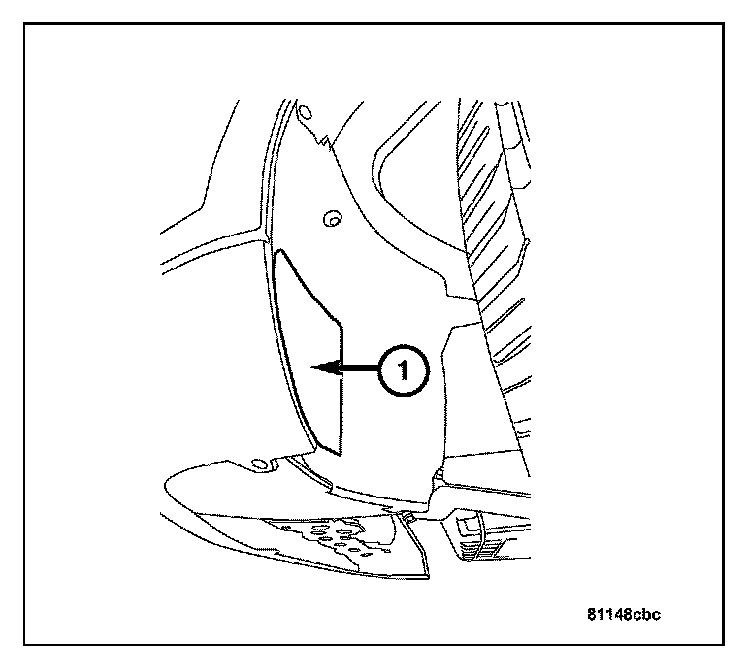

3. Rotate the steering wheel fully in one direction and open the access panel (1) in the front inner fender liner.




4. Remove the fog lamp harness connector (1) from the fog lamp bulb (2).
5. Rotate the fog lamp bulb (2) counterclockwise and remove from the fog lamp unit (3).

INSTALLATION




1. Insert and rotate the fog lamp bulb (2) clockwise into the fog lamp unit (3).
2. Connect the fog lamp harness connector (1) to the fog lamp bulb (2).




3. Close the access panel (1) in the front inner fender liner.
4. Lower the vehicle.
5. Connect the negative battery cable.
