Backup Lamp: Service and Repair

REMOVAL




1. Disconnect the negative battery cable.

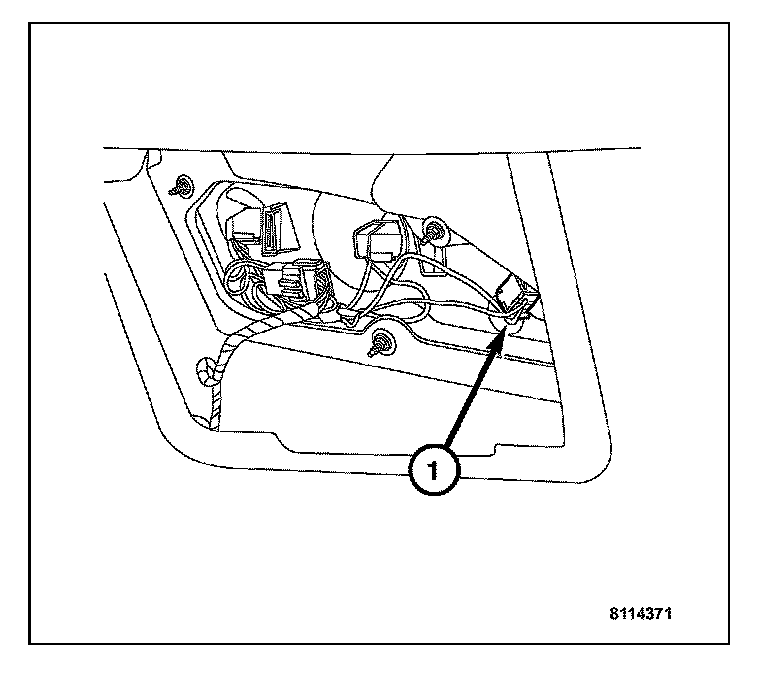

2. Remove the access panel on the interior trim panel.
3. Rotate the backup lamp socket (1) counterclockwise and pull it from the rear lamp unit.
4. Remove the bulb from backup lamp socket.

INSTALLATION

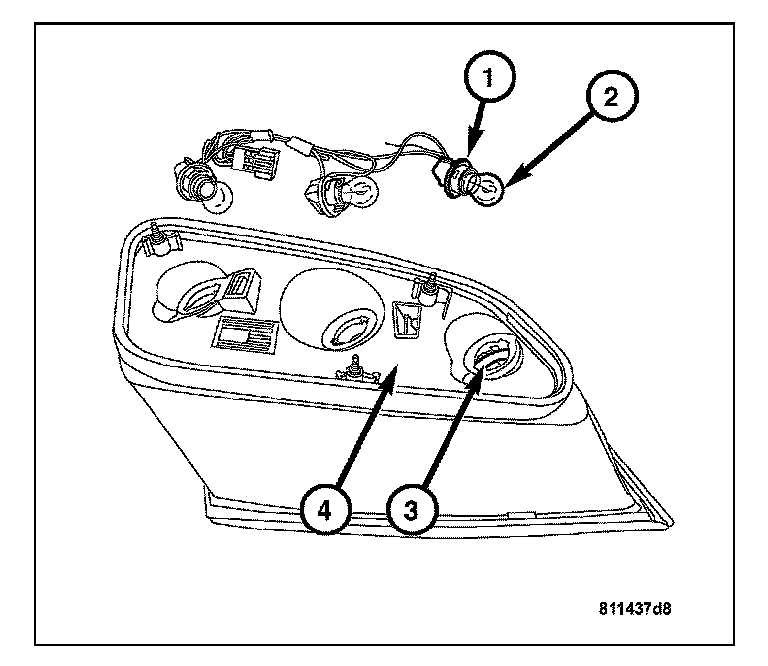

1. Install the bulb (2) into the backup lamp socket (1).
2. Insert the backup lamp socket (1) into the rear lamp unit (4) and rotate clockwise to lock.
3. Install the access panel onto the interior trim panel.
4. Connect the negative battery cable.
