Lower Instrument Panel (Right)

REMOVAL

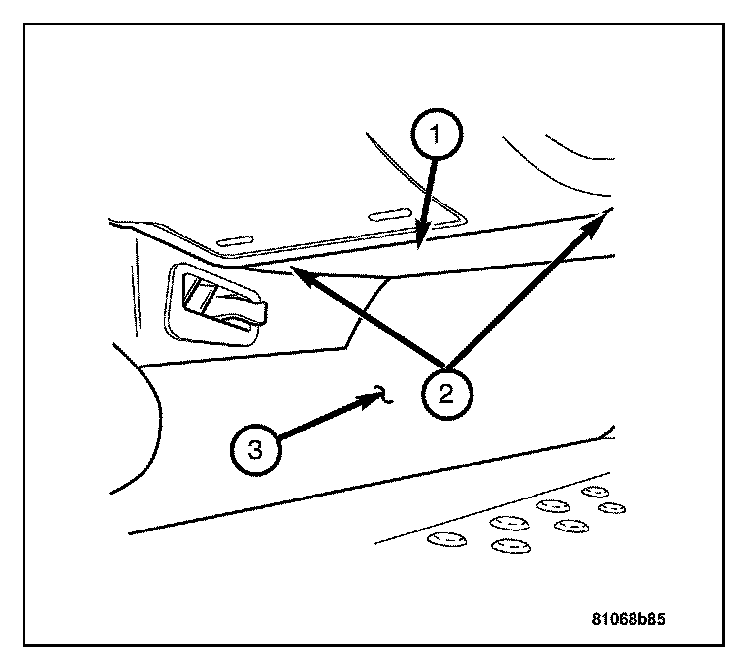

1. Fold back the carpet (3).
2. Remove the screws (2) attaching the lower instrument panel to the glove compartment.
3. Pull the lower instrument panel (1) out.

INSTALLATION




1. Install the lower instrument panel (3) in toward the front.
2. Install the screws attaching the lower instrument panel to the glove compartment.
3. Fold back the carpet.
