Lower I/P Panel Left

REMOVAL




1. Remove the air nozzle and the screw behind the nozzle.

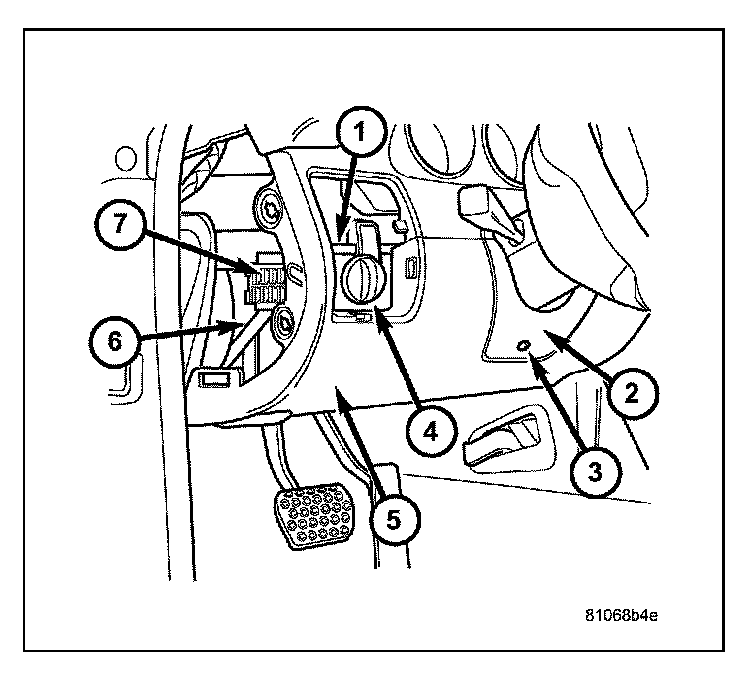

2. Remove the screw (3) attaching the cover under the steering column then remove the cover (2).
3. Remove the fuse panel cover.
4. Remove the screws (1) attaching the lower instrument cover (5) to the illumination control module (4) and the side of the instrument panel to the support bar (6). Remove the screw at the top of lower cover to cluster cover.
5. Remove the illumination control module (7).
6. Pull the lower instrument cover (2) off of the cluster cover.

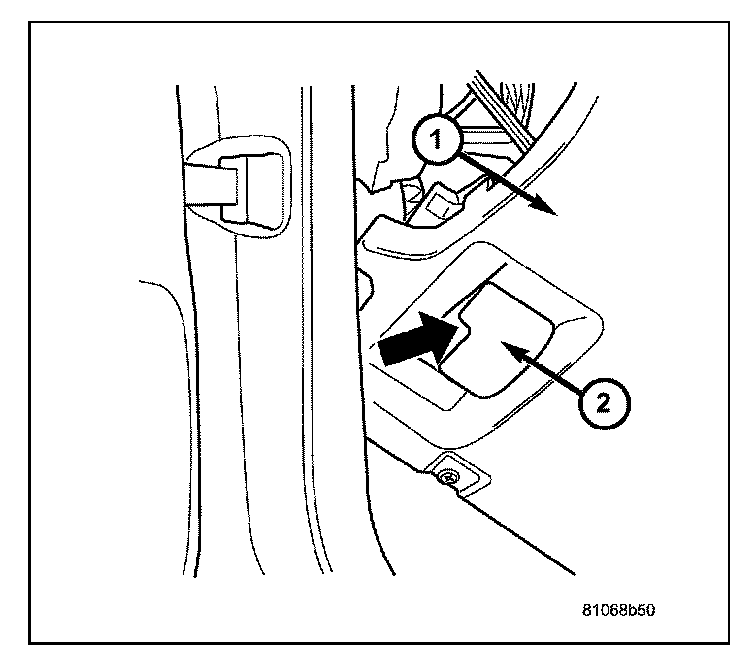

7. Remove the screw (2) attaching the hood latch release handle bezel to the lower instrument panel and then guide the handle through the lower cover (1).

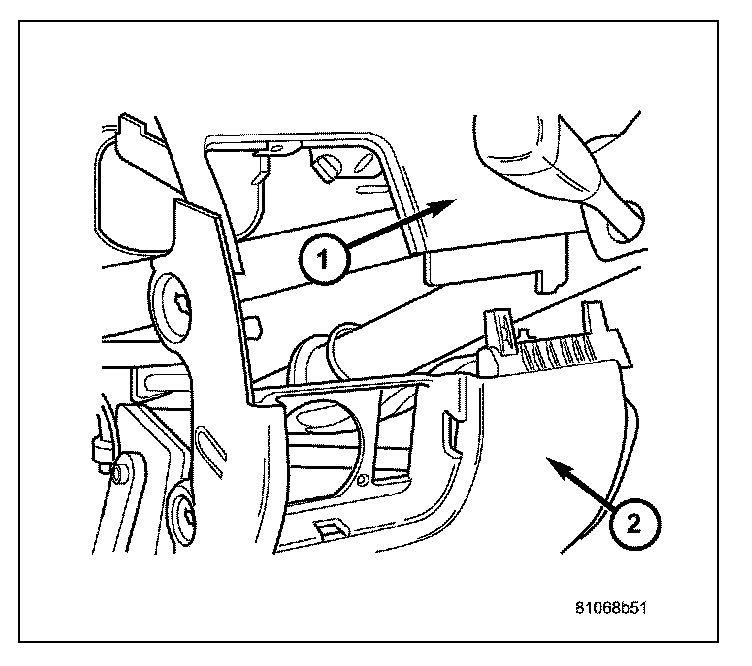

8. Separate the lower panel (2) from the cluster cover (1) and then remove the lower instrument panel.

INSTALLATION

NOTE: When installing, insert the front tabs on the pedal lower instrument panel below the floor covering.




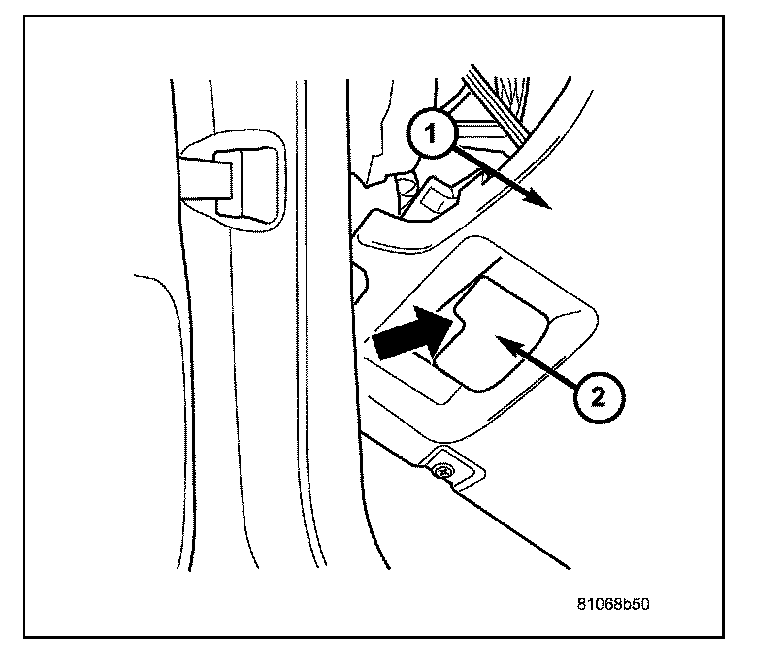

1. Install the lower instrument panel (2) upward into the cluster cover lining up the holes in the lower section and the sides.




2. Guide the hood latch release handle (2) through the lower instrument panel (1) then install the screw attaching it to the lower instrument panel (1).




3. Install the lower instrument panel onto the cluster bezel.
4. Install the screw in the lower instrument panel (5).
5. Install the illumination control module (7).
6. Install the screws attaching the illumination control module (7) to the instrument panel and to the support bar (6) on the side.
7. Install the cover (2) under the steering column. Then install the screw (3).
8. Install the screw behind the air deflector then install the side air deflector.
