Left I/P Panel - RHD

REMOVAL

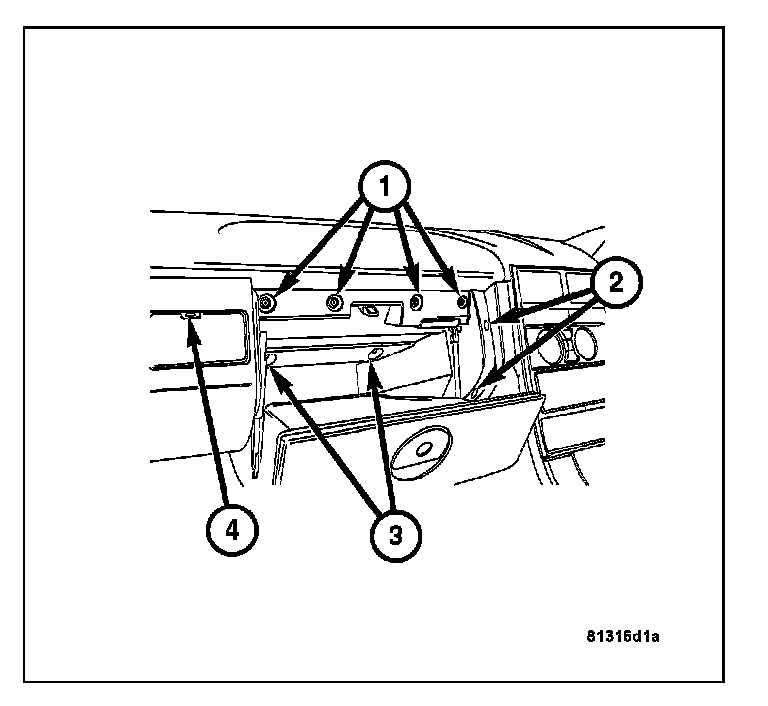

1. Remove the air outlet deflector from the I/P then remove the screw (4) from behind the deflector.
2. Open the glove compartment and disconnect the shock and the limiter strap from the door of the glove compartment.
3. Remove the screws from the hinge of the glove compartment door removing the glove compartment from the vehicle.

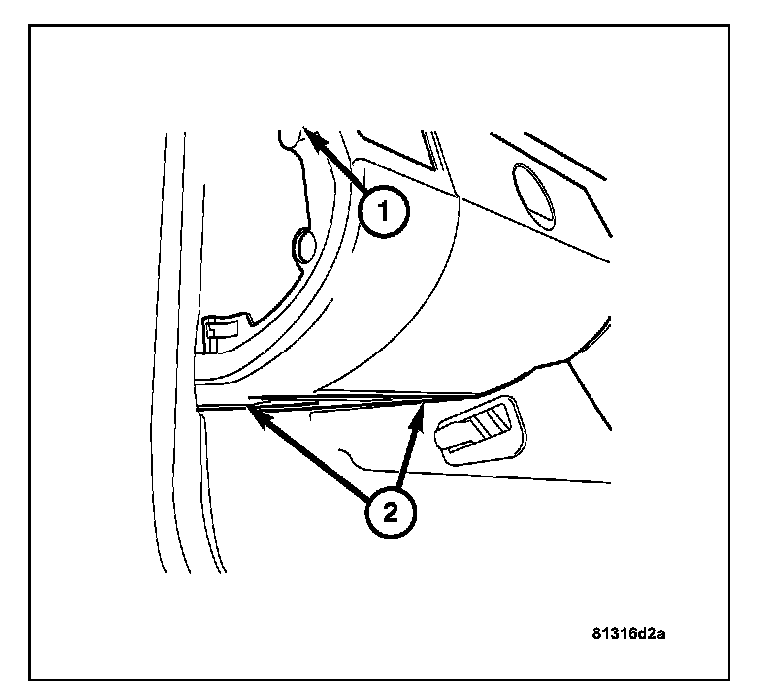

4. Remove the screws (1, 2 and 3).




5. Remove the I/P side cover.

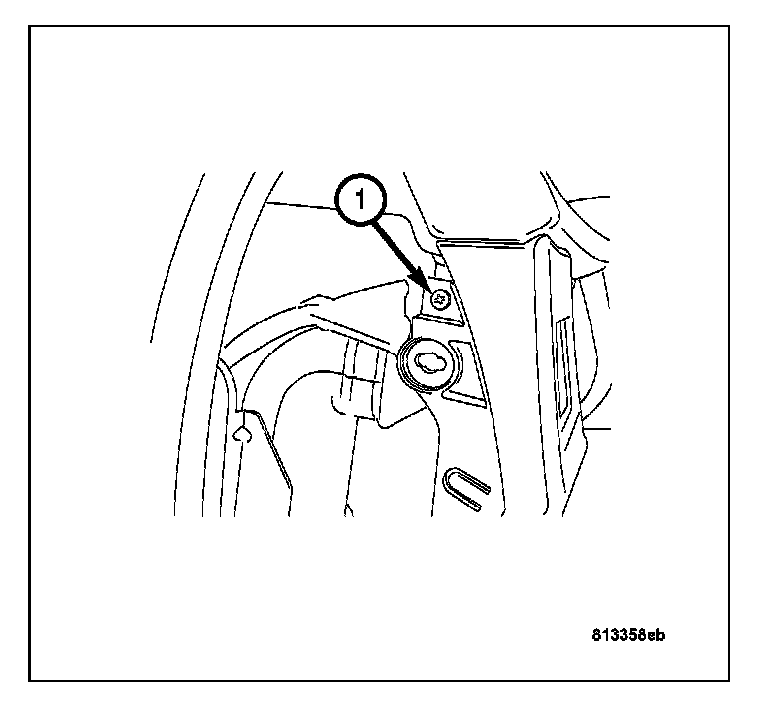

6. Remove the screw (1) attaching the lower I/P to the upper panel.




7. Remove the two screws (2) from the lower panel then remove the lower I/P from the vehicle.
