Timing Chain Tensioner: Service and Repair

TIMING CHAIN TENSIONER
REMOVAL
1. Remove the generator.

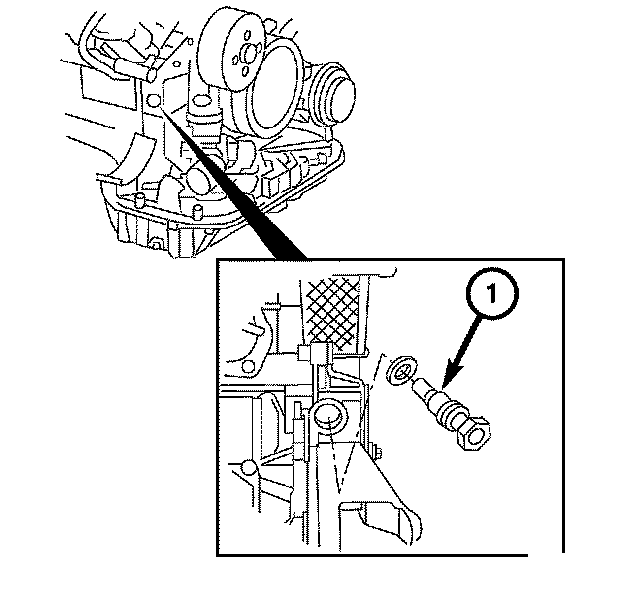

2. Remove the timing chain tensioner (1).

INSTALLATION
1. Install the timing chain tensioner. Tighten the timing chain tensioner to 80 Nm (59 ft. lbs.).
2. Install the generator.
