Oil Pump Drive Chain

OIL PUMP DRIVE CHAIN
REMOVAL





1. Remove the timing chain cover.
2. Remove the oil pump.

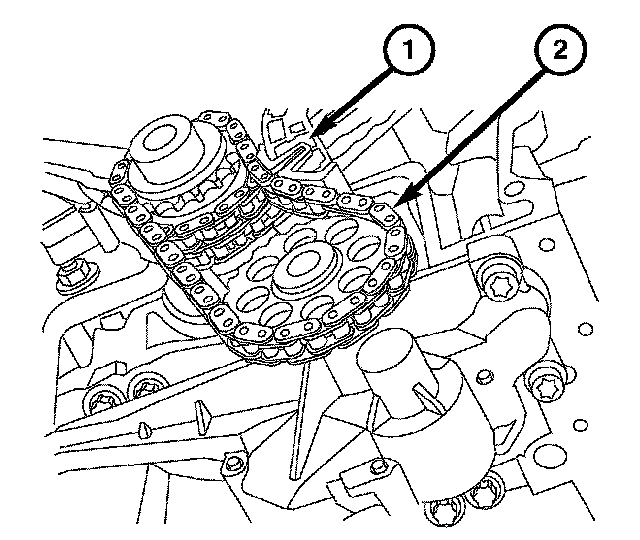

3. Remove the oil pump drive chain (2) and discard. Inspect the oil pump drive chain tensioner spring for wear and replace as necessary

INSTALLATION





1. Check the oil pump drive chain guide for wear and replace as necessary
2. Install the new oil pump drive chain and the oil pump.
3. Install the timing chain cover.
