Crankshaft: Description and Operation

CRANKSHAFT AND MAIN BEARINGS
DESCRIPTION

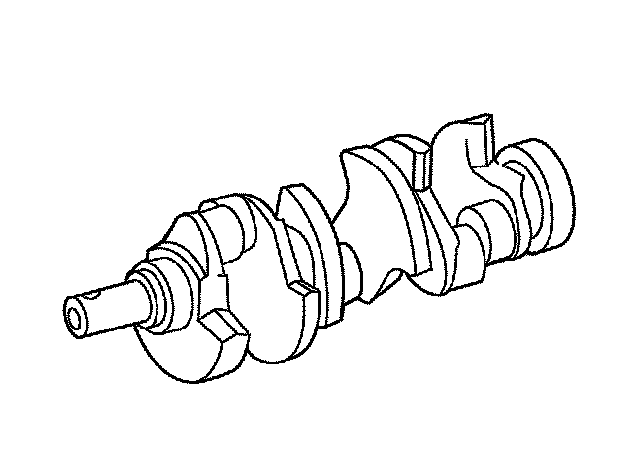

Thirty-degree offset crank pins on the crankshaft provide even, 120-degree, firing intervals for smooth operation. The crankshaft with these split pins has ample strength without adding material between the pins, keeping the engine compact and reducing weight.

OPERATION
The crankshaft transfers force generated by combustion within the cylinder to the flywheel or flexplate.
