Radiator Cooling Fan: Service and Repair

RADIATOR FAN
REMOVAL





1. Disconnect the negative battery cable.

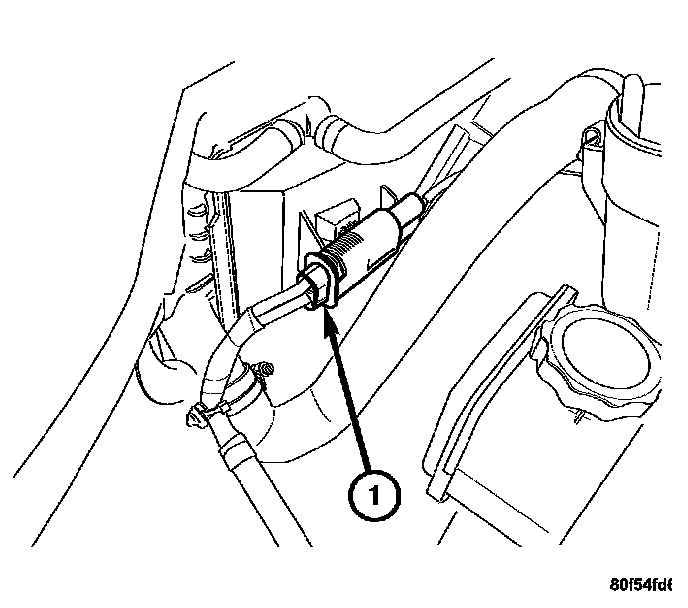

2. Disconnect the radiator fan harness connector (1).

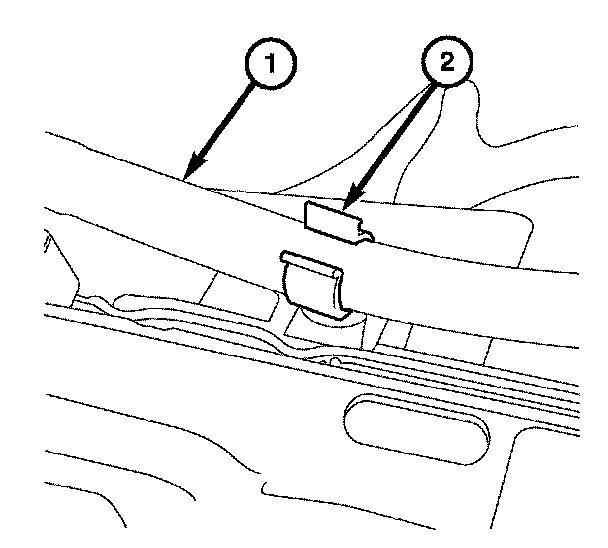

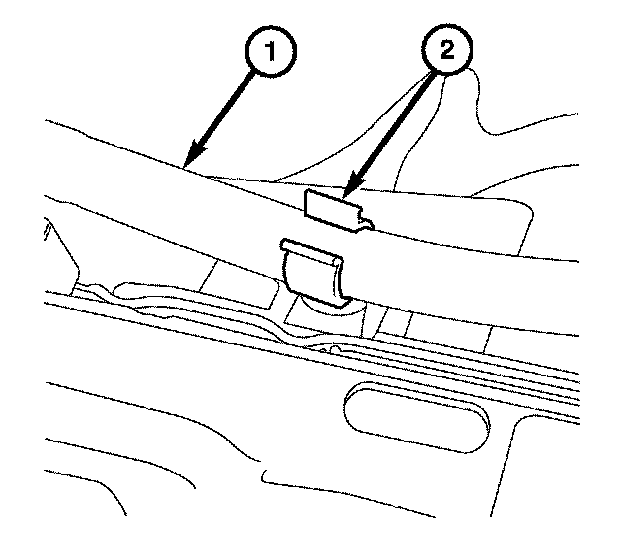

3. Remove the coolant return hose (1) from the mounting bracket (2).

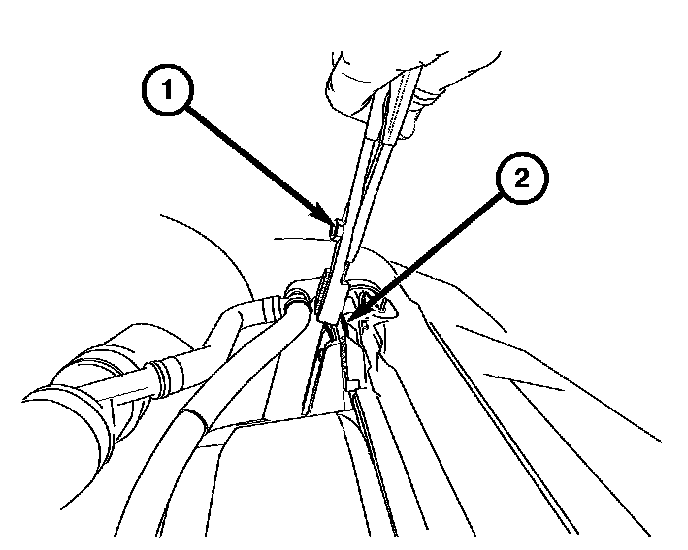

4. Using a suitable tool, grasp the radiator fan hold down clamps (2) and pull up to remove the clamps from the mounting holes.





5. Carefully pry the upper radiator hose and return hoses away from the cooling fan.

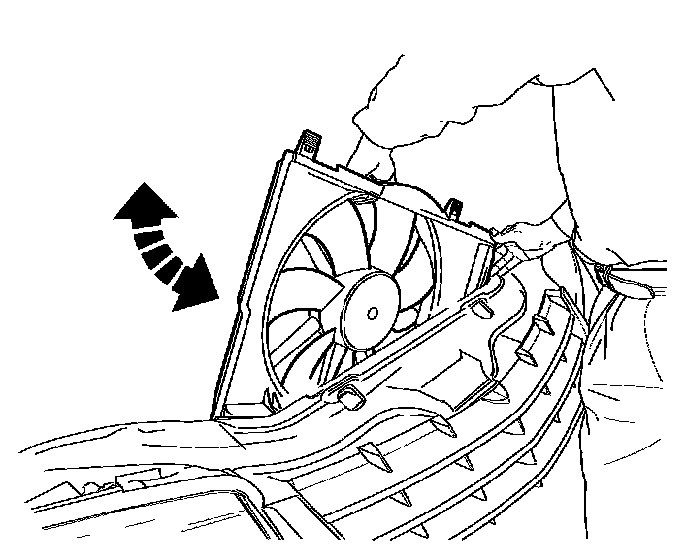

6. Gently lift the radiator fan up and out of the vehicle.

INSTALLATION

Note: Lightly lubricate the two locating studs on the bottom of the radiator fan prior to installation.

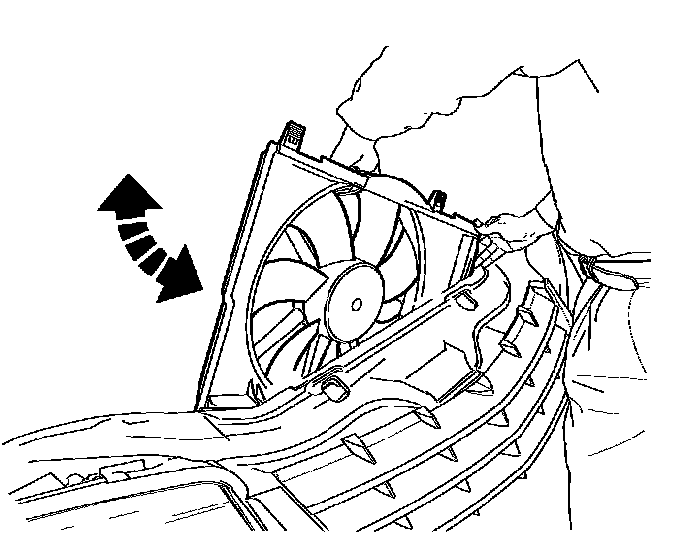

1. Gently lower the radiator fan into the vehicle.
2. Carefully pry the upper radiator hose and return hoses away from the cooling fan.

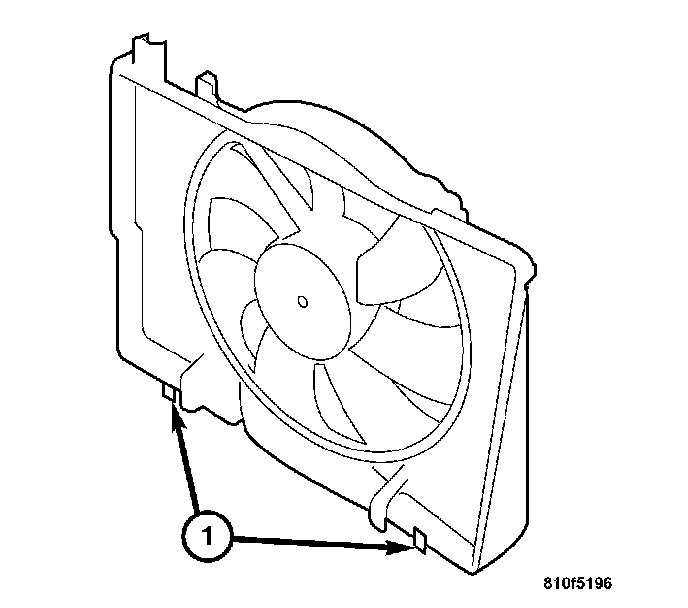

3. Install the radiator fan locating studs (1) into the lower rubber mounts.

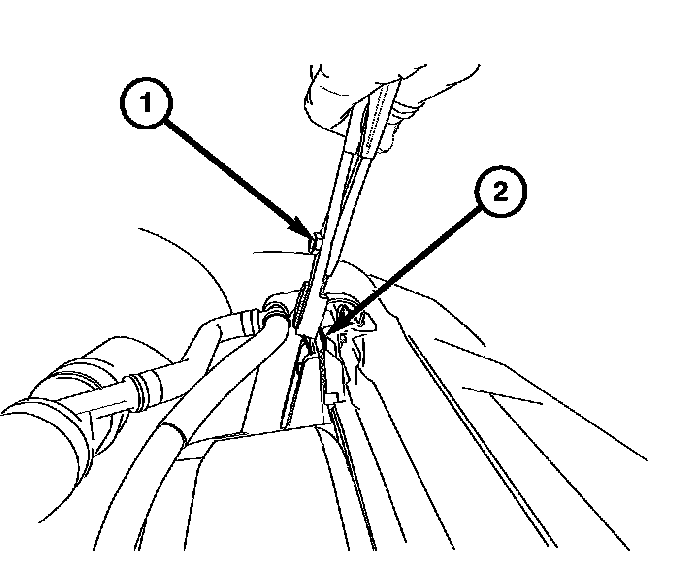

4. Install the radiator fan hold down clamps (1).





5. Route the coolant return hose (1) through the bracket (2) on the radiator fan.

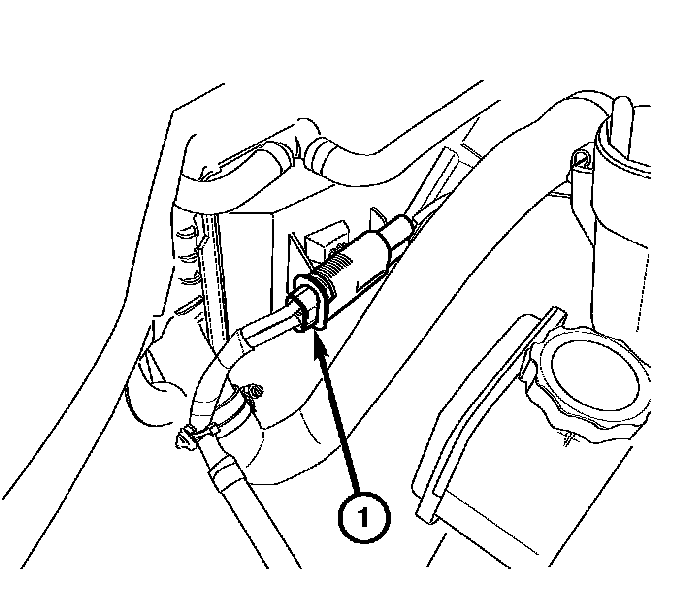

6. Connect the radiator fan harness connector (1).
7. Connect the negative battery cable.
