Relay Module
Relay Module
Relay Control Module A:

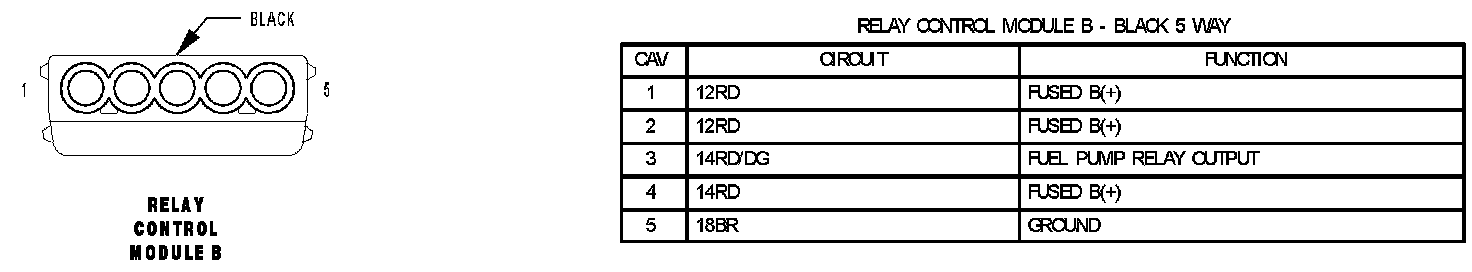

Relay Control Module B:

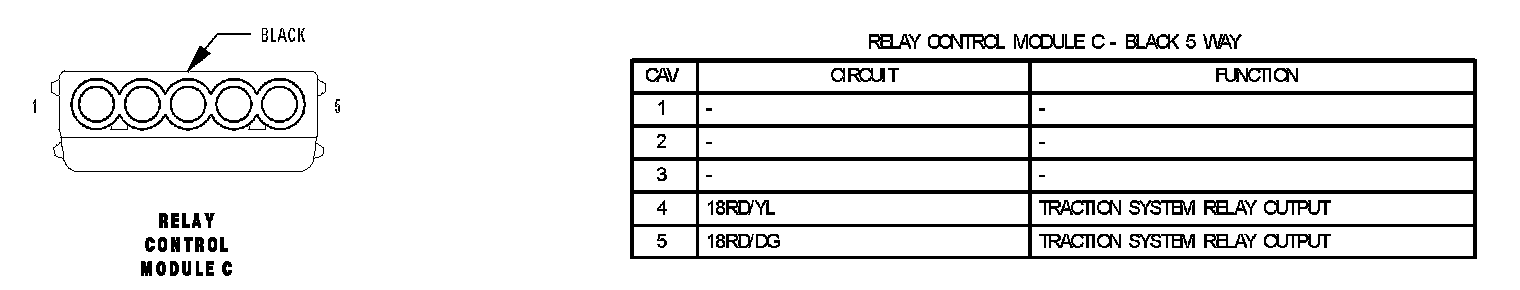

Relay Control Module C:
Relay Control Module D:

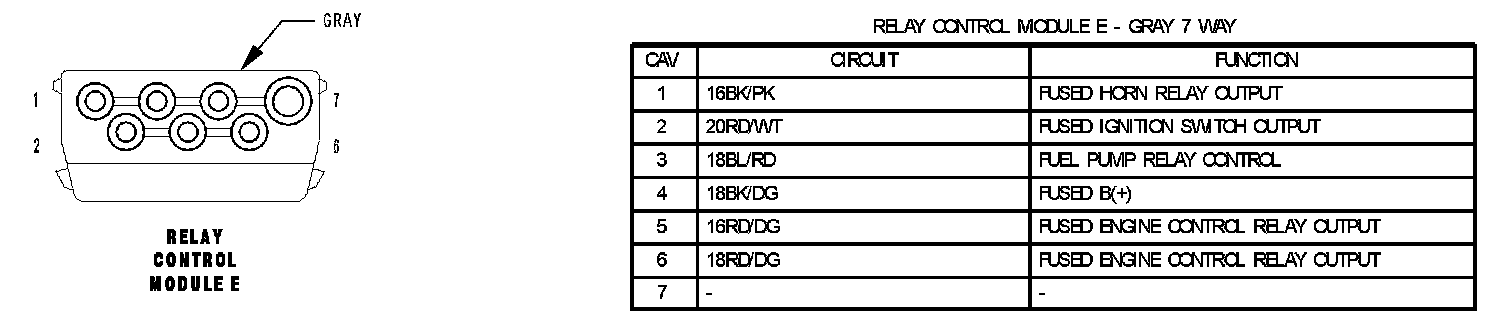

Relay Control Module E:
