Control Module, A/T

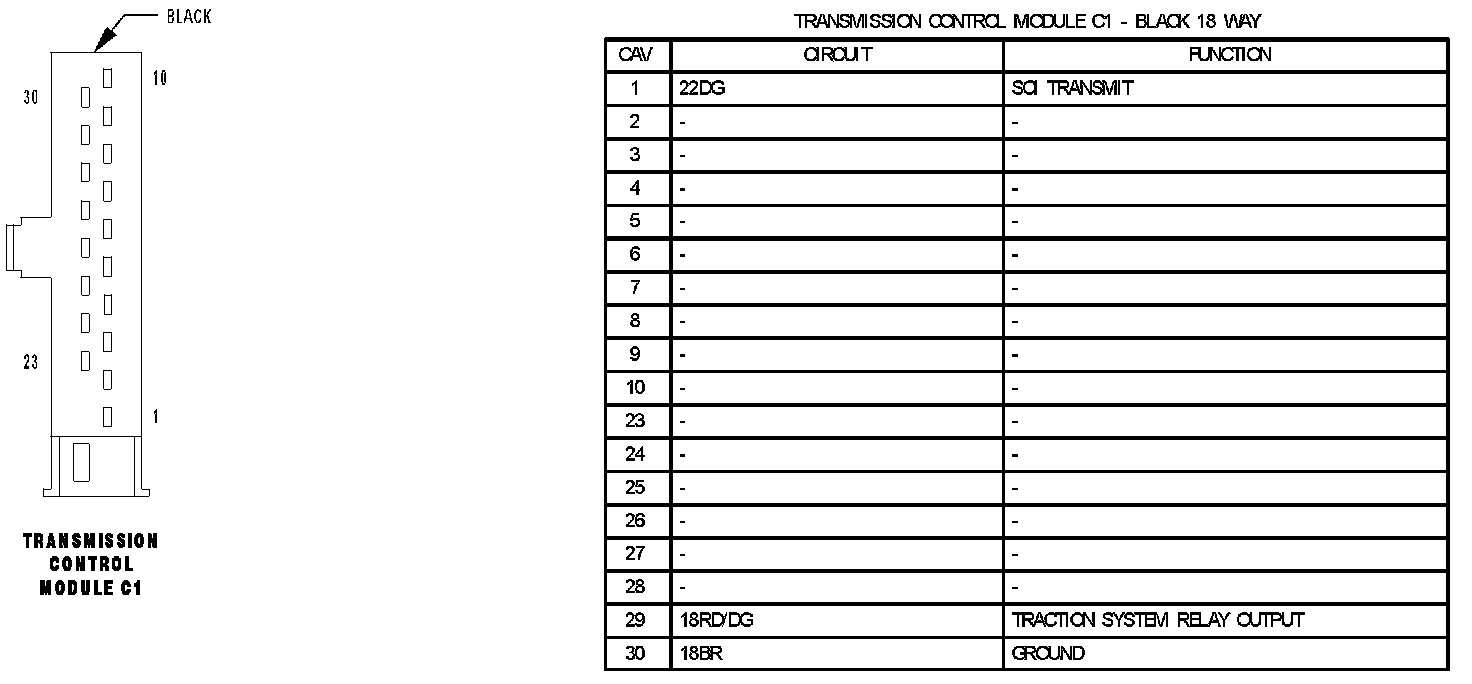

Transmission Control Module C1:

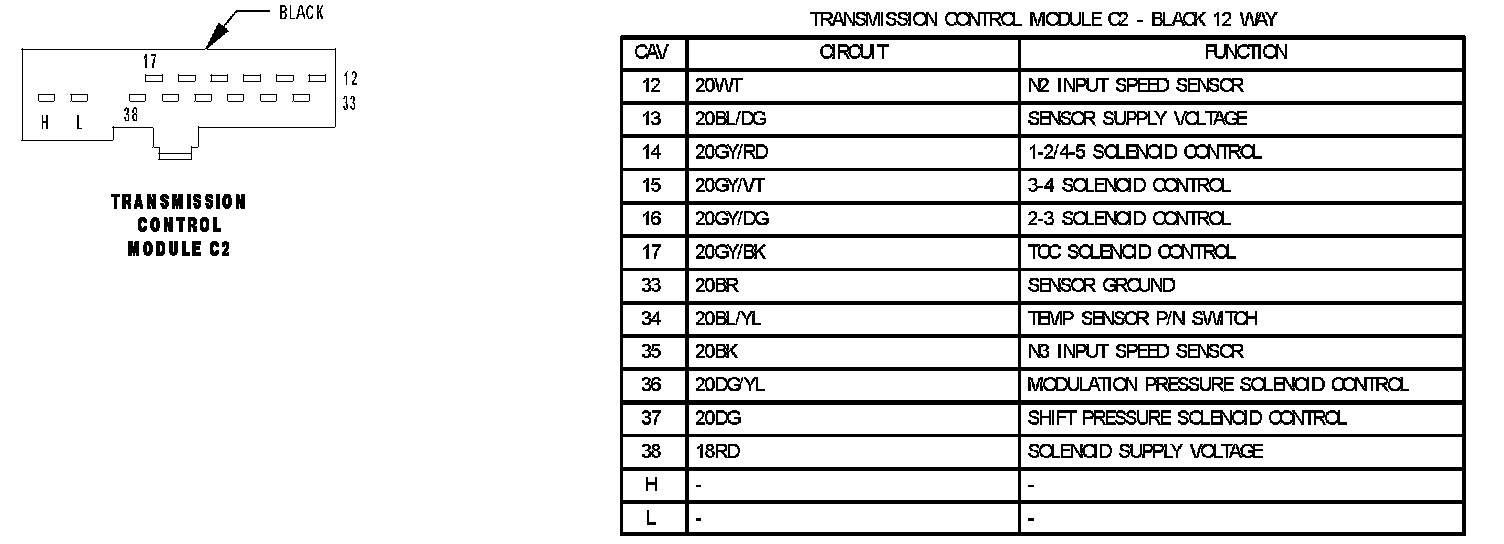

Transmission Control Module C2:

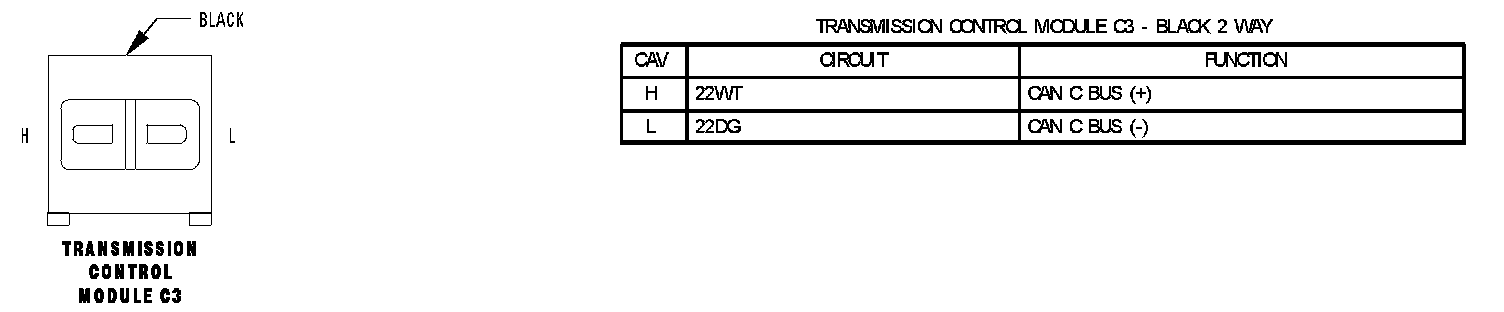

Transmission Control Module C3:
