Passenger Power Seat Horizontal Motor Inoperative

PASSENGER POWER SEAT HORIZONTAL MOTOR INOPERATIVE

Passenger Power Seat Forizontal Motor Inoperative:

POSSIBLE CAUSES
- Passenger power seat horizontal motor
- Passenger power seat horizontal motor circuit
- Passenger power seat switch

DIAGNOSTIC TEST

1. TEST THE PASSENGER POWER SEAT HORIZONTAL MOTOR




Turn the ignition off.
Disconnect the Passenger Power Seat Horizontal Motor connector.

NOTE: Check connectors - Clean/repair as necessary.

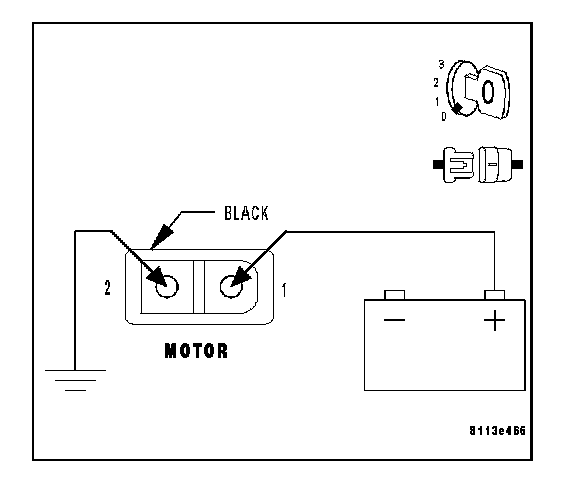

Connect a jumper wire from B(+) to one cavity of the Passenger Power Seat Horizontal Motor connector (motor side).
Connect a second jumper wire from ground to the other cavity of the Passenger Power Seat Horizontal Motor connector (motor side).
Note seat movement, if no seat movement is noted, reverse the jumper wires at the Horizontal Motor connector.

Q: Did the Passenger Power Seat move backward or forward?

YES: Replace the Passenger Power Seat Switch. Perform BODY VERIFICATION TEST. Body Verification Test
NO: Replace the Passenger Power Seat Horizontal Motor. Perform BODY VERIFICATION TEST. Body Verification Test
