Convertible Top Control Module: Diagrams

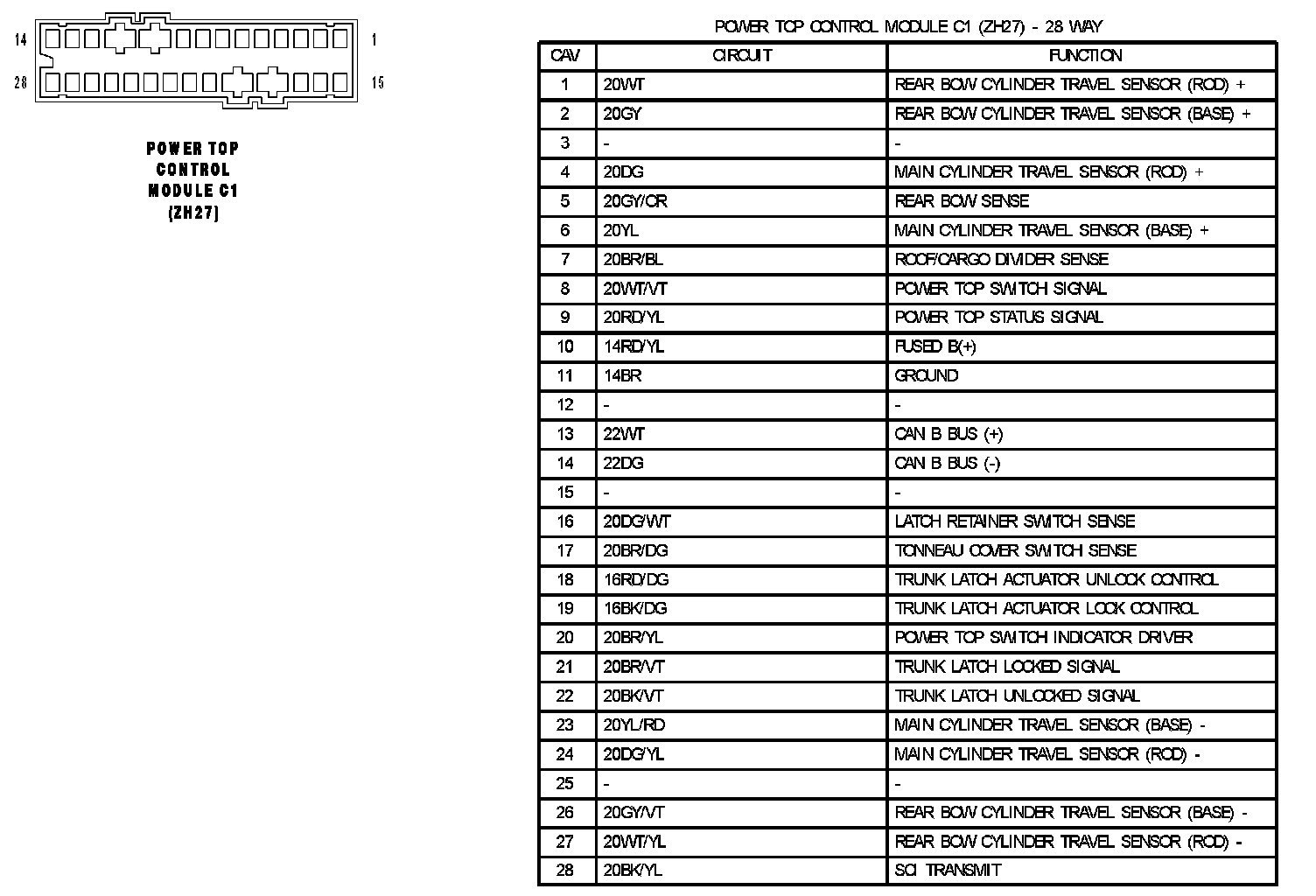

Power Top Control Module C1 (ZH27):

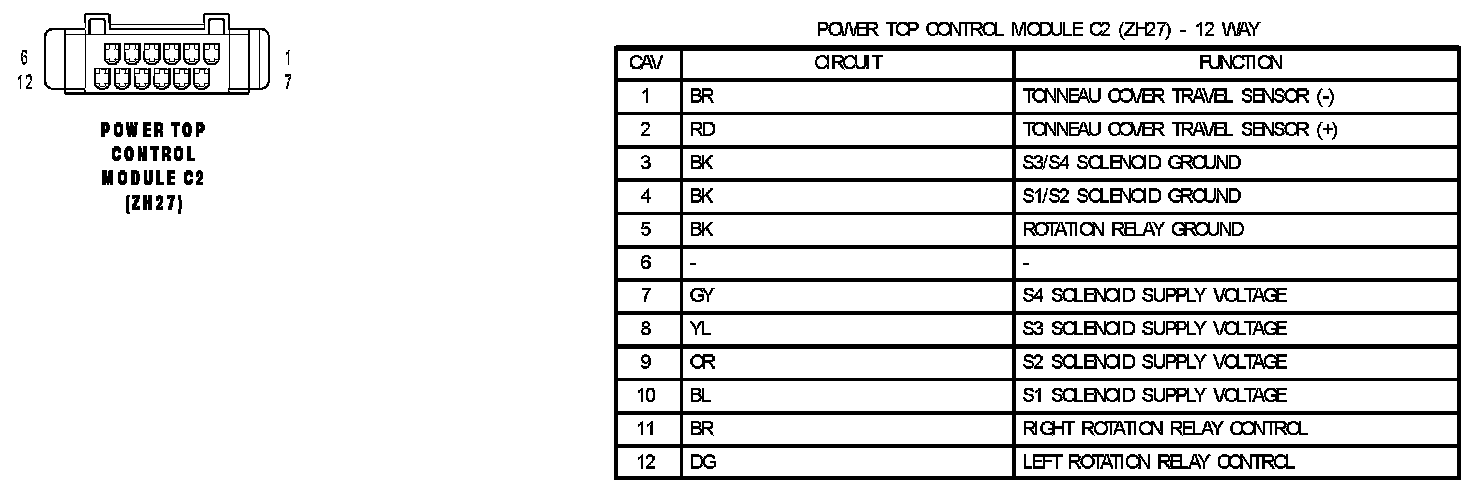

Power Top Control Module C2 (ZH27):
