Seat Temperature Control Module: Service and Repair

REMOVAL

WARNING: REFER TO RESTRAINTS BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

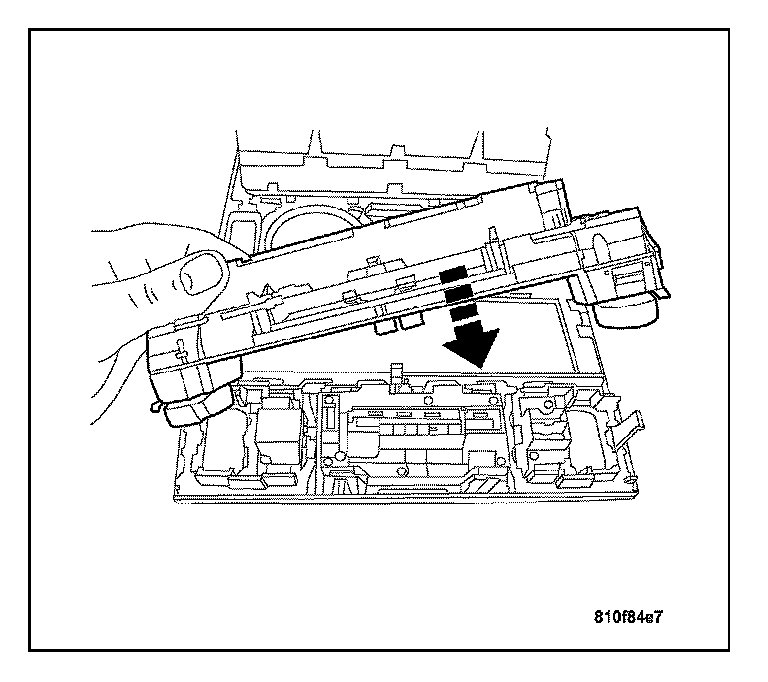

The Heated Seat Control Module (1) is integrated within the Heated Seat Switch (2) assembly. For complete Heated Seat Control Module removal procedures, see Heated Seat Switch removal.

INSTALLATION




The Heated Seat Control Module is integrated within the Heated Seat Switch assembly. For complete Heated Seat Control Module installation procedures, see Heated Seat Switch installation.
